Refer to
Figure 5
to install the user-supplied sample, rinse water and drain tubing. Use ¼-inch OD
tubing. Use a clean water source, such as tap water, for the rinse water. Make sure that the vent
tubing connects to a drain for possible overflow conditions. Make sure that the drain on the vent
tubing goes above the sample drain.

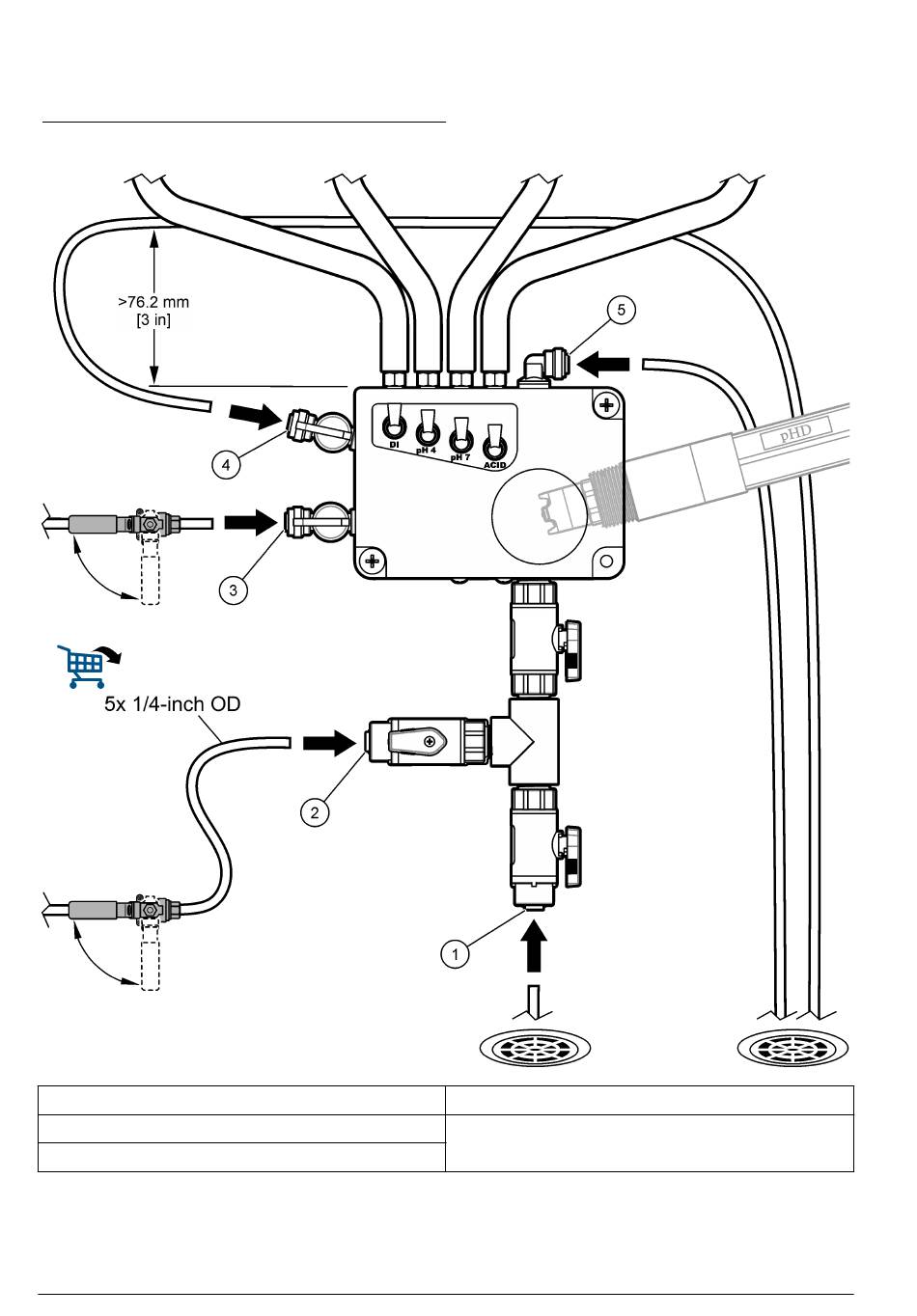

Figure 5 Sample, rinse and drain connections
1 Maintenance drain (to process drain or container)
2 Sample inlet, 413 kPa (60 psi) maximum
3 Rinse water inlet, 413 kPa (60 psi) maximum
12 English
4 Vent/overflow drain
5 Sample drain
