ATTACH THE FRONT WHEEL

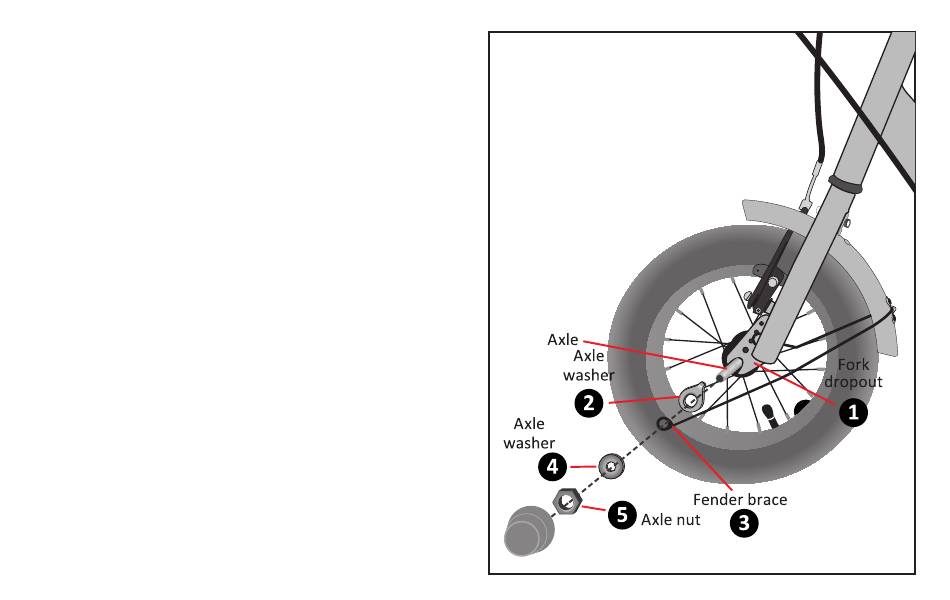

Position the front wheel between the front fork legs with the
❶
axle resting inside the fork drop outs. Important! Be sure the
wheel is as centered as possible between the fork legs.
Figure 2.6
Attach the Fender brace on the axle .
❷
❸ Attach the two axle nuts on the axle. Tighten one nut part way,
then tighten the other nut. Repeat until both sides are tightened
securely. Be sure that the wheel is centered between the fork legs.
❹ If the wheel is off center, loosen the axle nut on the side that has
a smaller gap between tire and fork leg and use your hand to
push the wheel to a centered position; hold the wheel with one
hand and tighten the axle nut and check again. Repeat if needed
to be sure the wheel is centered and securely tightened.
Figure 2.6
43
Water proof plastic cap
3
Figure 2.6
