Attaching identification labels
to USB cables

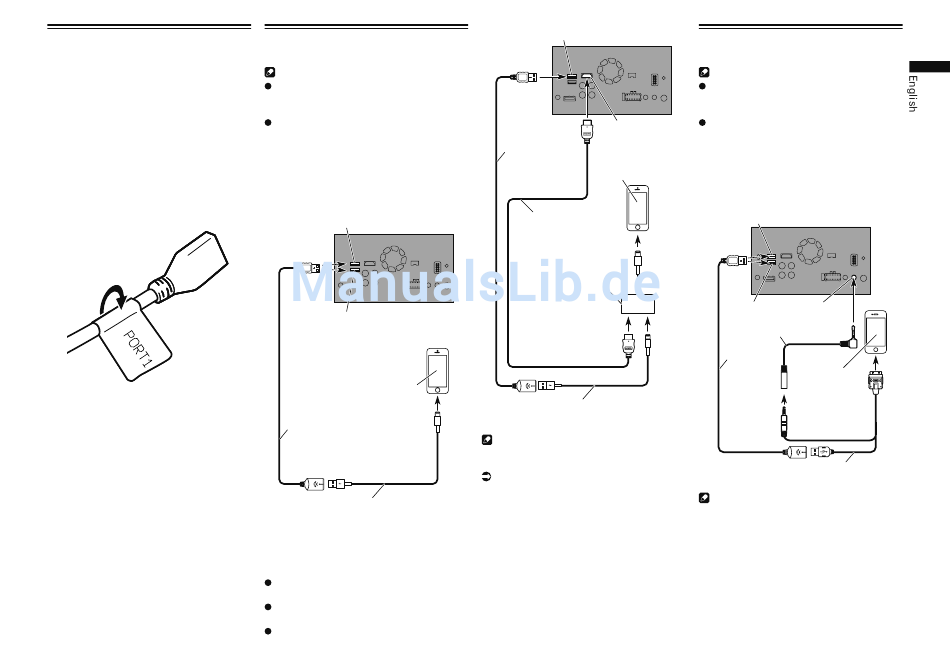

Attach identification labels to USB cables
before installing this product in a vehicle.
1 Connect USB cables to the USB
port 1 and 2 on the rear of this
product.
2 Attach the identification labels
corresponding to each port to the
USB cables as illustrated below.
Attach the "PORT 1" label to the USB cable
connected to the USB port 1.
Attach the "PORT 2" label to the USB cable
connected to the USB port 2.
Connecting an iPhone with
Lightning connector
Notes
For details on how to connect an external
device using a separately sold cable,
refer to the manual for the cable.
For details concerning the connection,
operations and compatibility of iPhone,
refer to Operation Manual.
■ Connecting via the USB port
The USB interface cable for iPod / iPhone
(CD-IU52) (sold separately) is required for
the connection.
USB port 1
This product
USB port 2
iPhone with
Lightning connector
USB cable
1.5 m
USB interface cable for iPod / iPhone
(CD-IU52) (sold separately)
■ Connecting via the HDMI port
The following cables are required for the
connection.
HDMI interface cable for iPod / iPhone
(CD-IH202) (sold separately)
USB interface cable for iPod / iPhone
(CD-IU52) (sold separately)
Lightning Digital AV Adapter (Apple Inc.
products) (sold separately)
USB port 1
This product
HDMI port
USB cable
iPhone with
1.5 m Lightning connector
High Speed HDMI Cable
®
(Type A - A)
(supplied with CD-IH202)
Lightning Digital AV Adapter
(Apple Inc. products)
(sold separately)
USB interface cable for iPod / iPhone
(CD-IU52) (sold separately)
Note
When you connect the High Speed HDMI
Cable, use the lock tie to fix it securely.
For details, refer to Securing the High
Speed HDMI Cable on page 6.
®
Connecting an iPhone with
30-pin connector
Notes
For details on how to connect an external
device using a separately sold cable,
refer to the manual for the cable.
For details concerning the connection,
operations and compatibility of iPhone,
refer to Operation Manual.
■ Connecting via the AUX input
The USB interface cable for iPod / iPhone
(CD-IU201V) (sold separately) is required for
the connection.
USB port 1
This product
USB port 2 AUX input
Mini-jack extension cable
(supplied with CD-IU201V)
USB cable
1.5 m
iPhone with
30-pin connector
®
USB interface cable for iPod / iPhone
(CD-IU201V) (sold separately)
Note
Connect the USB cable to USB port 1 when
using "aha" as the source.
