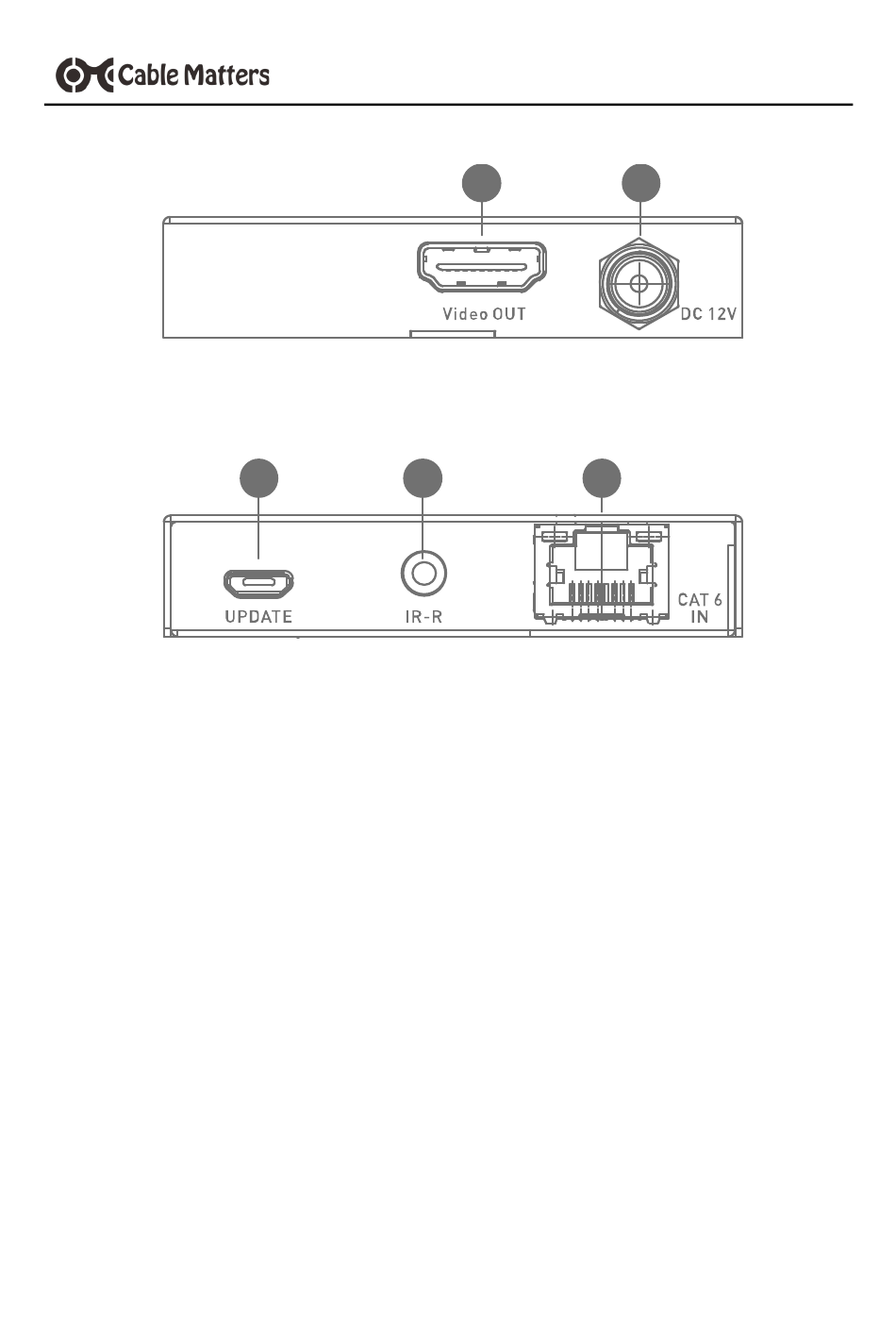

3.3 Receiver Panel Connections
1) Video OUT: Connect to the remote extended display with HDMI
2) DC 12V: Threaded locking barrel port for power adapter
1. UPDATE: Micro-USB port for firmware update (if needed)
2. IR-R: 3.5mm port for IR receiver cord
3. CAT 6 IN: RJ45 port for Cat 6 cable

3.4 Connection Instructions

1) Power off all the source equipment and output displays
2) Connect the AC power adapters to the Transceiver and Receiver and secure the locking
ring
3) Connect the HDMI cables to the Video IN, Video OUT and Video LOCAL (optional)
4) Connect the IR transmitter and receiver cables (Page 5)
5) Plug the Transmitter and Receiver adapters into an AC outlet (look for a green LED)
6) Power on all the equipment and check for a video signal on the extended remote display
7) Select an EDID Mode (Page 5) if there is no video signal
Note:
Test all the equipment and cables before installing permanently
1 2
www.cablematters.com
18Gbps Audio/Video Extender over Cat 6
