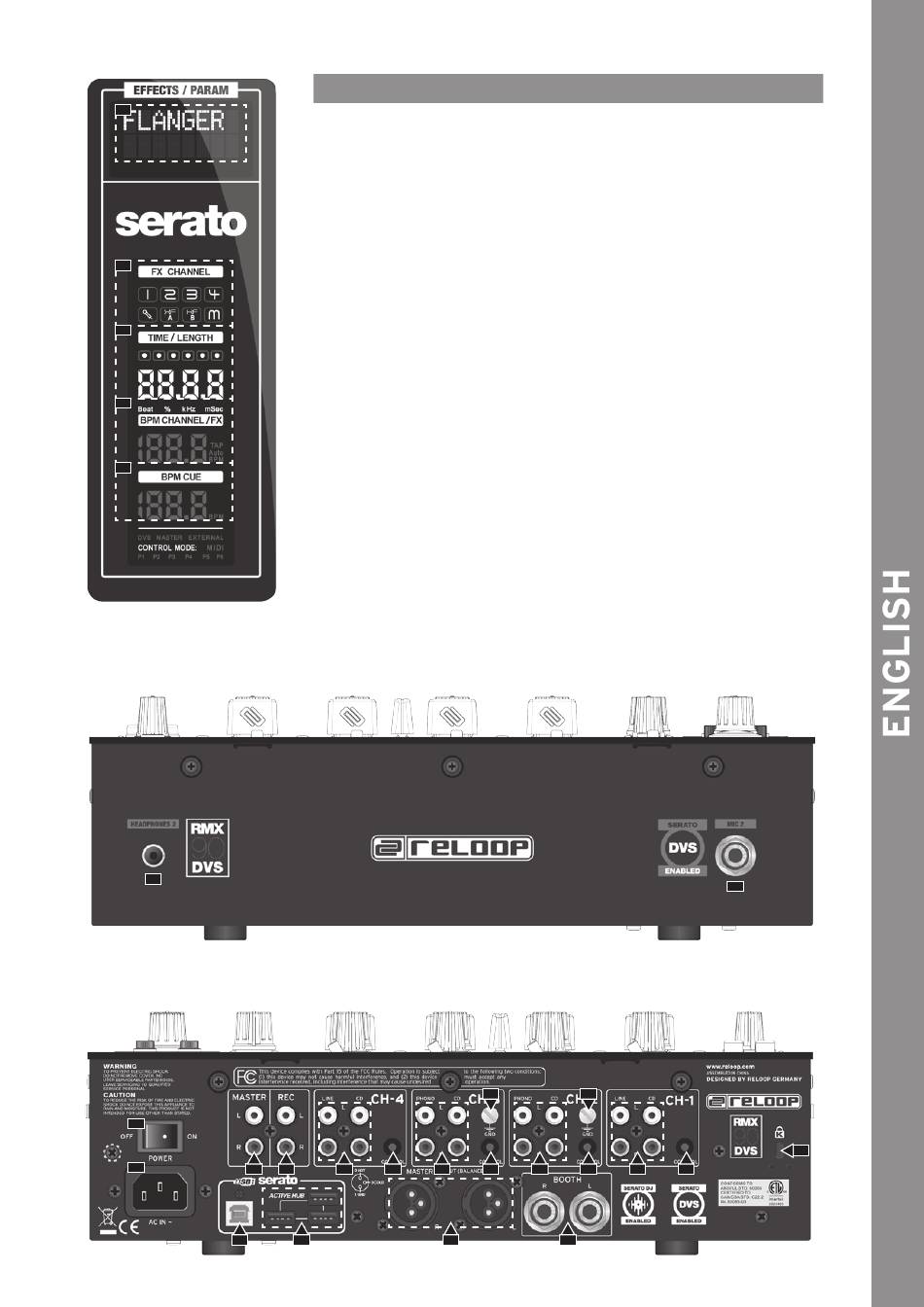

1.1.2 DISPLAY
38
39
40
41
42
1.1.3 FRONT-PANEL
46
46
1.1.4 REAR-PANEL
58
48
49
56a
1.2 DESIGNATIONS
1.2.1
SIGNAL CHANNELS
1.
....... Signal Input Select
2.
....... Gain Dial
3.
....... 3-Band Equalizer
4.
....... LEDs
5.
....... Filter
6.
....... Cue Button
7.
....... Linefader
8.
....... Crossfader Assign Switch
9.
....... Crossfader
10. ....... Crossfader Curve Dial
11.
....... Crossfader Start Switch
12. ....... Linefader Curve Dial
13. ....... Linefader-Start Switch
14. ....... EQ Curve Switch
1.2.2
MIC CHANNEL
15. ....... Mic 1/AUX Level
16. ....... Level Control LED for DJ Mic 1/AUX
17. ....... Mic 2 Level
18. ....... Level Control LED for DJ Mic
19. ....... 2-Band Equalizer for DJ Mic
20. ....... Mic Switch
1.2.3
HEADPHONES SECTION
21. ....... Mono/Stereo Split Select Switch
22. ....... Cue EQ (Headphones Output Equalizer)
23. ....... Cue Mix (Cue/Master Signal Ratio)
24 ....... Cue Level
(Volume Control Headphones Output)
1.2.4
MASTER SECTION
25. ....... Master Volume, adjusts Master Volume
26. ....... LED for Master Signal
27. ....... Mono/Stereo Switch for Booth Output
28. ....... Balance Dial for Master Signal
29. ....... Booth Volume
52
53
55
53
56b
50
1.2.5
FX SECTION
30. ....... BeatFX Select Switch
31. ....... FX Channel Select Switch
32. ....... Time Encoder
33. ....... Time Bar Buttons
34. ....... Tap Button
35. ....... Level/Depth Dial
36. ....... Effect ON/OFF Switch
37. ....... Display
1.2.6
DISPLAY
38. ....... Effect Display
39. ....... FX Channel Display
40. ....... Effect Bar Resolution
41. ....... Effect BPM Indicator
42. ....... BPM CUE Indicator
1.2.7
CONNECTIONS
43. ....... AUX
44. ....... MIC 1
45. ....... Headphones Output 1
46. ....... Headphones Output 2
47. ....... MIC 2
48. ....... Power Connection
49. ....... Master Out RCA
50. ....... Master Out Balanced
51. ....... Booth Out
52. ....... Record Out
53. ....... Channel Inputs
54. ....... GND
55. ....... Fader-Start Connection
56a. ..... USB-B Port
56b. ...... USB HUB
57. ....... Kensington
58. ....... ON/OFF Switch
54
54
55
53
55
53
51
47
47
57
55
15
