Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions for both indoor and outdoor use while delivering an exceptional eco-friendly experience for our homes and our world.
The user manual contains instructions and notes on the operation and use of this unit. BLUETTI recommends that you use genuine accessories from BLUETTI. BLUETTI shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the BLUETTI.
Safety Instructions Failure to follow these guidelines may cause damage to your unit and injury to yourself or others. Keep this unit away from fire, humidity and dust. Make sure the place where you are using the unit is well ventilated and spacious. DO NOT place the unit on an unstable or tilted surface.
What's In The Box Standard Packaging Power Station AC Adapter Car Charging Cable Solar Charging Cable User Manual Warranty Card * AC Adapter: 120cm/47in. Car Charging Cable: 72cm/28in. Cigarette lighter port to DC7909. Solar Charging Cable: 150cm/59in. MC4 to DC7909. Note: Package details are subject to change without prior notice.

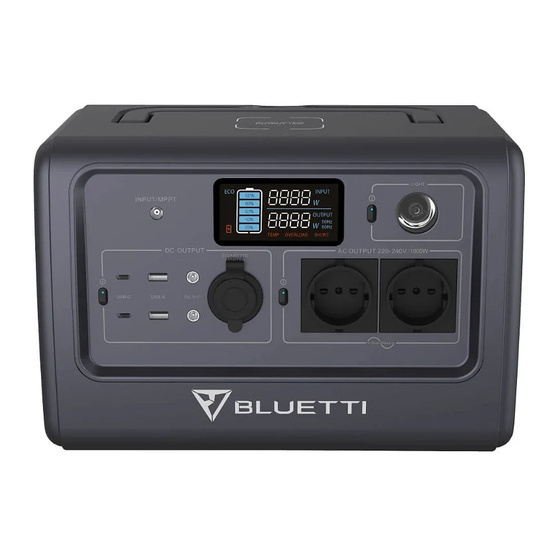

Product Overview Diagram 1. Charging Port 7. USB-C Port 2. LCD Screen 8. USB-A Port 3. Wireless Charging Pad 9. DC5521 Port 4. LED Lamp Button 10. Cigarette Lighter Port 5. LED Lamp 11. AC Power Button 6. DC Power Button 12.
Specifications EB70 General Battery Capacity 716Wh Cell Type LiFePO4 Dimensions (L*W*H) 12.6*8.5*8.7IN/320*216*221MM Weight 21.4LB/9.7KG Discharging Temperature -4-104°F/-20-40°C Charging Temperature 32-104°F/0-40°C Working Humidity 10-90% AC Output 120V 800W Power 220-240V 1000W Surge 1400W Frequency 50-60Hz DC Output Voltage 12VDC Cigarette Lighter Port *1...
Operation LCD Screen a: ECO Mode e: Temperature Anomaly Alert b: Battery Capacity f: Output Power c: Input Power g: Overload Alert d: Low-battery Alert h: Short-circuit Alert Powering On/Off Powering on: Press the AC/DC Power Button to start up corresponding output. Green light(on the button) LCD Display *The LCD screen is on for about 30-60 seconds.
: Under 'Setting Mode', press the AC power button to switch. Charging AC Charging Simply plug the EB70 into a standard wall outlet and start charging. AC Outlet AC Adapter When on this mode, the AC output will automatically turn off after 4-hour low (≤10W) or no load to save power.
Seite 11
Solar Charging Cable Car Charging Connect the EB70 directly to the vehicle plug-in cigarette lighter port via the car charging cable. Car Charging Cable OCV: Open circuit voltage. The maximum voltage that the solar panel can produce with no load on it.
Generator Charging Connect the AC adapter input plug to the generator while the output plug goes to the charging port of EB70. Discharging 10Wh Television Smart Phone LED Light Bulb Around 7-8 Hrs Around 50-60 Times Around 20-30 Hrs 10Wh...
A: Yes. Press the DC Power Button to enable the wireless charging. Q: Can it charge and discharge at the same time? A: Yes. It supports pass-through charging. EB70 comes with the premium LiFePO4 battery and proprietary Battery Management System to ensure that it can charge and discharge at the same time.
Technical Support Should you require any further assistance, please do not hesitate to contact BLUETTI service team. BLUETTI POWER INC Web: https://www.bluettipower.com/ Tel: 833-988-3663 / 702-463-4792 Mail: service@bluettipower.com Add: 6185 S Valley View Blvd Ste D. Las Vegas, NV 89118.
Innen- und Außenbereich treu zu bleiben und gleichzeitig ein außergewöhnliches und umweltfreundliches Erlebnis für Ihr Zuhause und unsere Welt zu bieten. Aus diesem Grund ist BLUETTI in über 70 Ländern präsent und genießt das Vertrauen von Millionen von Kunden auf der ganzen Welt.
Seite 17
Inhalt Bevor Sie beginnen Sicherheitshinweise Lieferumfang Standard Set Produktübersicht Schaubild Spezifikationen Bedienung LCD-Display Ein-/Ausschalten Modi Einstellung Laden Entladen Anhang FAQs (Häufig gestellte Fragen) Technischer Support...
Geräts. BLUETTI empfiehlt die Verwendung von Originalzubehör von BLUETTI. BLUETTI haftet nicht für Schäden oder Kosten, die sich aus der Verwendung von anderen Teilen als den Originalteilen von BLUETTI ergeben könnten. Bitte lesen Sie diese Anleitung zu Ihrer eigenen Sicherheit vor der Verwendung sorgfältig...
Sicherheitshinweise Die Nichtbeachtung dieser Richtlinien kann zu Schäden an Ihrem Gerät und Verletzungen bei Ihnen oder anderen führen. Halten Sie dieses Gerät von Feuer, Feuchtigkeit und Staub fern. Stellen Sie sicher, dass der Ort, an dem Sie das Gerät verwenden, gut belüftet und geräumig ist. Stellen Sie das Gerät NICHT auf eine instabile oder geneigte Oberfläche.
Lieferumfang Standard Set Powerstation Netzteil Kfz Kabel Solar-Ladekabel Bedienungsanleitung Garantiekarte * Netzteil: 120cm. Kfz Kabel: 72cm Zigarettenanzünderanschluss auf DC7909. Solar-Ladekabel: 150cm/59in. MC4 to DC7909. Hinweis: Paketdetails können ohne vorherige Ankündigung geändert werden.
Betrieb LCD-Display a: ECO-Modus e: Warnung bei Temperaturanomalie b: Batteriekapazität f: Ausgangsleistung c: Eingangsleistung g: Überlastungswarnung d: Warnung bei schwacher Batterie h: Kurzschlusswarnung Ein-/Ausschalten Einschalten: Drücken Sie die Wechselstrom-/Gleichstrom-Taste, um den entsprechenden Ausgang zu starten. Grünes Licht (auf der Taste) LCD-Display EIN* *Der LCD-Bildschirm ist etwa 30-60 Sekunden lang eingeschaltet.
: Drücken Sie im „Einstellungsmodus “ die AC-Netztaste, um umzuschalten. Aufladen Wechselstrom Schließen Sie das EB70 einfach an eine normale Wandsteckdose an und beginnen Sie mit dem Aufladen. Netzsteckdose T200S 200W Netzteil In diesem Modus schaltet sich der AC-Ausgang automatisch nach 4 Stunden niedriger Leistung (≤10 W) oder ohne Last aus, um Energie zu sparen.
Seite 25
PV-Laden Schließen Sie die Solarmodule (in Reihe oder parallel) über das Solarladekabel an EB70 an. Hinweis: Bitte stellen Sie sicher, dass Ihre Solarmodule folgende Anforderungen erfüllen: : 12-28V Eingangsstrom: 8 A max. Eingangsleistung: 200 W max. MC4 Verbinder Solarladekabel Aufladen im Auto Schließen Sie die EB70 über das Kfz-Ladekabel direkt an den Zigarettenanzünderanschluss des...
Laden mittels Generator Verbinden Sie den Eingangsstecker des Netzteils mit dem Generator, während der Ausgangsstecker mit dem Ladeanschluss des EB70 verbunden ist. Netzteil Entladen 10Wh Fernseher Smartphone LED-Glühbirne Etwa 7–8 Std. 50–60 mal Etwa 20–30 Std. 10Wh Elektrowerkzeuge Kühlschrank Kochgerät Etwa 7–8 Std.
A: Ja. Klicken Sie auf die DC-Einschalttaste, um das kabellose Laden zu aktivieren. F: Kann es gleichzeitig laden und entladen? A: Ja, das „Pass-Through-Laden “ wird von dem Gerät unterstützt. Die EB70 wird mit einem hochwertigen LiFePO4-Akku und einem ausgereiften Batteriemanagementsystem ausgeliefert, um sicherzustellen, dass sie gleichzeitig geladen und entladen werden kann.
Technischer Support Sollten Sie weitere Hilfe benötigen, wenden Sie sich bitte an das BLUETTI-Serviceteam. BLUETTI POWER INC Internet: https://www.bluettipower.eu E-Mail: sale-eu@bluetti.com Lindwurmstraße 114, 80337 München, Germany. Company: POWEROAK GmbH Address: Lindwurmstr. 114, 80337 München Germany Mail: logi@bluetti.de Company: POWEROAK ENERGY UK CO.,LTD...
