3. ELECTRONICS UNIT

3.1. Interface and indicators

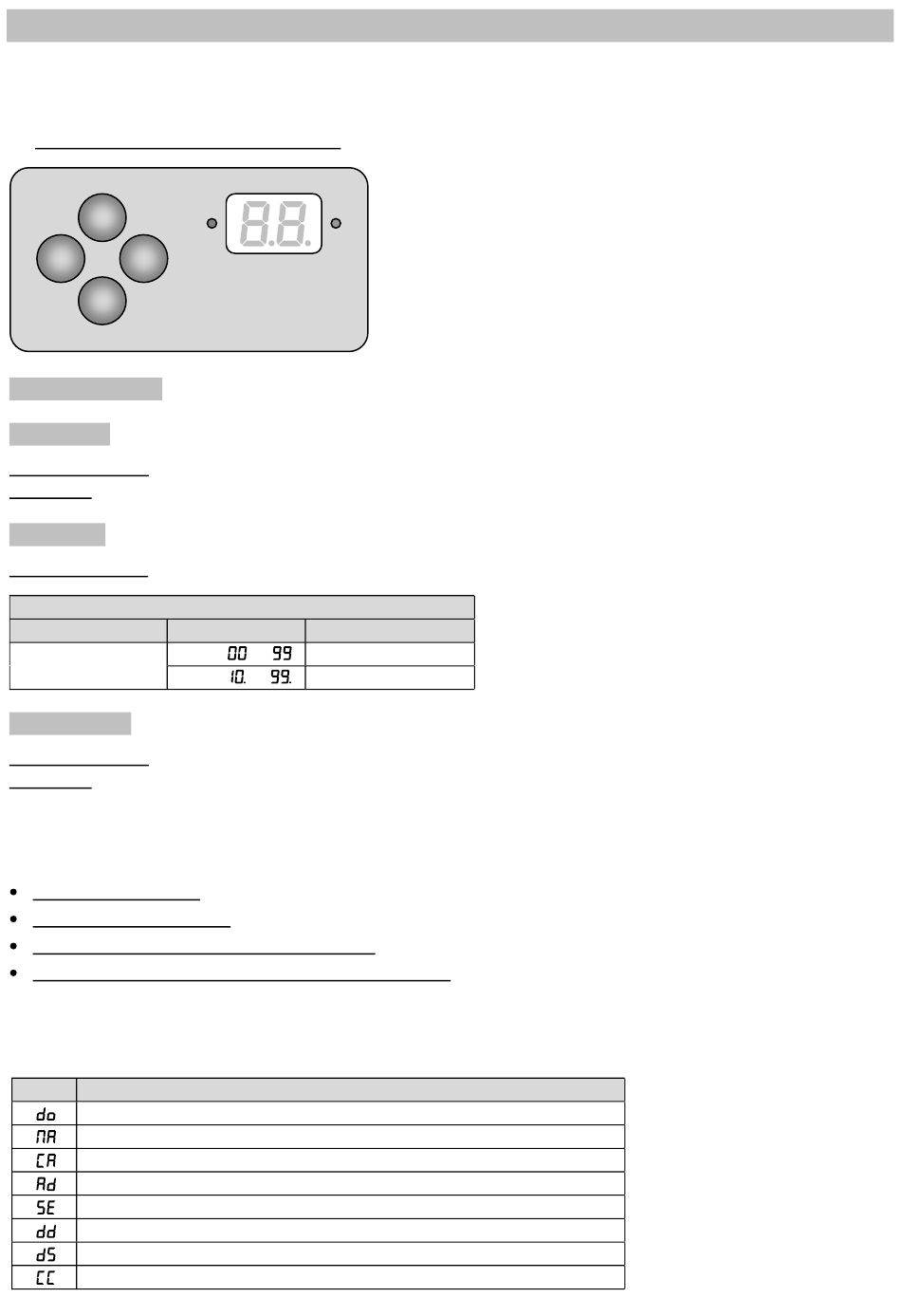

Visual of the non-contractual interface :
1
.1 : CONTROL KEYS.
.2 : RED LED.
If lit continuously : electronics unit powered off.
If flashing : alarm activated.
.3 : SCREEN.
If display flashing : information awaiting confirmation, or alarm.
DESCRIPTION OF THE DEFAULT DISPLAY
Setting Displayed value
ORP measurement
.4 : GREEN LED.
If lit continuously : electronics unit in operation.
If flashing : peristaltic pump on.

3.2. Basic operations

Switching on and off : long press on the left-hand key.
Selecting a value or data : top and bottom keys.
Confirmation of an entry / Entering a menu : right-hand key.
Cancelling an entry / Returning to the previous menu : left-hand key.

3.3. Meaning of the menus

MENU
Setting the chlorine dosage
Manual chlorine injection
Calibrating the ORP probe
ORP measurement adjustment
Setting the ORP setpoint
Adjustment of the time between each chlorine injection (dilution time)
Setting the chlorine dosing start delay
Specification of the concentration rate of chlorine used
2 4
3
From to From 0 to 99 mV
From to From 100 to 990 mV
FEATURE
Meaning
5
