Version 1.0
Published April 2022
Copyright©2022 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners' benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for a particular
purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate"
Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ASROCK H610M-HDV/M.2 R2.0

  • Seite 6 H610M-HVS/M.2 R2.0:...
  • Seite 17 H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0...
  • Seite 21 H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0...
  • Seite 31: Einleitung

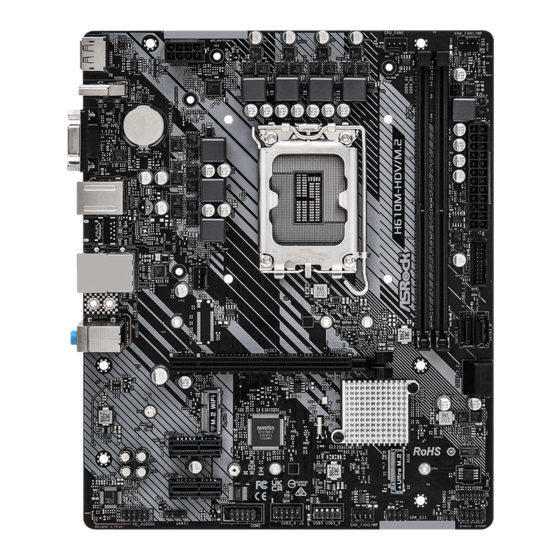

    H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0 1 Einleitung Vielen Dank, dass Sie sich für das H610M-HDV/M.2 R2.0 / H610M-HVS/M.2 R2.0 von ASRock entschieden haben – ein zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualität und Beständigkeit erfüllt.
  • Seite 32: Technische Daten

    Speicher • 2 x DDR4-DIMM-Steckplätze • Unterstützt ungepufferten DDR4-Non-ECC-Speicher bis 3200* * Weitere Informationen finden Sie in der Speicherkompatibilitätsliste auf der ASRock-Webseite. (http://www.asrock.com/) • Unterstützt ECC-UDIMM-Speichermodule (Betrieb im non-ECC- Modus) • Systemspeicher, max. Kapazität: 64GB • Unterstützt Intel® Extreme Memory Profile (XMP) 2.0...
  • Seite 33 H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0 • Unterstützt DisplayPort 1.4 mit DSC (komprimiert) max. Auflösung bis 8K (7680x4320) bei 60 Hz / 5K (5120x3200) bei 120 Hz • Unterstützt D-Sub mit maximaler Auflösung von 1920x1200 bei 60 Hz • Unterstützt HDCP 2.3 mit TMDS-kompatiblen HDMI-2.1- und DisplayPort-1.4-Ports...
  • Seite 34: Anschluss

    • 1 x Ultra-M.2-Steckplatz (M2_2, Key M), unterstützt Type- 2242/2260/2280-PCIe-Gen3x4-(32 Gb/s) Modus* • 4 x SATA-III-6,0-Gb/s-Anschlüsse * Unterstützt NVMe-SSD als Bootplatte * Unterstützt ASRock U.2-Kit • 1 x SPI-TPM-Stiftleiste Anschluss • 1 x Gehäuseeingriff- und Lautsprecher-Stiftleiste • 1 x CPU-Lüfteranschluss (4-polig) * Der CPU-Lüfteranschluss unterstützt einen CPU-Lüfter mit einer...
  • Seite 35 • FCC, CE Zertifizierun- • ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich) * Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com Bitte beachten Sie, dass mit einer Übertaktung, zu der die Anpassung von BIOS-Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von Übertaktungswerkzeugen von Drittanbietern zählen, bestimmte Risiken verbunden sind.
  • Seite 36: Jumpereinstellung

    1.3 Jumpereinstellung Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper „offen“. CMOS-löschen-Jumper (CLRMOS1) 2-poliger Jumper (siehe S. 1, 2, Nr. 14) CLRMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS.
  • Seite 37: Integrierte Stiftleisten Und Anschlüsse

    H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0 1.4 Integrierte Stiftleisten und Anschlüsse Integrierte Stiftleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen an diesen Stiftleisten und Anschlüssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschlüssen können Sie das Motherboard dauerhaft beschädigen.
  • Seite 38: Serial-Ata-Iii-Anschlüsse

    Serial-ATA-III-Anschlüsse Diese vier SATA-III-Anschlüsse Winkel rechts: unterstützen SATA-Datenkabel (SATA3_2: für interne Speichergeräte mit siehe S. 1, 2, Nr. 8) (obere) einer Datenübertragungsgeschwin (SATA3_3: SATA3_1 digkeit bis 6,0 Gb/s. siehe S. 1, 2, Nr. 8) (untere) SATA3_0 Vertikal: (SATA3_0: siehe S. 1, 2, Nr. 11) (SATA3_1: siehe S.
  • Seite 39 H610M-HDV/M.2 R2.0 H610M-HVS/M.2 R2.0 1. High Definition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss dazu jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Gehäuse. 2. Bei Nutzung eines AC’97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A.
  • Seite 40 ATX-12-V-Netzanschluss Dieses Motherboard bietet (8-polig, ATX12V1) einen 8-poligen ATX-12-V- (siehe S. 1, 2, Nr. 1) Netzanschluss. Bitte schließen Sie es zur Nutzung eines 4-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an. *Warnung: Bitte stellen Sie sicher, dass das Stromkabel der CPU und nicht das der Grafikkarte angeschlossen ist.
