OPTIONAL BED EXTENSION

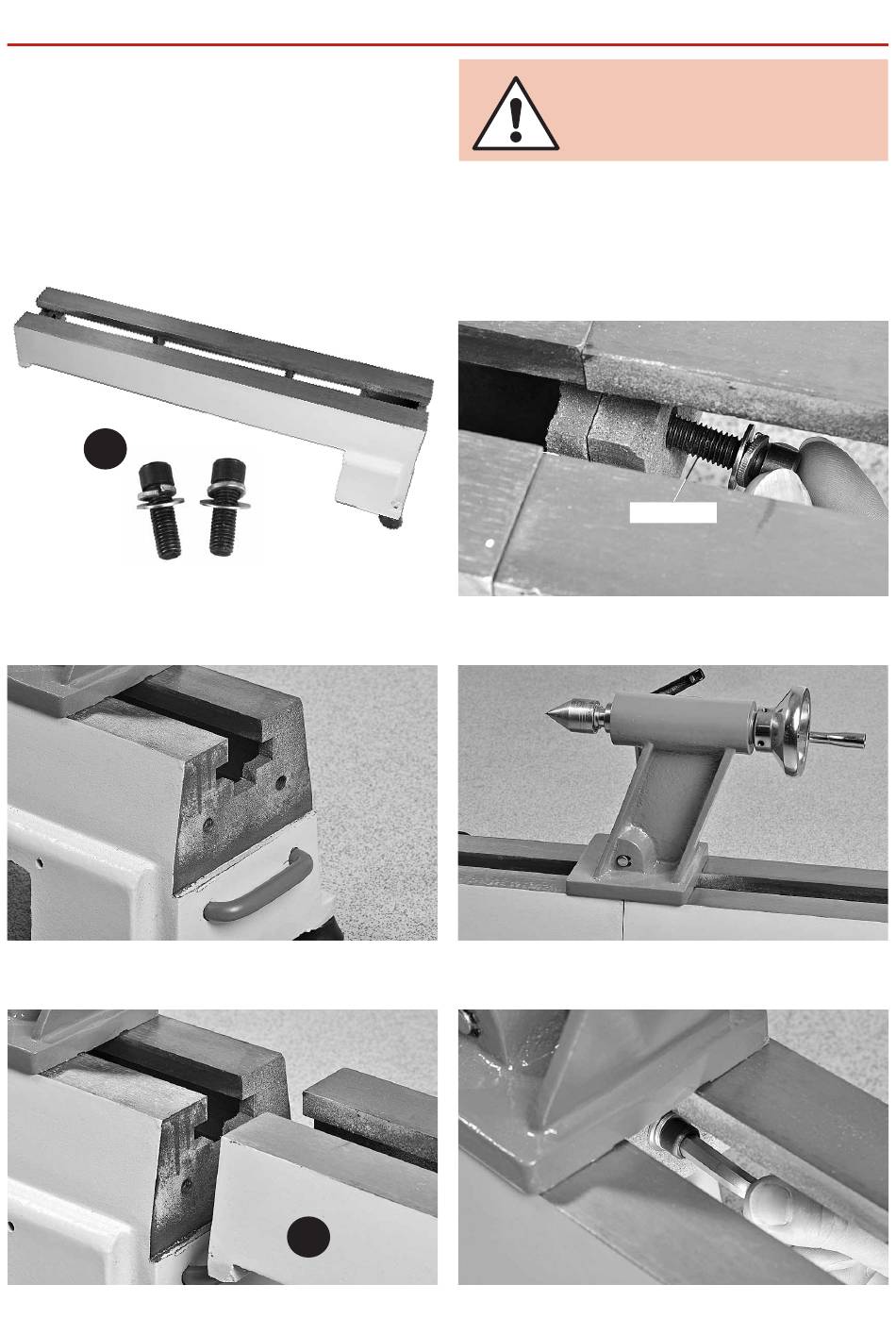

Locate the bed extension (K) and the two Hex screws
and spring/washers, (see fig 7) position the bed
extension against the end of the lathe and line up
the pre-drilled holes, see figs 8-9. Place a washer and
spring washer over the Hex screws and lightly screw
them into the threaded holes, see fig 10.
Fig 07
K
Fig 08
Fig 09
Release the tailstock clamping lever and position the
tailstock across the join to align both beds, re clamp
the tailstock in position and tighten both Hex screws,
see figs 11-12. Both beds are now aligned.
K
8
NOTE: DON'T TIGHTEN THE
SCREWS AT THIS POINT!
