C2- Attaching and connecting the elements

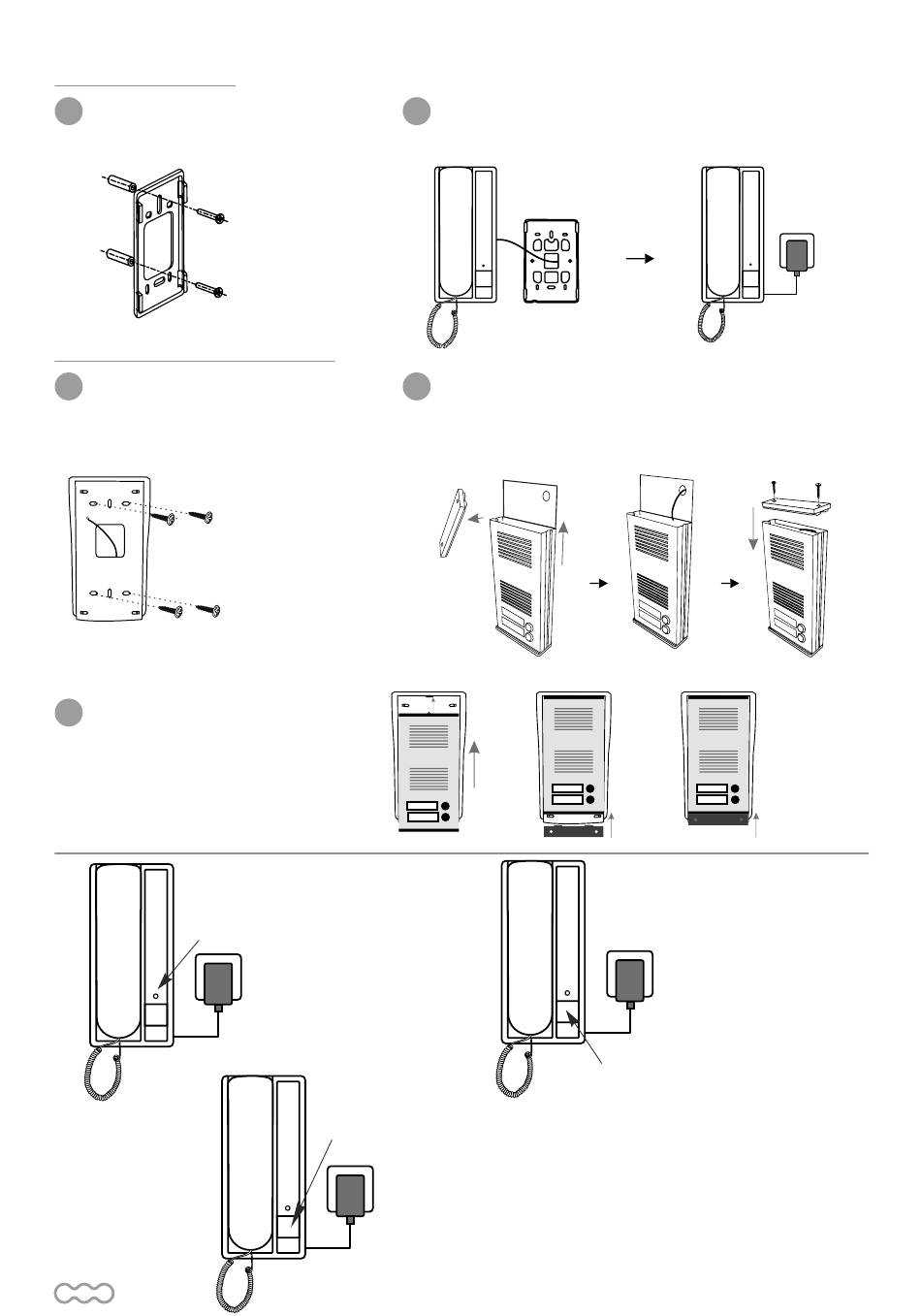

Handset installation
Fix the bracket to the wall with
1
screws 1.4 - 1.6 m from the ground.

Installation of the outdoor unit

Fix the rainshield on the wall with
1
screws (1.4 - 1.6m high from the floor,
screw size: 4 * 40BA)
Fix the door station on the rainshield
3
by clipping from the top and fit the
part supplied into the door station
then tighten the two screws.

D- USE

D- USE
8 EN
2
2
Steady red LED :
Ring mode activated
Steady blue LED :
Quiet mode activated
Blinking red and blue :
handset off hook
or call in progress
To change the melody:
The handset must be on-hook
Hold the lock release button until the long BEEP.
Release the button during the long BEEP.
Scroll through the different melodies by pressing the opening
button.
When you have chosen your melody, pick up and hang up your
handset, it will be selected.
Connect the wires according to the wiring diagram.
Connect the transformer to a power source.
Hang the handset on the cradle.
Remove the screws from the top, open the top cover and slide
the back plate.
Pass the wires through the hole in the back plate, then connect
the wires to the terminals of the unit. Then replace the back
plate. Replace the top cover and secure it with screws.
To switch from mode
ringtone in silent mode and
vice versa :
The handset must be
hung up.
Press the lock release button
for 1 second.
