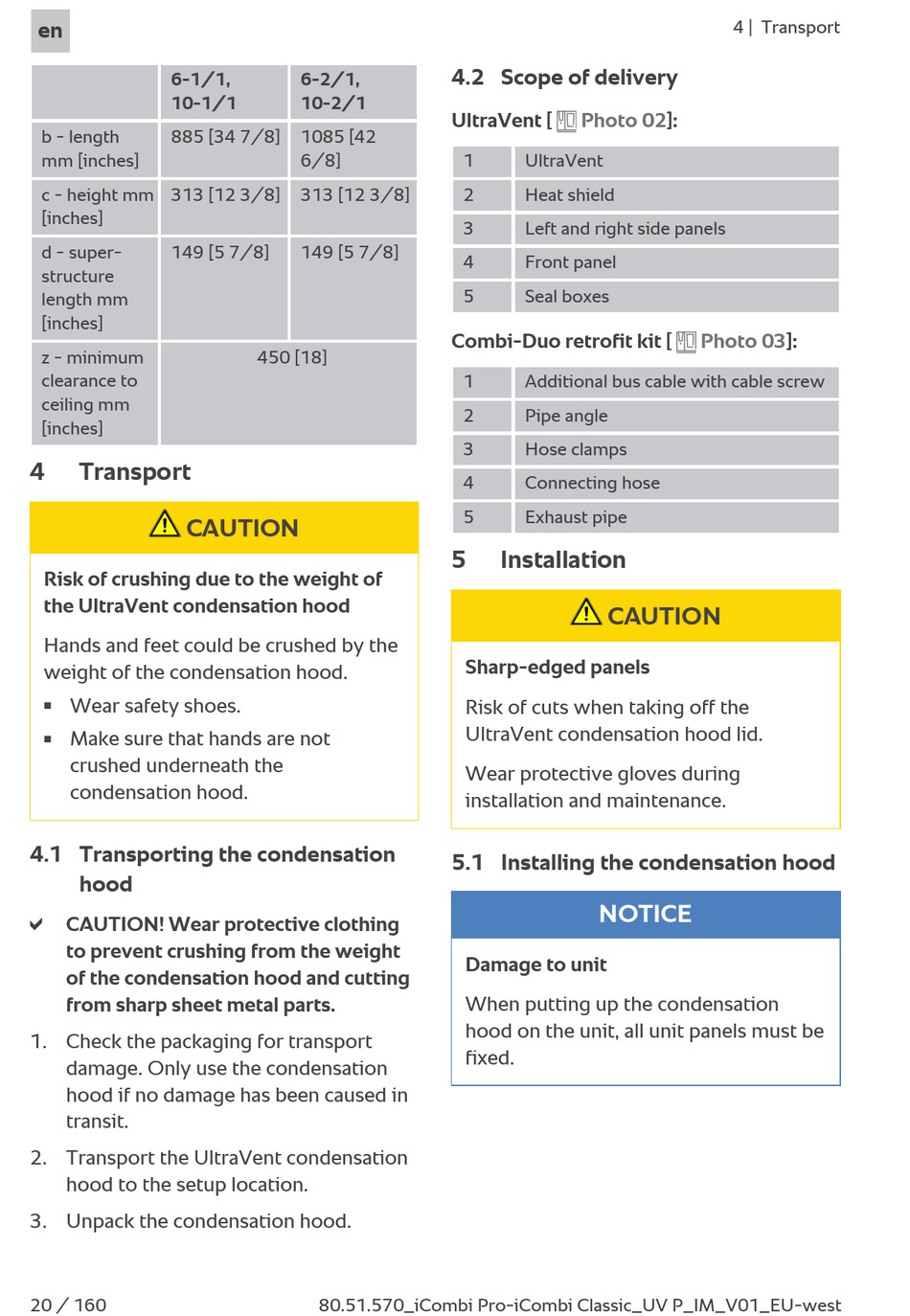

en
6-1/1,
10-1/1
b - length 885 [34 7/8]
mm [inches]
c - height mm 313 [12 3/8]
[inches]
d - super- 149 [5 7/8]
structure
length mm
[inches]
z - minimum
clearance to
ceiling mm
[inches]
4

Transport

CAUTION
Risk of crushing due to the weight of
the UltraVent condensation hood
Hands and feet could be crushed by the
weight of the condensation hood.
Wear safety shoes.
n
Make sure that hands are not
n
crushed underneath the
condensation hood.
4.1 Transporting the condensation
hood
a
CAUTION! Wear protective clothing
to prevent crushing from the weight
of the condensation hood and cutting
from sharp sheet metal parts.
1. Check the packaging for transport
damage. Only use the condensation
hood if no damage has been caused in
transit.
2. Transport the UltraVent condensation
hood to the setup location.
3. Unpack the condensation hood.
20 / 160
6-2/1,
10-2/1
1085 [42
6/8]
313 [12 3/8]
149 [5 7/8]
450 [18]
80.51.570_iCombi Pro-iCombi Classic_UV P_IM_V01_EU-west

4.2 Scope of delivery

UltraVent [ Photo
1 UltraVent
2 Heat shield
3 Left and right side panels
4 Front panel
5 Seal boxes
Combi-Duo retrofit kit [
1 Additional bus cable with cable screw
2 Pipe angle
3 Hose clamps
4 Connecting hose
5 Exhaust pipe
5

Installation

CAUTION
Sharp-edged panels
Risk of cuts when taking off the
UltraVent condensation hood lid.
Wear protective gloves during
installation and maintenance.

5.1 Installing the condensation hood

NOTICE
Damage to unit
When putting up the condensation
hood on the unit, all unit panels must be
fixed.
4 | Transport
02]:
Photo 03]:
