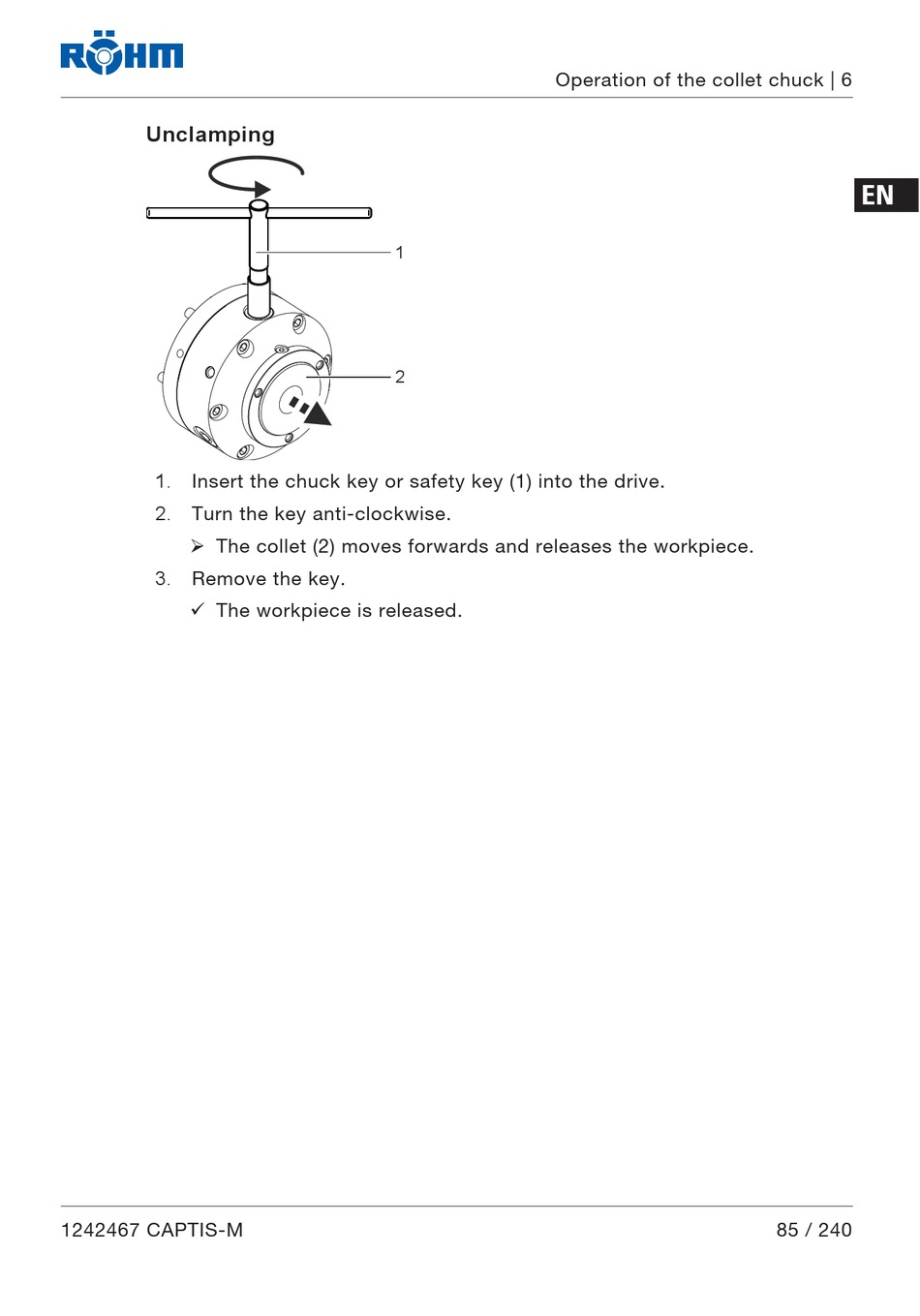

Unclamping
1. Insert the chuck key or safety key (1) into the drive.
2. Turn the key anti-clockwise.
Ø The collet (2) moves forwards and releases the workpiece.
3. Remove the key.
ü The workpiece is released.
1242467 CAPTIS-M
Operation of the collet chuck | 6
1
2
EN
85 / 240
