Assembly instructions

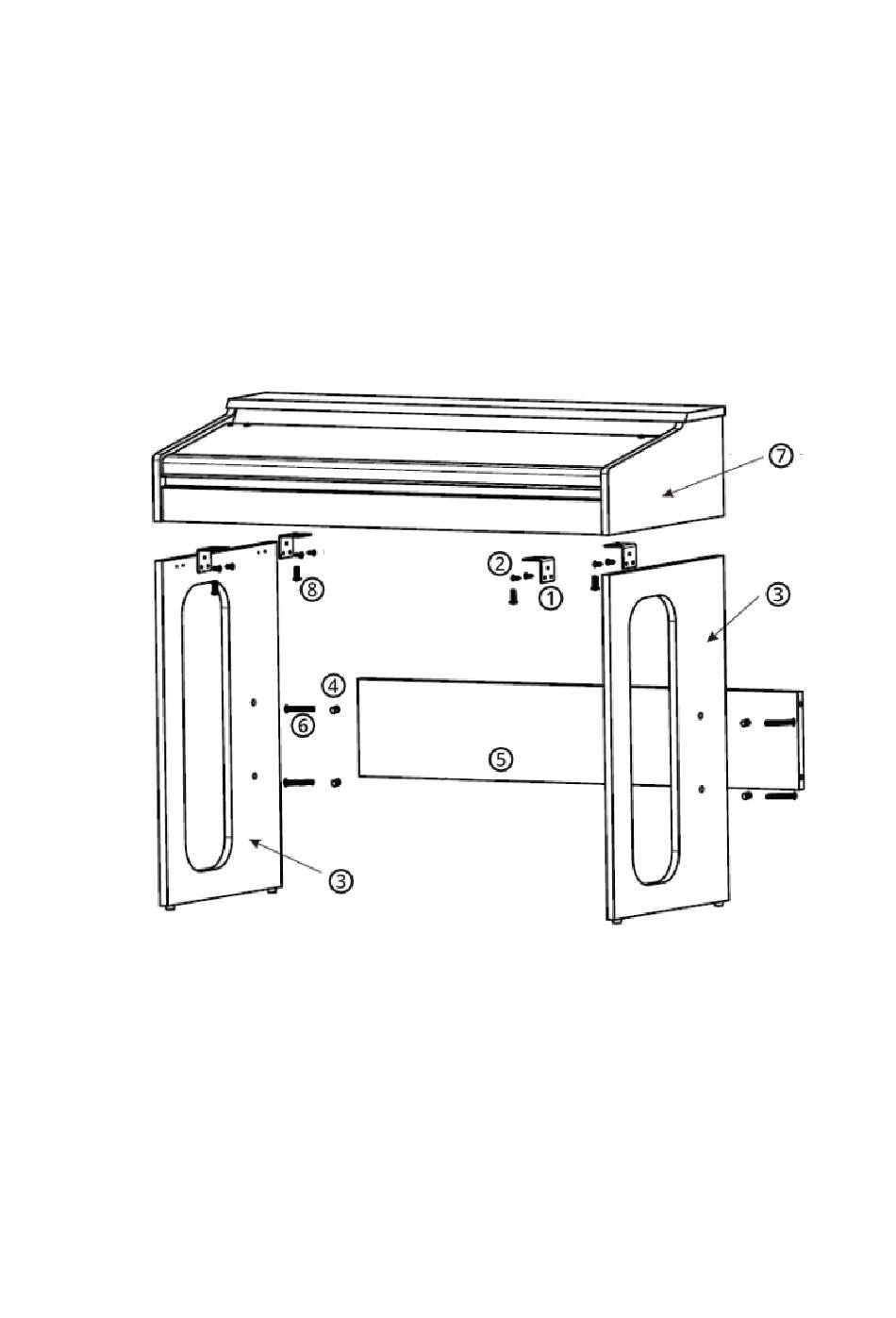

Fasten the four angles [1] to the two feet [3] using the eight small M4x12 wood screws [2].
Now connect the two feet with the help of the rear connecting plate [5]. To do this, first insert
the four connecting blocks [4] into the connecting plate from behind. Then insert the long
M6x50 screws [6] from the outside through the openings provided in the feet and connect
them to the connecting plate. Now place the console [7] from above on the finished
substructure and fasten it securely with the four M6x20 screws [8]. When placing the
console, it is advisable to enlist the help of a second person in order to avoid injuries and
damage to the instrument.
6
