Note: ensure the cameras are paired to the receiver for SCAN or QUAD to function properly. Camera
"ON" can only be selected when a camera has been paired to the system.

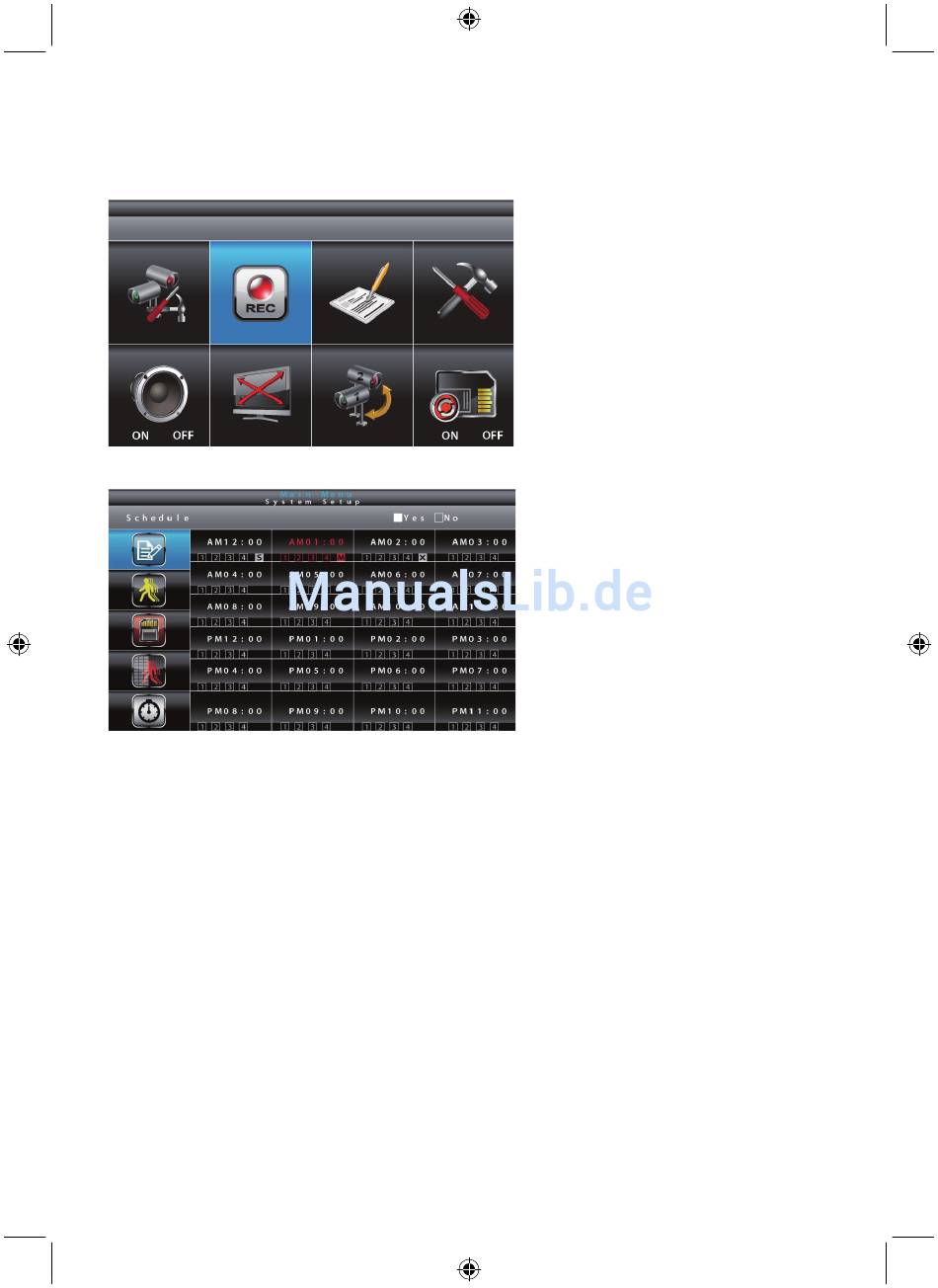

Recorder setup

Select RECORDER SETUP, press MENU key once to enter the sub-menu.
Schedule:
Use ▲▼◄► to select. There are three different recording options available to choose from. First
highlight the time period and press the MENU key to switch between different recording modes.
M: MOTION (REC only when motion is detected)
S: SCHEDULE (continuous REC)
X: MANUAL (manual REC)
The system will record video from all 4 channels simultaneously with MOTION, SCHEDULE and
MANUAL record modes. One of the four channels will have audio available. When the system
performes MOTION record, audio will automatically switch to the channel triggered by motion.
Recording cannot be stopped until 30 seconds after recording has started. This system operation is
designed to prolong the overall life of the memory card. To stop recording, press REC/DEL once. To
remove the memory card, please power off the system first.
If under SCHEDULE record mode, the system will automatically resume recording 60 seconds after
recording has been manually stopped. If under MOTION record mode, the system will resume motion
detection function 60 seconds after recording has been manually stopped. Recording must be stopped
before the user can enter the system main menu and the system will resume QUAD mode after idling
for two minutes.
Press ESC to exit.
