EN

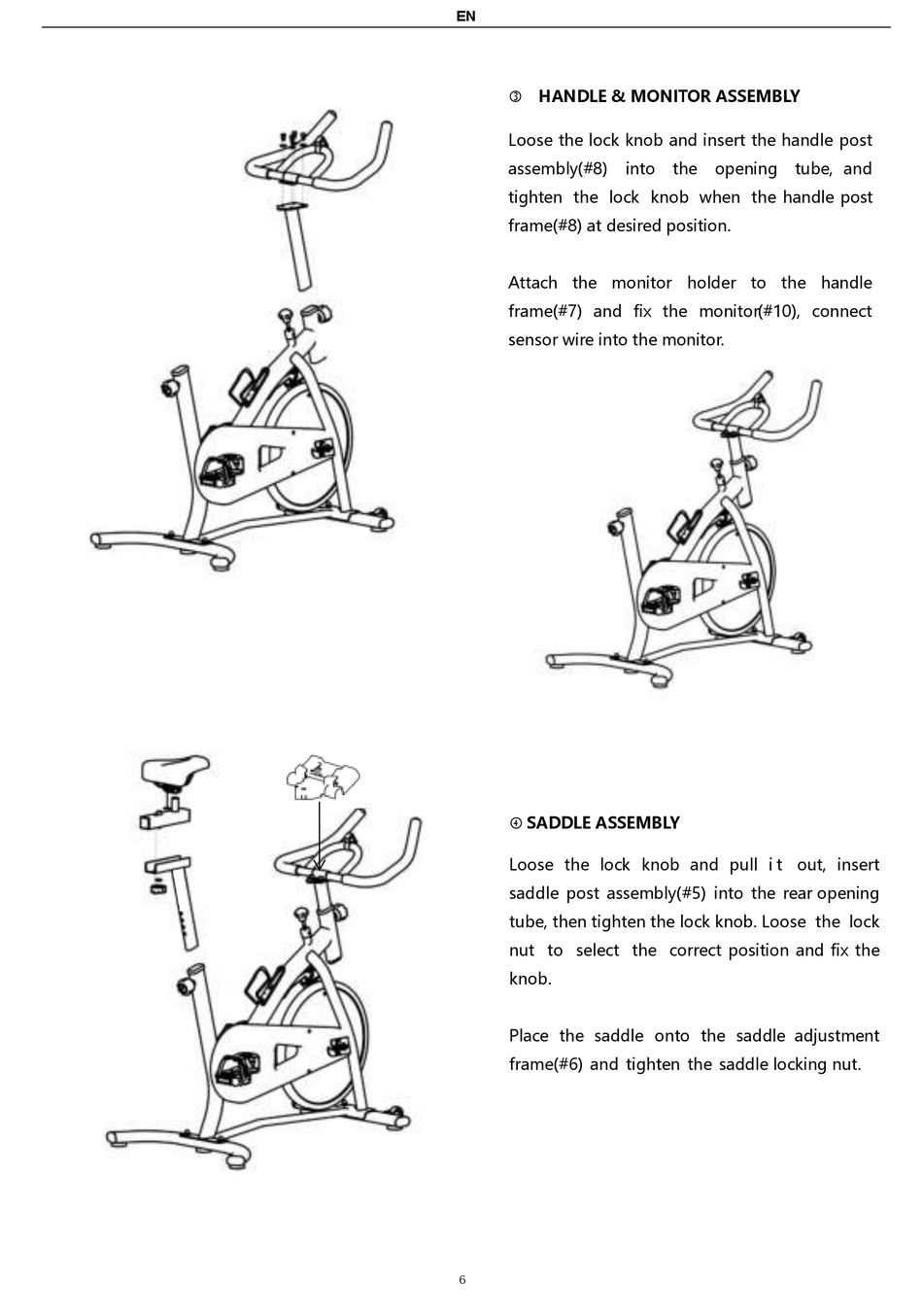

HANDLE & MONITOR ASSEMBLY
Loose the lock knob and insert the handle post
assembly(#8)
into
tighten the lock knob when the handle post
frame(#8) at desired position.
Attach the monitor holder to the handle
frame(#7) and fix the monitor(#10), connect
sensor wire into the monitor.
SADDLE ASSEMBLY
Loose the lock knob and pull i t out, insert
saddle post assembly(#5) into the rear opening
tube, then tighten the lock knob. Loose the lock
nut to select the correct position and fix the
knob.
Place the saddle onto the saddle adjustment
frame(#6) and tighten the saddle locking nut.
6
the
opening
tube, and
