Withdrawal tap

Before installing the withdrawal tap, determine its installation point.
•
The withdrawal tap should be in an easy-to-use place. Please pay attention to the rotation of
the waterspout.
•
Measure the thickness of the tabletop (40 mm max.).
•
Consider the installation and connection options under the
For the bore required in the countertop, please use drill sizes 3 mm, 7 mm and 12 mm. Start with the smal-
lest diameter and low drill RPM and increase the speed slowly.
Use a round file to clean the bore and remove any burr residues.
tions for countertops made of other materials than wood.

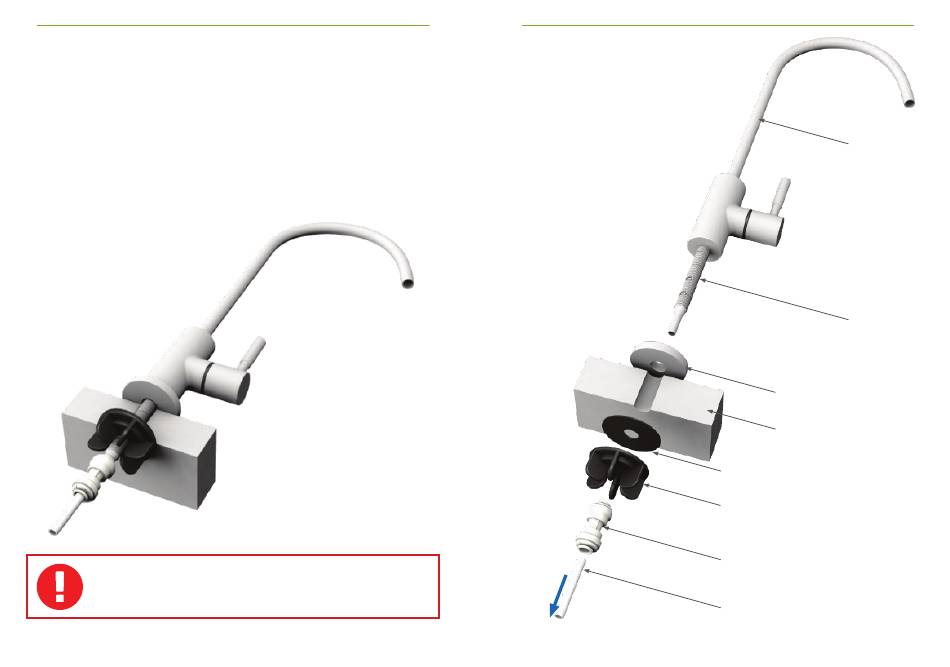

Please use the illustration below as a reference for the installation of the withdrawal tap and proceed as
follows:
•
Insert the supplied parts in the correct order on the threaded tube.
•
Correctly align the withdrawal tap.
•
Install the withdrawal tap by tightening the wing nut.
Both the connection to the withdrawal tap and the VA-Basic PLUS is under full water pressu-
re and should be installed with particular care. Check that both connections with the with-
drawal tap opened are leak-proof.
32 Instruction Manual – VA-Basic PLUS – Ver. 1.1.1 – 04.2022
countertop.
Please observe the relevant drilling instruc-
To
VA-Basic PLUS
Instruction Manual – VA-Basic PLUS – Ver. 1.1.1 – 04.2022
Withdrawal tap
Waterspout
Thread
Tap base
Tabletop
Large plastic ring washer
Wing nut
Connection adapter 1/4"
Item No.:
PP0408W
Plastic tube1/4"
Item No.: PE-08-BI-0500F-N
