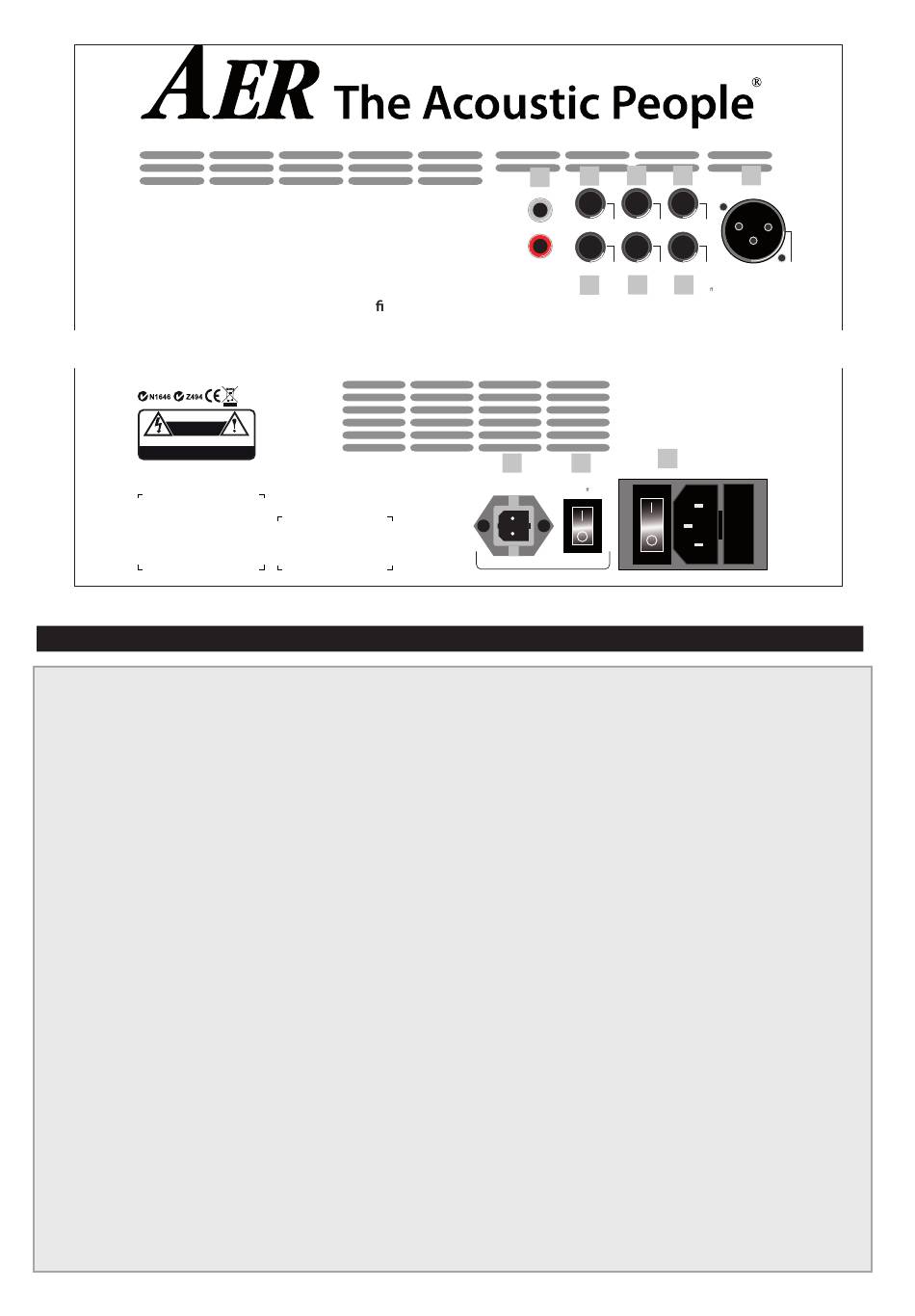

3.2 Rear side

IF_CPM_120718
1) aux in
Auxiliary input, 3.5 mm jack socket.
Additional input for general sources
with line level, e.g. CD player
Mono or stereo jack plugs can be used.
2) line out
Preamplifier output post master and tone
controls, with effects
3) headphones
Output for headphones. The loudspeaker of
the amplifier is switched off when this socket
is used.
4) send
Output for external, parallel effect loop (see
5.2) in conjunction with return
5) return
Input of the external, parallel effect path
Can also be used alone as an additional
input.
6) tuner
Output, pre master, for a tuner
L
1
R
L
aux in
2
R
aux in
2
9
12V DC only
1= – / 2= +
12V DC only
1= – / 2= +
7) footswitch
Connector for a dual footswitch switching the
internal and external effect on/off.
Stereo jack socket, assignment:
Tip = switch for internal effect
Ring = switch for external effect (send / return)
8) DI-out
Balanced XLR output, pre master without
effects.
9) 12V DC only: Connection socket for an optional
12V-cable to an external battery.
10) DC on/off: On/off-switch for the connection
socket (9).
11) power on
Power on/off switch, combined with mains inlet
(IEC C14 type) and compartment for mains fuse
(see technical data).
2 4 6
line send tuner
out
headphones return footswitch
line send tuner
tip = int. efx
out
ring = ext. efx
on/o
headphones return footswitch
tip = int. efx
3 5 7
ring = ext. efx
on/o
11
10
power on
DC
on/o
power on
DC
on/o
8
DI-out
1 = gnd
2 = pos
3 = neg
DI-out
1 = gnd
2 = pos
3 = neg
