7. Operation

DMX Adressing
DMX addresses can be entered by using the DIP switches 1-9.
Each DIP switch is set for a binary value.
DIP Switches binär Value
1 1
2 2
3 4
4 8
5 16
6 32
7 64
8 128
9 256
10 3 / 4 CH

8. Fundamental information

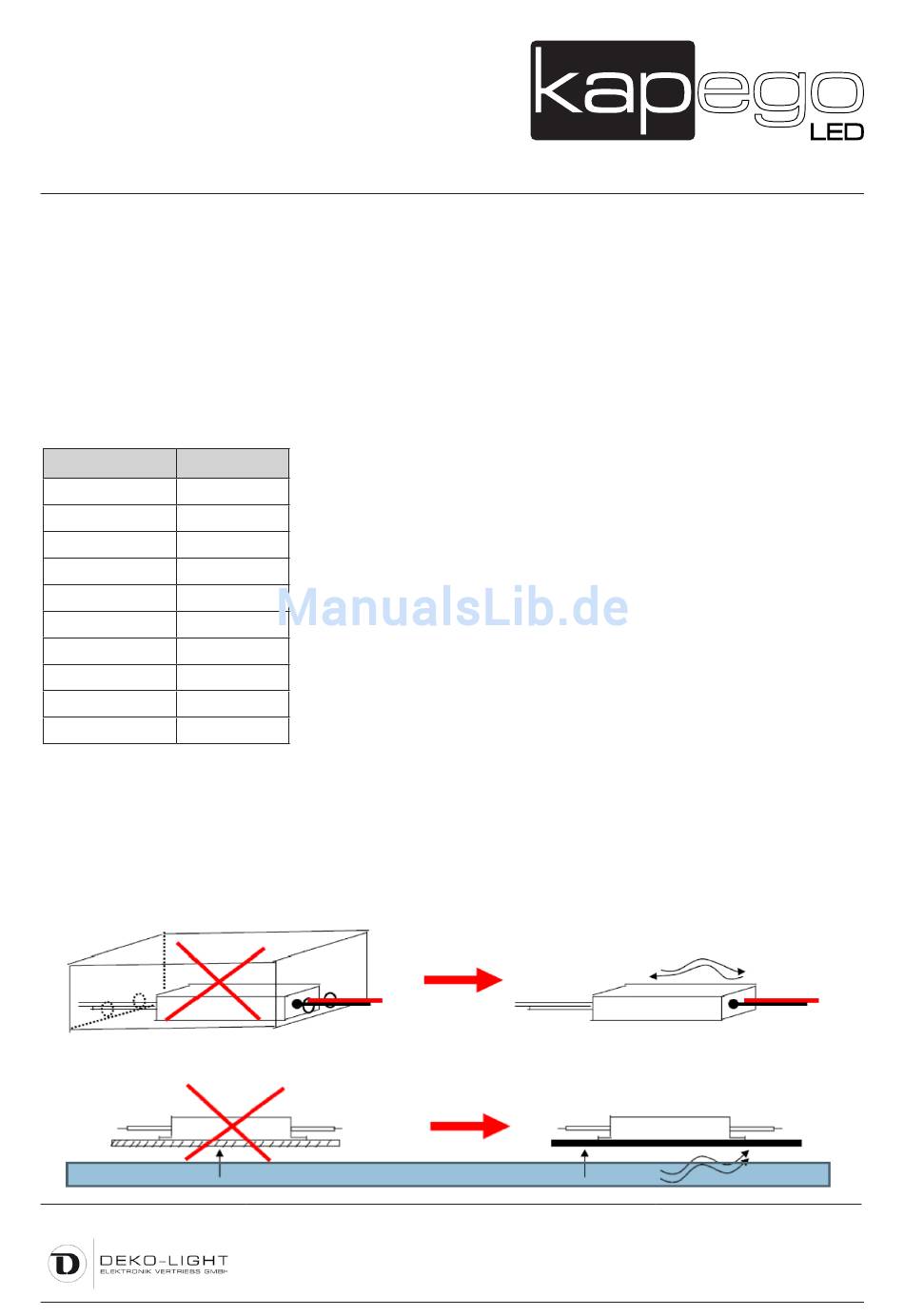

To derive the heat, we recommend the installation to allow sufficient space for the air to circulate
and the driver will not be overheated. Make sure that all connections are tight. The signal line
should be as far away from the power line (230V).
A DMX value (address) will be entered by linking (add) the
various dip switches. They add up to the desired value set
Examples:
DIP Switch 1 & 3
DIP Switch 2 & 4
DIP Switch 1 & 2 & 4 & 5
Importer
Auf der Hub 2
D-76307 Karlsbad
= 1 + 4
= 2 + 8
= 1 + 2 + 8 + 16
Tel.: +49 7248 / 92 71 500
Fax: +49 7248 / 92 71 550
6
= Adress 5
= Adress 10
= Adress 27
