Article No.: 843273

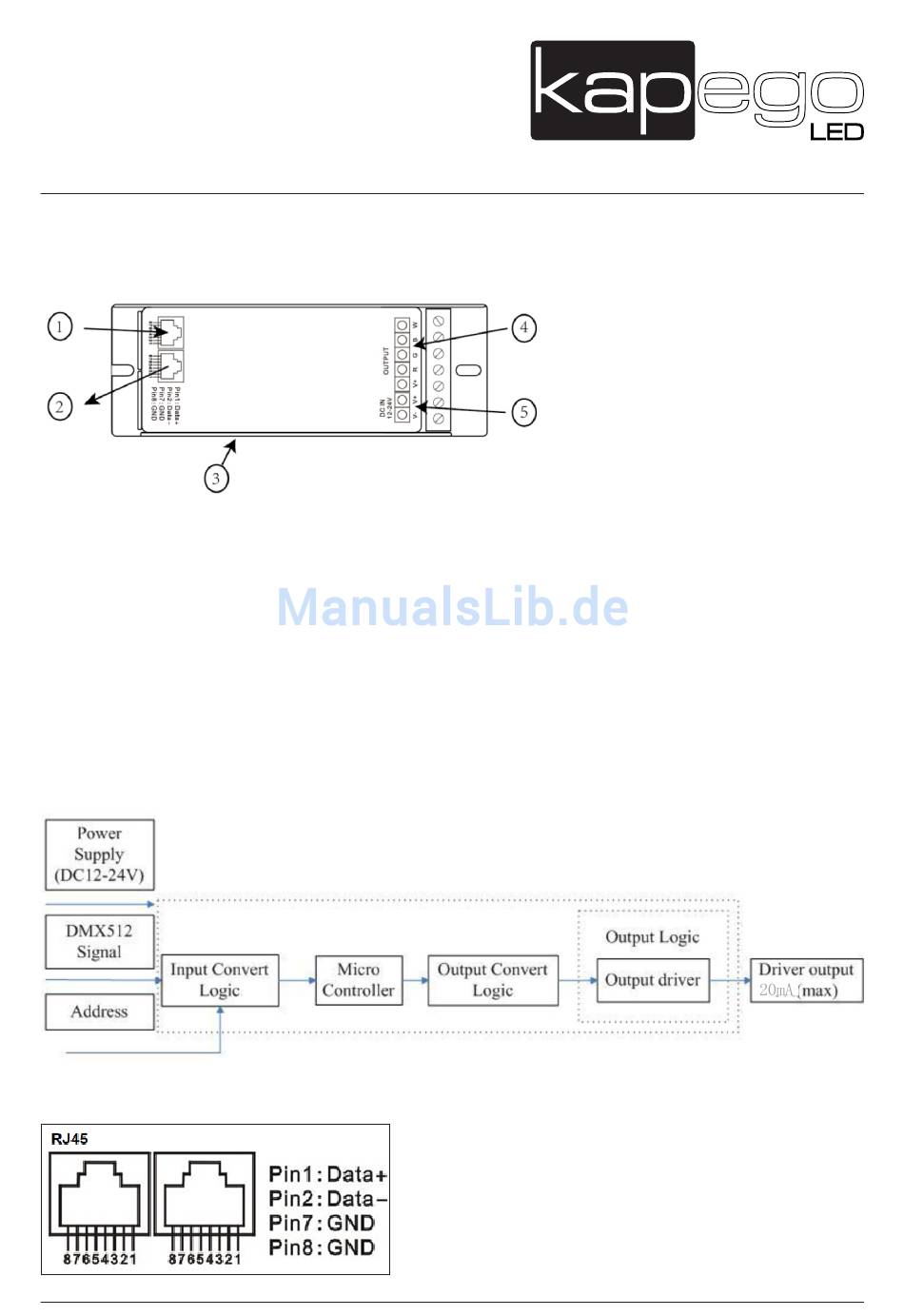

6. Interfaces

No. 1 & 2:
No. 3:
No. 4:
No. 5:
Take care that the anode to V + connect to a device and the RGBW colors RGBW cathode
respectively on any Related connections RGBW.
If you want to connect multiple individual colors, they must clamp all anodes together on V + and
the cathode, respectively to the Associated color.

DMX Interface

DMX signal In/Out
DIP switches adressing
Driver output interface
Input power
5
