Call point BG3
English

Wiring details

The following wiring diagrams are the standard
configuration unless otherwise requested when the unit
is ordered. For configurations other than those shown
below, please refer to the separate wiring diagram
supplied with the unit.
N ote: All wiring diagrams are shown with the glass
element intact.

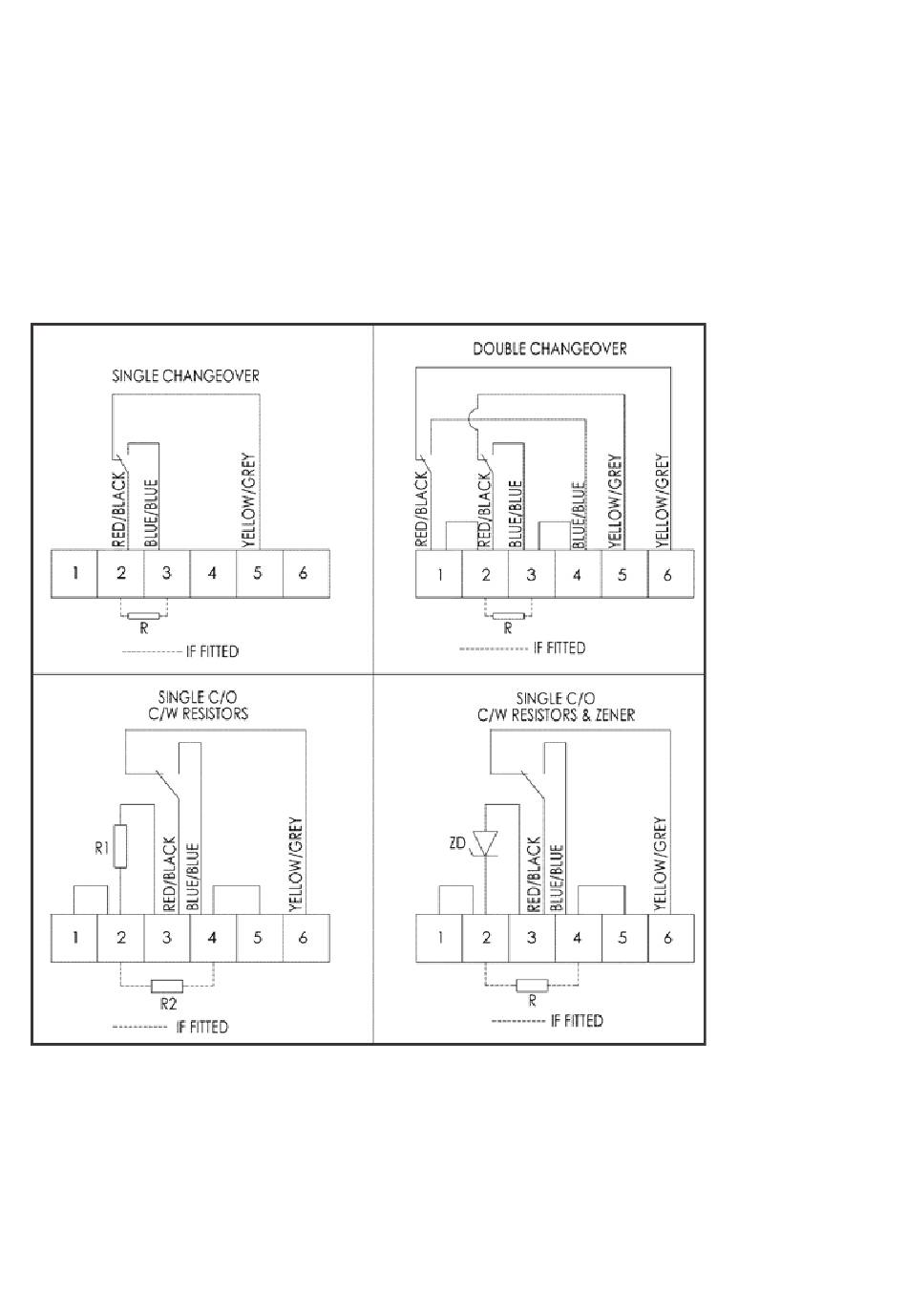

Standard wiring options without LED
