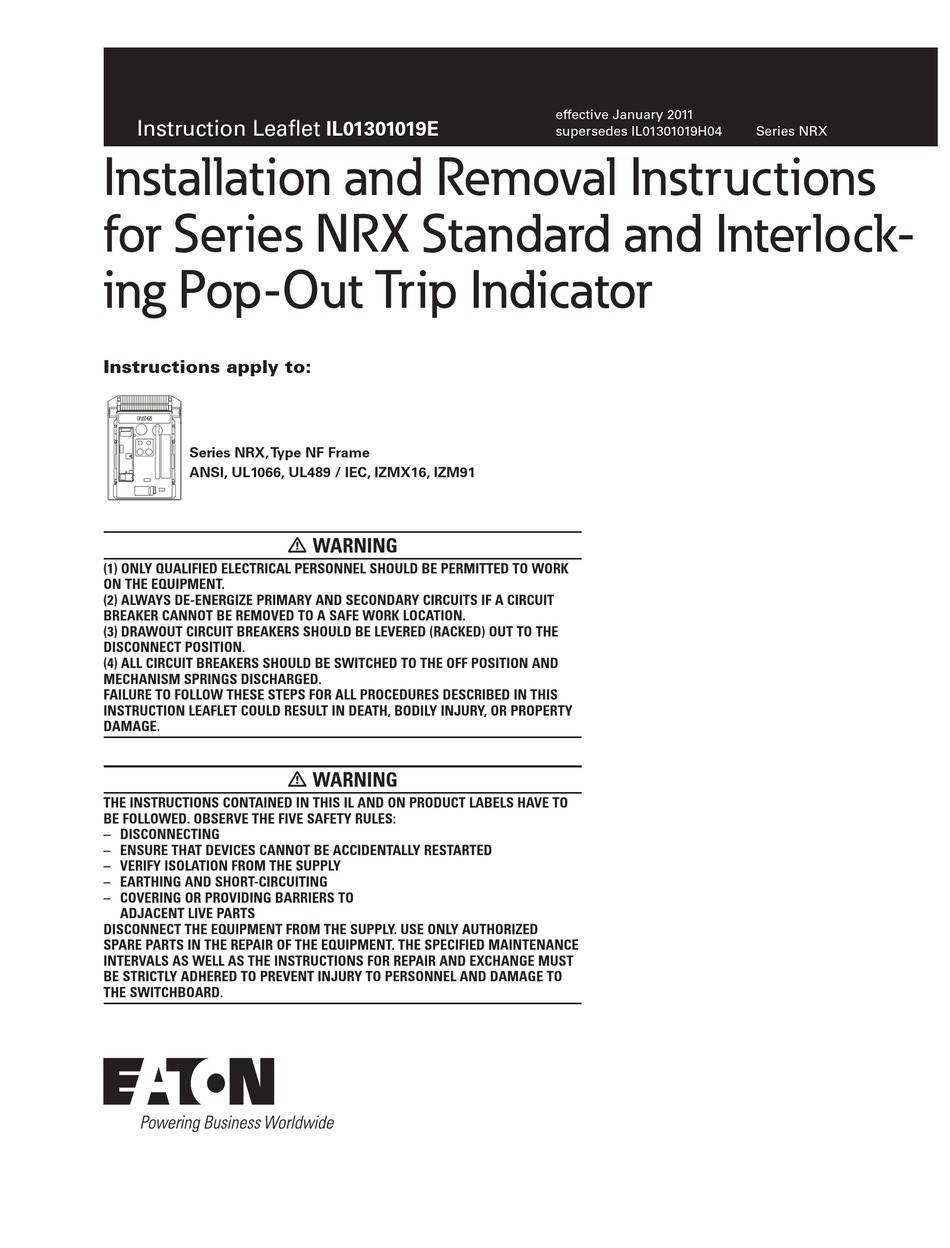

Instruction Leaflet
Installation and Removal Instructions
for Series NRX Standard and Interlock-
ing Pop-Out Trip Indicator
Instructions apply to:
Series NRX, Type NF Frame
ANSI, UL1066, UL489 / IEC, IZMX16, IZM91
1600 NRX SUB-TITLE IMAGE (12/15/2010)
(1) Only qualified electrical persOnnel shOuld be permitted tO WOrk
On the equipment.
(2) alWays de-energize primary and secOndary circuits if a circuit
breaker cannOt be remOved tO a safe WOrk lOcatiOn.
(3) draWOut circuit breakers shOuld be levered (racked) Out tO the
discOnnect pOsitiOn.
(4) all circuit breakers shOuld be sWitched tO the Off pOsitiOn and
mechanism springs discharged.
failure tO fOllOW these steps fOr all prOcedures described in this
instructiOn leaflet cOuld result in death, bOdily injury, Or prOperty
damage.
the instructiOns cOntained in this il and On prOduct labels have tO
be fOllOWed. Observe the five safety rules:
– discOnnecting
– ensure that devices cannOt be accidentally restarted
– verify isOlatiOn frOm the supply
– earthing and shOrt-circuiting
– cOvering Or prOviding barriers tO
adjacent live parts
discOnnect the equipment frOm the supply. use Only authOrized
spare parts in the repair Of the equipment. the specified maintenance
intervals as Well as the instructiOns fOr repair and exchange must
be strictly adhered tO prevent injury tO persOnnel and damage tO
the sWitchbOard.
IL01301019E
• Warning
• Warning
effective January 2011
supersedes IL01301019H04
Series NRX

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Eaton NRX series

  • Seite 1 effective January 2011 Instruction Leaflet IL01301019E supersedes IL01301019H04 Series NRX Installation and Removal Instructions for Series NRX Standard and Interlock- ing Pop-Out Trip Indicator Instructions apply to: Series NRX, Type NF Frame ANSI, UL1066, UL489 / IEC, IZMX16, IZM91 1600 NRX SUB-TITLE IMAGE (12/15/2010) •...
  • Seite 2 Figure 4. Step 1 Step 2: Remove the front cover. Pull down on the charging handle to Red Operable simplify removal. Indicator Figure 2. Non-Interlocking Pop-Out Trip Indicator Shown Figure 5. Step 2 eaton corporatIon www.eaton.com...
  • Seite 3 The indicator will snap into its mounted position in the notch. A click sound will be heard indicating a successful installation. The installed pop-out indicator Mounted Trip will appear as shown. Indicator Figure 9. Step 2 eaton corporatIon www.eaton.com...
  • Seite 4 Step 4 to provide additional clearance for the indicator as it reaches the top of its mounting slot. Step 9: To install a new pop-out trip indicator, follow Steps 4 through 9 of Section 2. Mounting Notch in Side Plate Figure 12. Step 5 eaton corporatIon www.eaton.com...
  • Seite 5 Installation and Removal Instructions Instruction Leaflet IL01301019E for Series NRX Standard and effective January 2011 Interlocking Pop-Out Trip Indicator eaton corporatIon www.eaton.com...
  • Seite 6 Interlocking Pop-Out Trip Indicator Disclaimer of warranties and limitation of liability In no event will Eaton be responsible to the purchaser or user in The information, recommendations, descriptions, and safety notations contract, in tort (including negligence), strict liability, or otherwise in this document are based on Eaton Corporation’s (“Eaton”)
  • Seite 7: Die Montageanweisung Ist Für Folgende Baugrößen Gültig

    gültig ab Januar 2011 Instruction Leaflet IL01301019E ersetzt IL01301019H04 Series NRX Montageanweisung für Series NRX Ausgelöstmelder mit und ohne Wiedereinschaltsperre Die Montageanweisung ist für folgende Baugrößen gültig: Series NRX, Type NF Frame ANSI, UL1066, UL489 / IEC, IZMX16, IZM91 • warnUng 1600 NRX SUB-TITLE IMAGE (12/15/2010) (1) Die instanDhaltUng Darf nUr DUrch entsprechenD elektrontechnisch qUalifiziertes personal erfolgen.
  • Seite 8: Abschnitt 1: Allgemeine Informationen

    Ausgelöstmelder ab Werk geliefert (entweder mit rotem Anzeigestift, oder mit nicht ausfahrbarem grauem Anzeigestift). Dieser muss vor dem Einbau eines neuen Ausgelöstmelders erst ausgebaut werden. Führen Sie dazu die Schritte 2 bis 8 aus Abschnitt 3 aus. Gehen Sie dann weiter zu Schritt 4. eaton corporation www.eaton.com...
  • Seite 9: Abschnitt 3: Entfernen Des Ausgelöst- Melders

    Halteschrauben der Halteklammer, welche die Steuerletiungsanschlüsse sichern. Die Halteklammer kann nun so positioniert werden, dass der Zugriff auf den Ausgelöstmeldeschalter erleichtert wird. Halteschrauben Three Mounting Bracket Screws Abbildung 8. Schritt 6 Abbildung 10. Schritt 4 eaton corporation www.eaton.com...
  • Seite 10 Montageschlitz herausgezogen wird. Für Schalter in Ausfahrtechnik kann die in Schritt 4 gelöste Halteklammer der Steuerleitungsanschlüsse leicht angehoben werden, um die Entnahme zu vereinfachen. Schritt 6: Um einen neuen Ausgelösmelder einzusetzen, führen Sie die Schritte 4 bis 9 aus Abschnitt 2 aus. eaton corporation www.eaton.com...
  • Seite 11 Montageanweisung für Series NRX Instruction Leaflet IL01301019E Ausgelöstmelder mit und ohne gültig ab Januar 2011 Wiedereinschaltsperre eaton corporation www.eaton.com...
  • Seite 12 1000 Cherrington Parkway Moon Township, PA 15108 United States 877-ETN-CARE (877-386-2273) Eaton.com Power Chain Management is a registered © 2011 Eaton Corporation Trademark of Eaton Corporation All Rights Reserved Printed in USA All other Trademarks are property of their Publication No. IL01301019EH05 respective owners.
