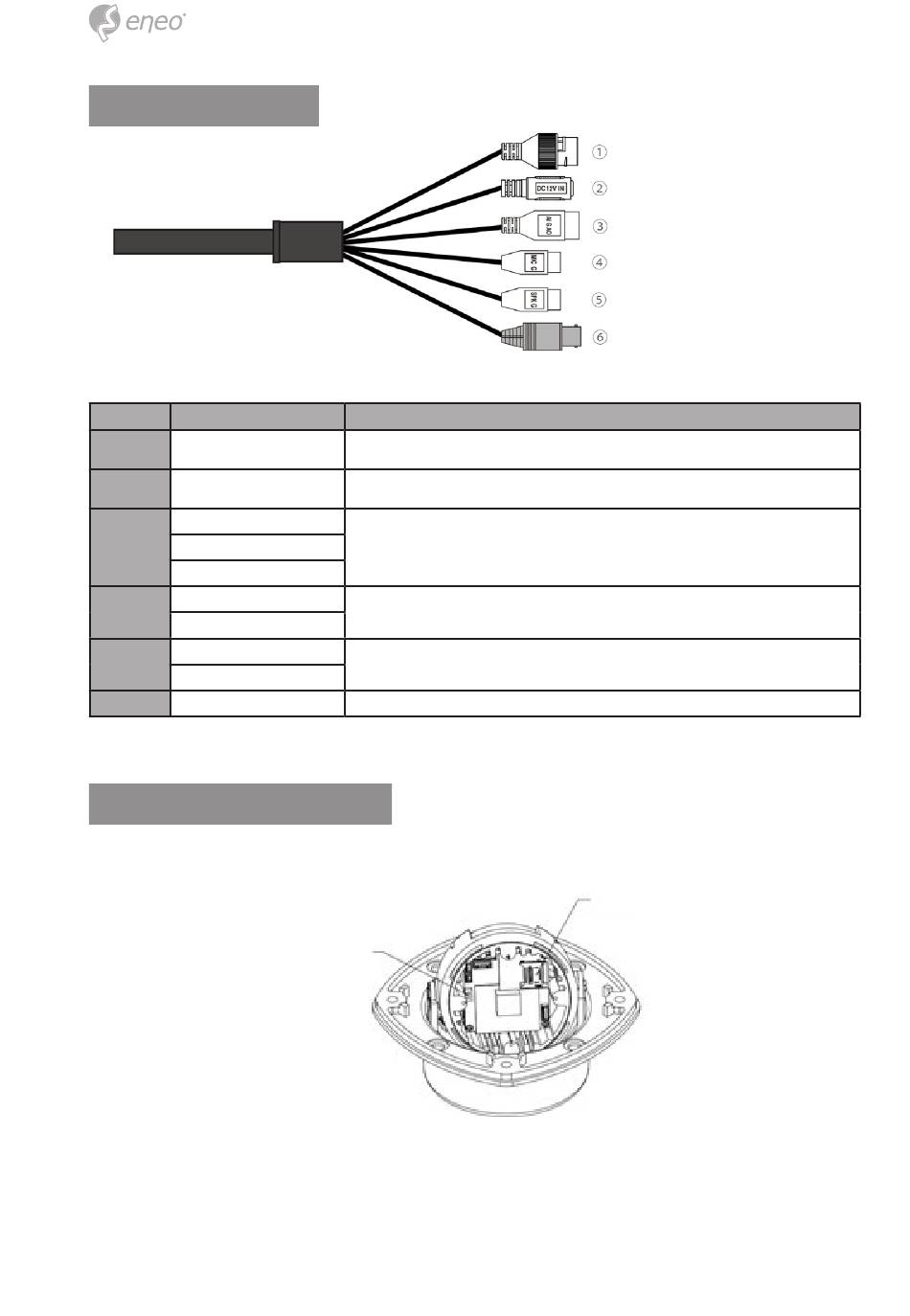

Extension Cable

No. Connector
1 RJ-45
2 DC Jack
AI: Alarm In
3 G: GND
AO: Alarm Out
MIC: Audio In
4
G: GND
SPK: Audio Out
5
G: GND
6 BNC jack

microSD Card Insertion

Remove the cap at the bottom of the camera to insert the microSD memory card.
8
Description
Ethernet, RJ-45 port compatible with 10/100Mbps PoE Modular Jack
Main Power, DC Jack, DC12V
Alarm input and output, 3pin terminal
Audio line input, 2pin terminal
Audio line output, 2pin terminal
CVBS Output
Reset Button
microSD Card Slot
