For the operation of the network camera, it is necessary to connect a network cable for
data transmission, power connection from power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with an installer.
The dome camera should be attached to a structural object, such as hard wood, wall stud
or ceiling rafter that supports the weight of the dome camera. For its fixation on different
locations, please consult with an installer.

Installing and Adjusting Camera

1. Loosen the 4 torx screws located on the front of the housing leaving the screws
intact in the front portion.
2. Using the template sheet make mounting holes and cable hole in the place (ceil-
ing or wall) to which the camera is to be installed.

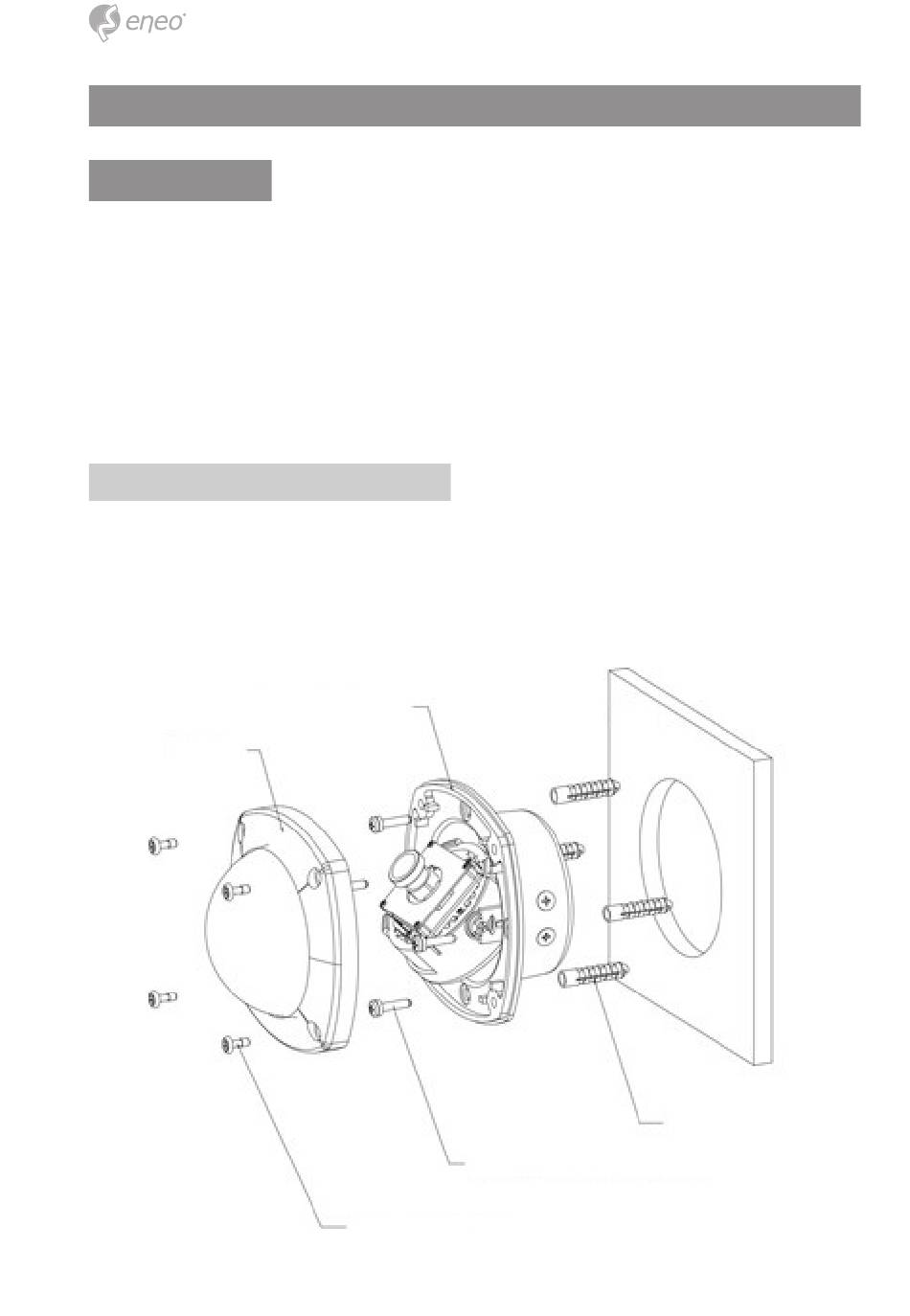

[FLUSH MOUNT] (227008 – ISD-52F0023WFA)
Top case
6
Bottom case / Camera
Torx screw (x4)
Ceiling / wall
Special screw + O-Ring(x4)
Plastic anchor (x4)
