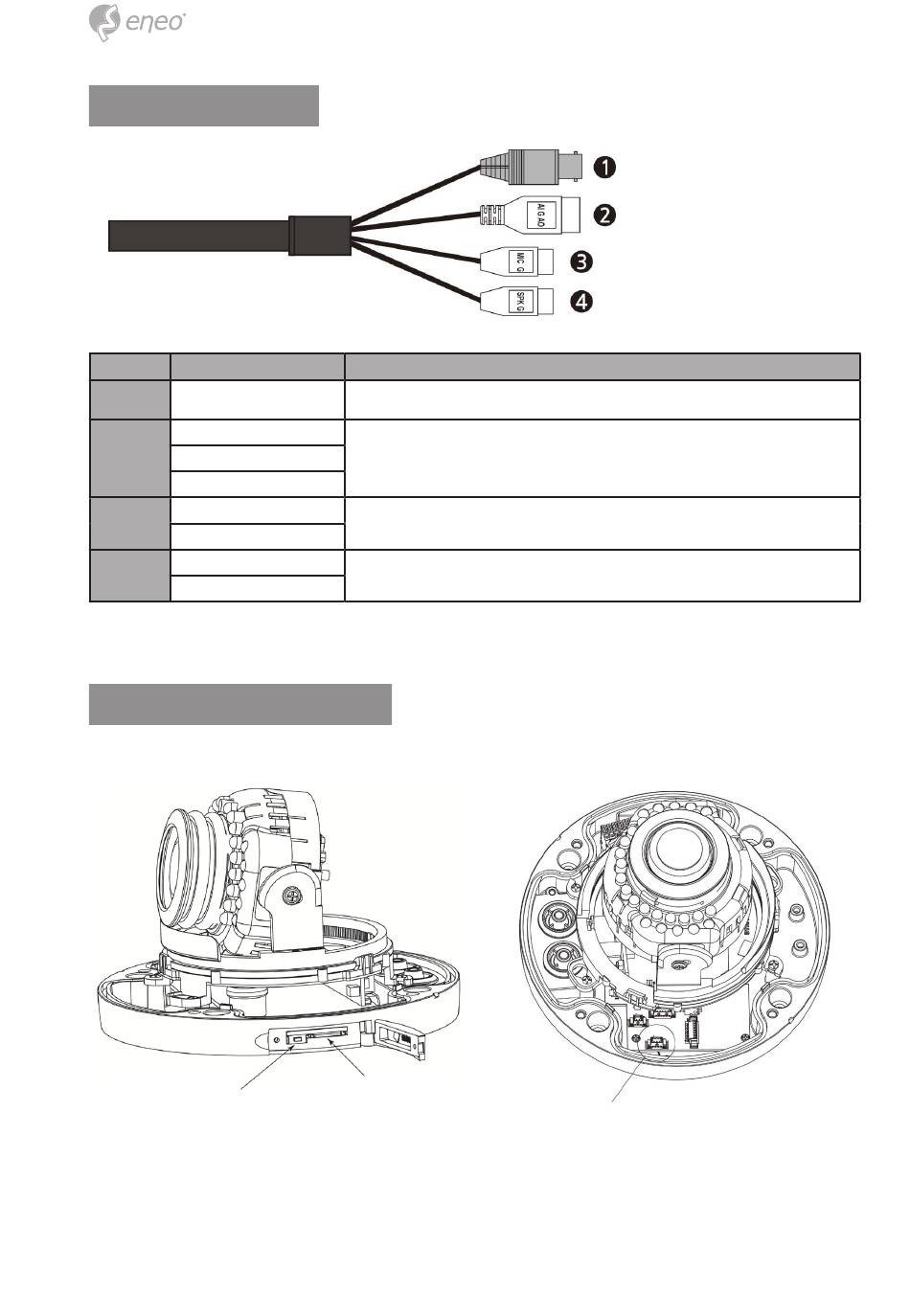

Extension Cable

No. Connector
1 BNC
AI: Alarm In
2 G: GND
AO: Alarm Out
MIC: Audio In
3
G: GND
SPK: Audio Out
4
G: GND

microSD Card Insertion

Remove the cap at the bottom of the camera to insert the microSD memory card.
Reset Button
8
Description
Ethernet data transmission and PoE power supply. Connect to dedicated EoC receiver.
Alarm input and output, 3-pin terminal
Audio line input, 2-pin terminal
Audio line output, 2-pin terminal
microSD Card Slot
CVBS cable slot
