3. Description

3.1. Part name
1
2
3
4
5
6
7
8
9

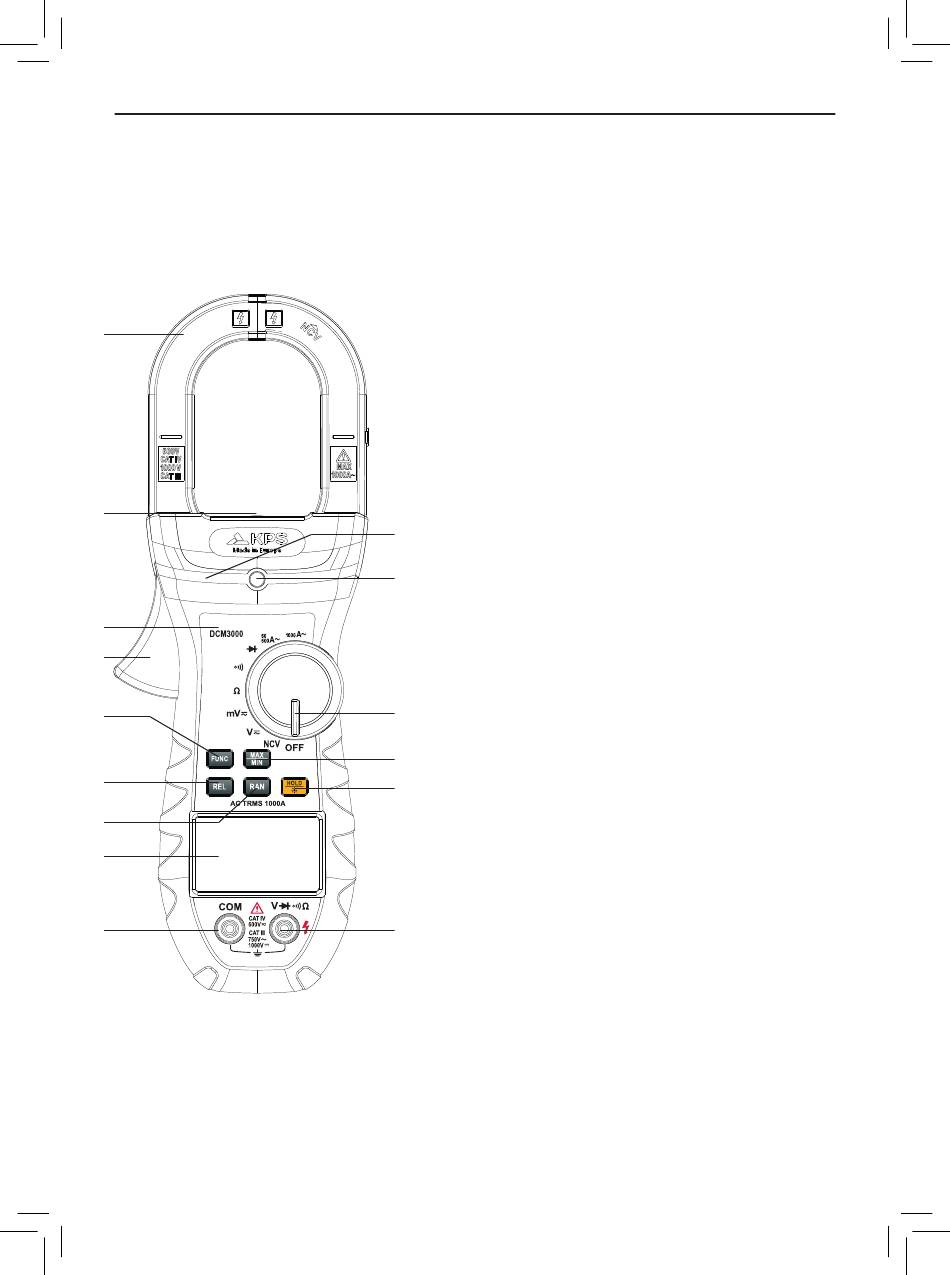

(1) Current clamp head: used for current measurement.
(2) Clamp head light
(3) Panel
(4) Trigger
(5) Function choice button (FUNC)
(6) Relative measurement button
(7) Range selection button
(8) LCD display
(9) Common end jack
15
(10) Resistance, voltage, diode and continuity input
jack
14
(11) Reading hold/Back light button (B.L/ HOLD)
(12) Maximum/minimum choice button (MAX/MIN)
(13) Transfer switch
(14) NCV indicator
(15) Protective Barrier (to warn the operator of the limit
13
of safe access)
12
11
10
