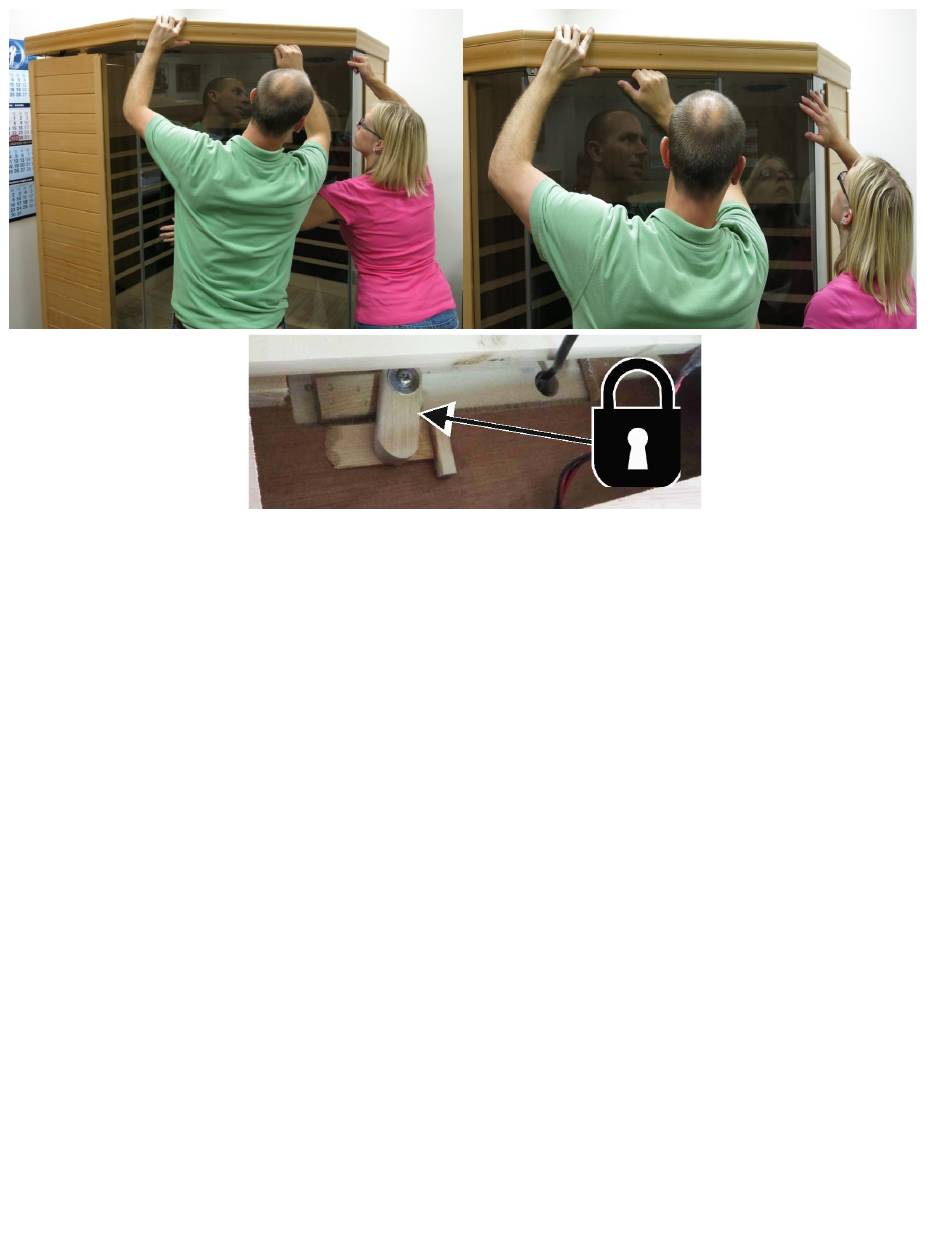

• Make sure the ceiling fits tight and is flat and level.
• Turn the wood ceiling cam locks to lock the ceiling into place.
Electrical Connections (inside the Ceiling panel-rear right):
• Open all hatch doors on the ceiling to locate the necessary electrical plugs.
• Access the connectors and connect them according to the labels on the harness.
• Connect wire #4 from the Back Wall harness to the Ceiling wire #4.
• Connect wire #5 from the Back Wall harness to the Ceiling wire #5.
• Connect wire #6 from the Back Wall harness to the Ceiling wire #6.
• Connect wire #7 from the Wall panel to the Ceiling wire #7.
