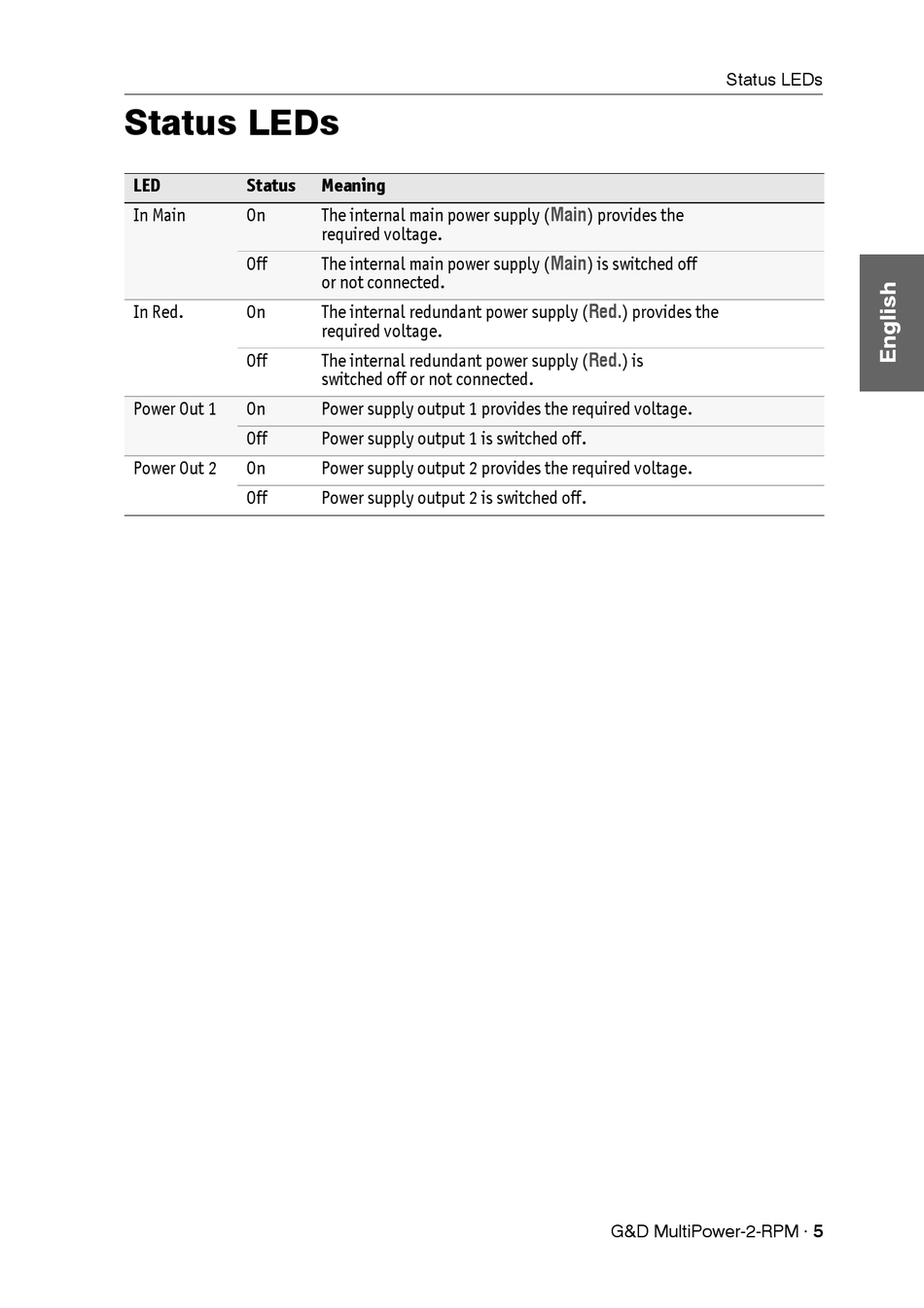

Status LEDs

LED Status
In Main On
Off
In Red. On
Off
Power Out 1 On
Off
Power Out 2 On
Off
Meaning
The internal main power supply (Main) provides the 
required voltage.
The internal main power supply (Main) is switched off 
or not connected.
The internal redundant power supply (Red.) provides the 
required voltage.
The internal redundant power supply (Red.) is 
switched off or not connected.
Power supply output 1 provides the required voltage.
Power supply output 1 is switched off.
Power supply output 2 provides the required voltage.
Power supply output 2 is switched off.
Status LEDs
G&D MultiPower-2-RPM · 5
