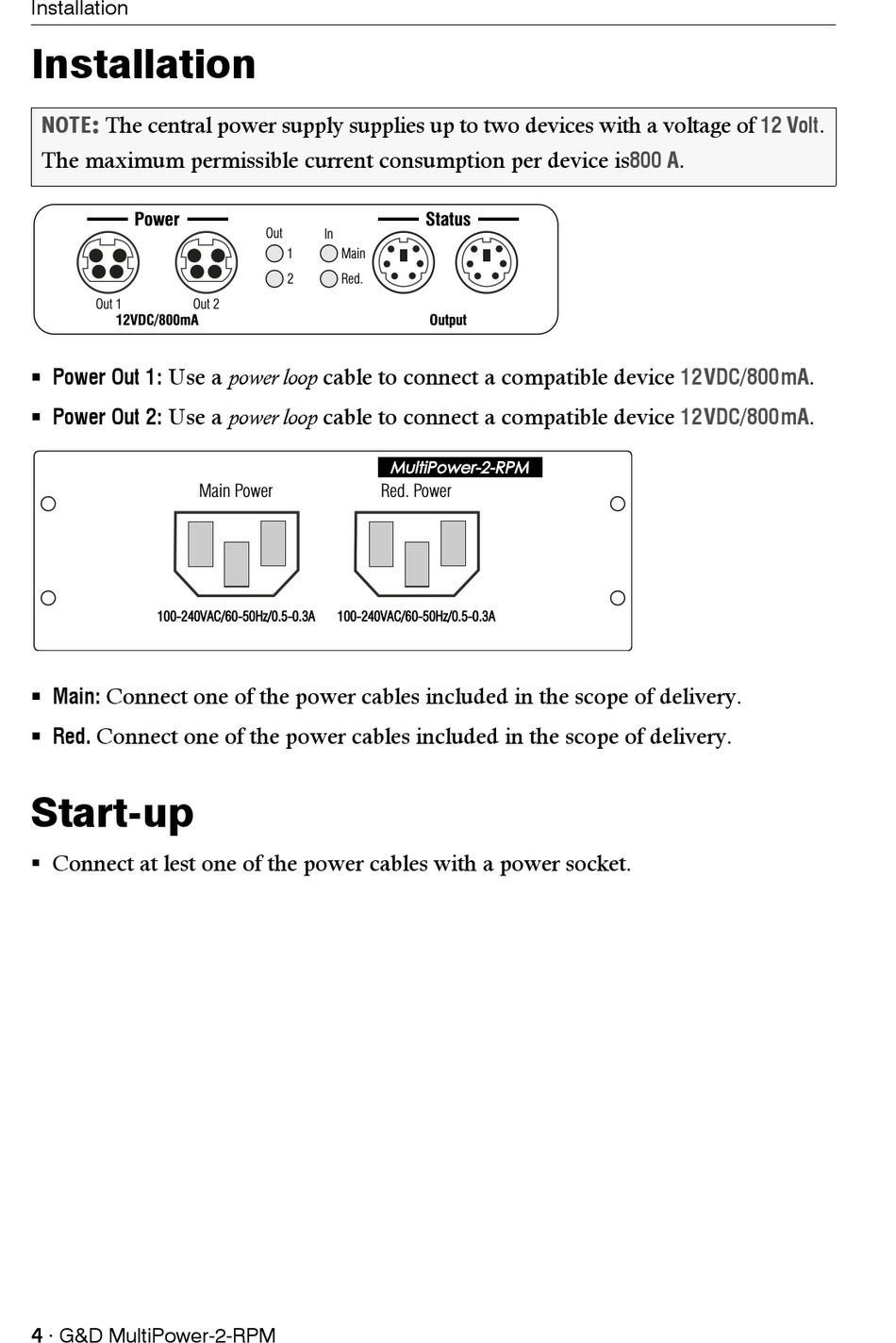

Installation

Installation
NOTE:
The central power supply supplies up to two devices with a voltage of
The maximum permissible current consumption per device is
Power
Out 1 Out 2
12VDC/800mA
 Power Out 1: Use a power loop cable to connect a compatible device
 Power Out 2: Use a power loop cable to connect a compatible device
Main Power
100-240VAC/60-50Hz/0.5-0.3A
 Main: Connect one of the power cables included in the scope of delivery.
 Red. Connect one of the power cables included in the scope of delivery.

Start-up

 Connect at lest one of the power cables with a power socket.
4 · G&D MultiPower-2-RPM
Status
Out
In
1 Main
2 Red.
Output
Red. Power
100-240VAC/60-50Hz/0.5-0.3A
12 Volt
.
800 A
12 VDC/800 mA
12 VDC/800 mA
.
.
.
