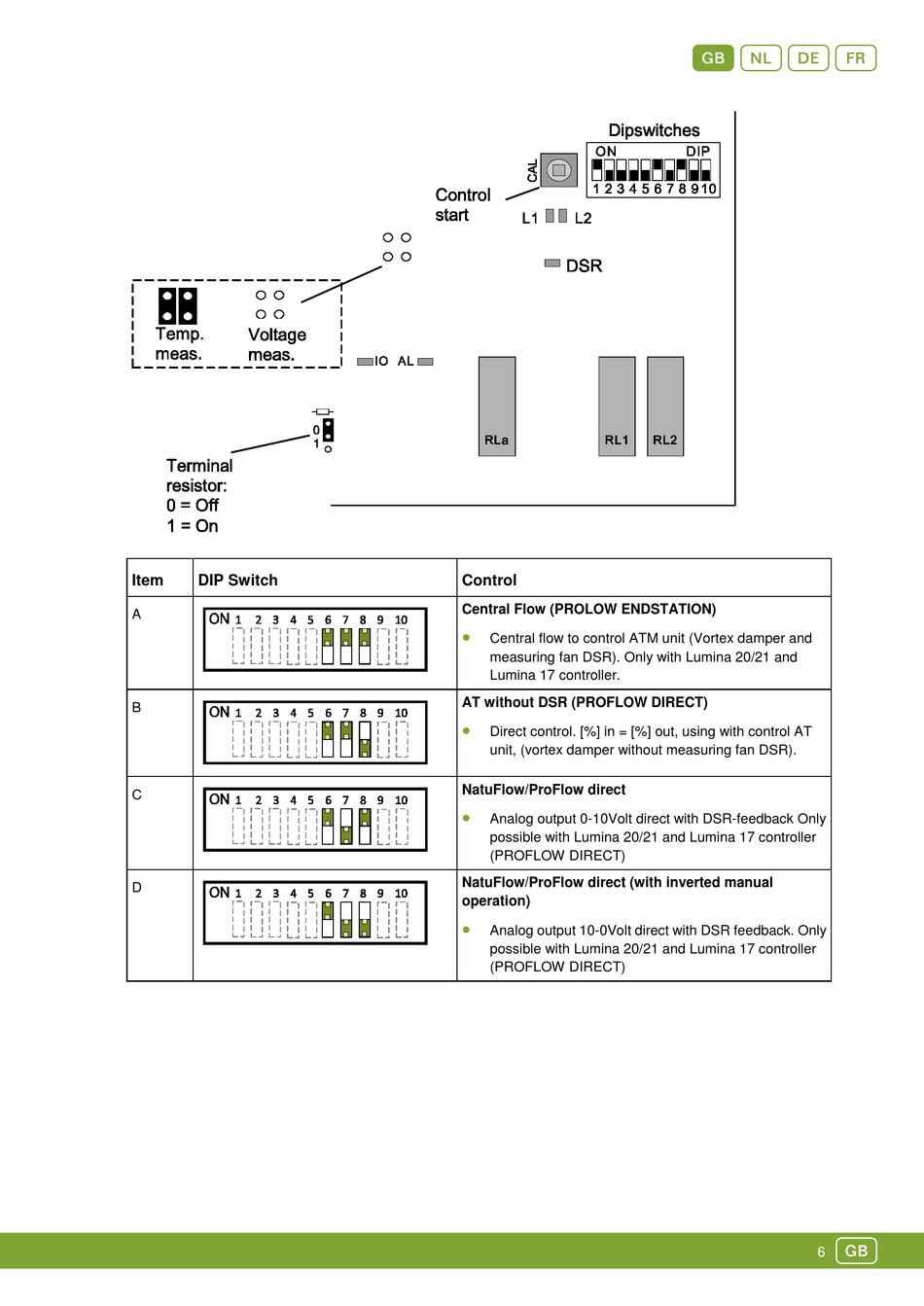

Item DIP Switch
A
B
C
D
Control
Central Flow (PROLOW ENDSTATION)
•
Central flow to control ATM unit (Vortex damper and
measuring fan DSR). Only with Lumina 20/21 and
Lumina 17 controller.
AT without DSR (PROFLOW DIRECT)
•
Direct control. [%] in = [%] out, using with control AT
unit, (vortex damper without measuring fan DSR).
NatuFlow/ProFlow direct
•
Analog output 0-10Volt direct with DSR-feedback Only
possible with Lumina 20/21 and Lumina 17 controller
(PROFLOW DIRECT)
NatuFlow/ProFlow direct (with inverted manual
operation)
•
Analog output 10-0Volt direct with DSR feedback. Only
possible with Lumina 20/21 and Lumina 17 controller
(PROFLOW DIRECT)
