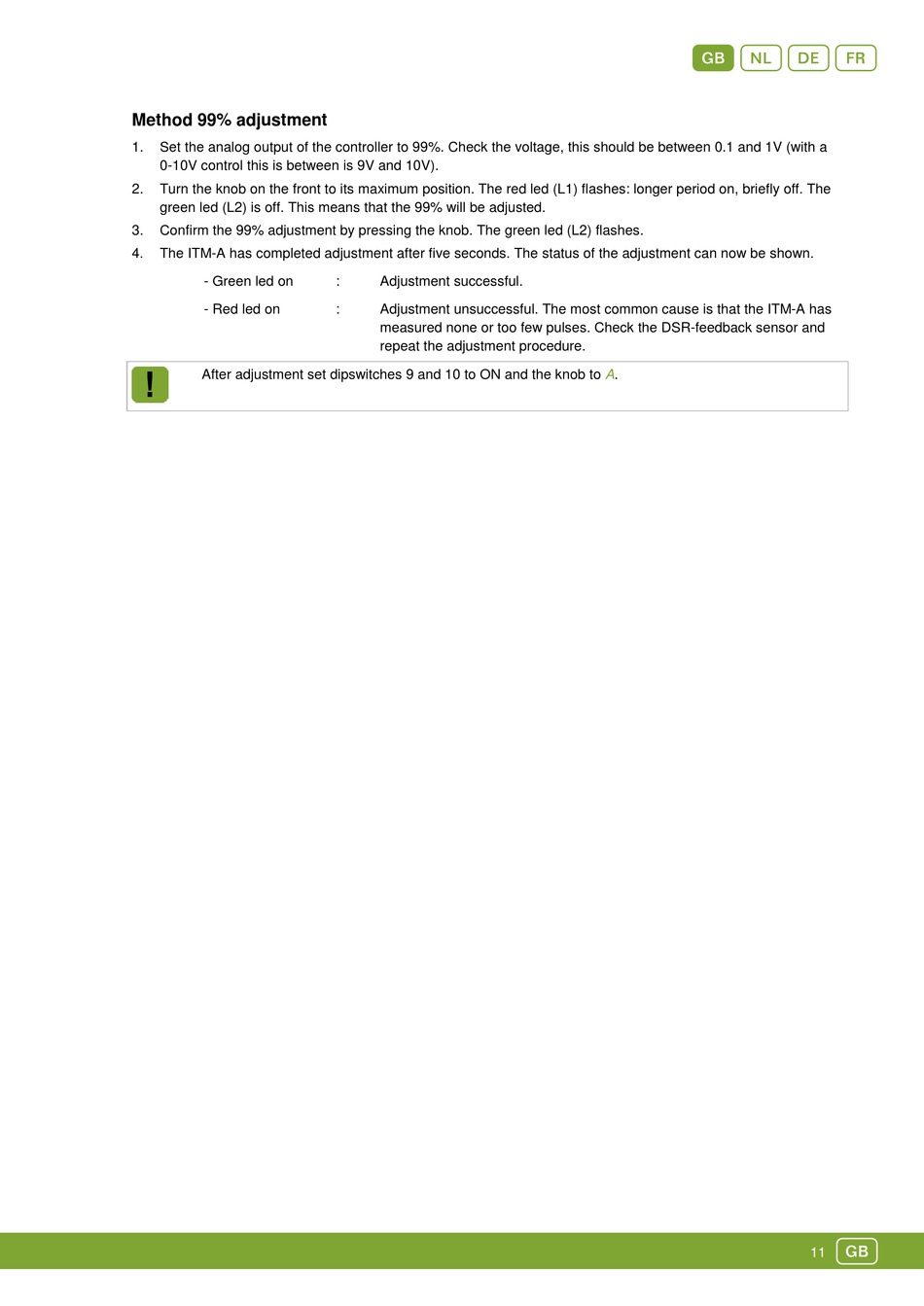

Method 99% adjustment
1.
Set the analog output of the controller to 99%. Check the voltage, this should be between 0.1 and 1V (with a
0-10V control this is between is 9V and 10V).
2.
Turn the knob on the front to its maximum position. The red led (L1) flashes: longer period on, briefly off. The
green led (L2) is off. This means that the 99% will be adjusted.
3.
Confirm the 99% adjustment by pressing the knob. The green led (L2) flashes.
4.
The ITM-A has completed adjustment after five seconds. The status of the adjustment can now be shown.
- Green led on
- Red led on
After adjustment set dipswitches 9 and 10 to ON and the knob to A.
:
Adjustment successful.
:
Adjustment unsuccessful. The most common cause is that the ITM-A has
measured none or too few pulses. Check the DSR-feedback sensor and
repeat the adjustment procedure.
