7.

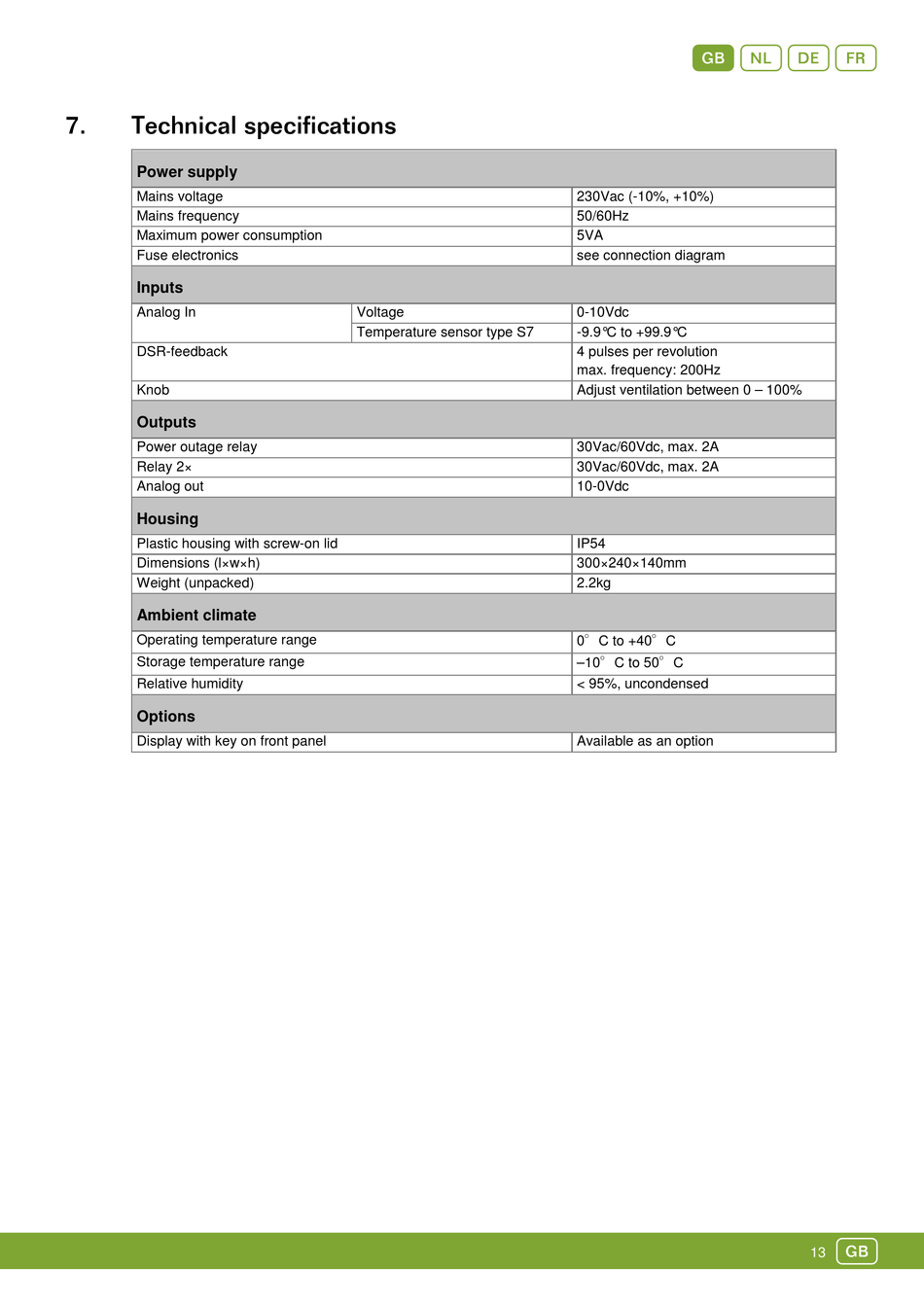

Technical specifications

Power supply
Mains voltage
Mains frequency
Maximum power consumption
Fuse electronics
Inputs
Analog In
DSR-feedback
Knob
Outputs
Power outage relay
Relay 2×
Analog out
Housing
Plastic housing with screw-on lid
Dimensions (l×w×h)
Weight (unpacked)
Ambient climate
Operating temperature range
Storage temperature range
Relative humidity
Options
Display with key on front panel
Voltage
Temperature sensor type S7
Gndf
230Vac (-10%, +10%)
50/60Hz
5VA
see connection diagram
0-10Vdc
-9.9°C to +99.9°C
4 pulses per revolution
max. frequency: 200Hz
Adjust ventilation between 0 – 100%
30Vac/60Vdc, max. 2A
30Vac/60Vdc, max. 2A
10-0Vdc
IP54
300×240×140mm
2.2kg
0°C to +40°C
–10°C to 50°C
< 95%, uncondensed
Available as an option
