2.

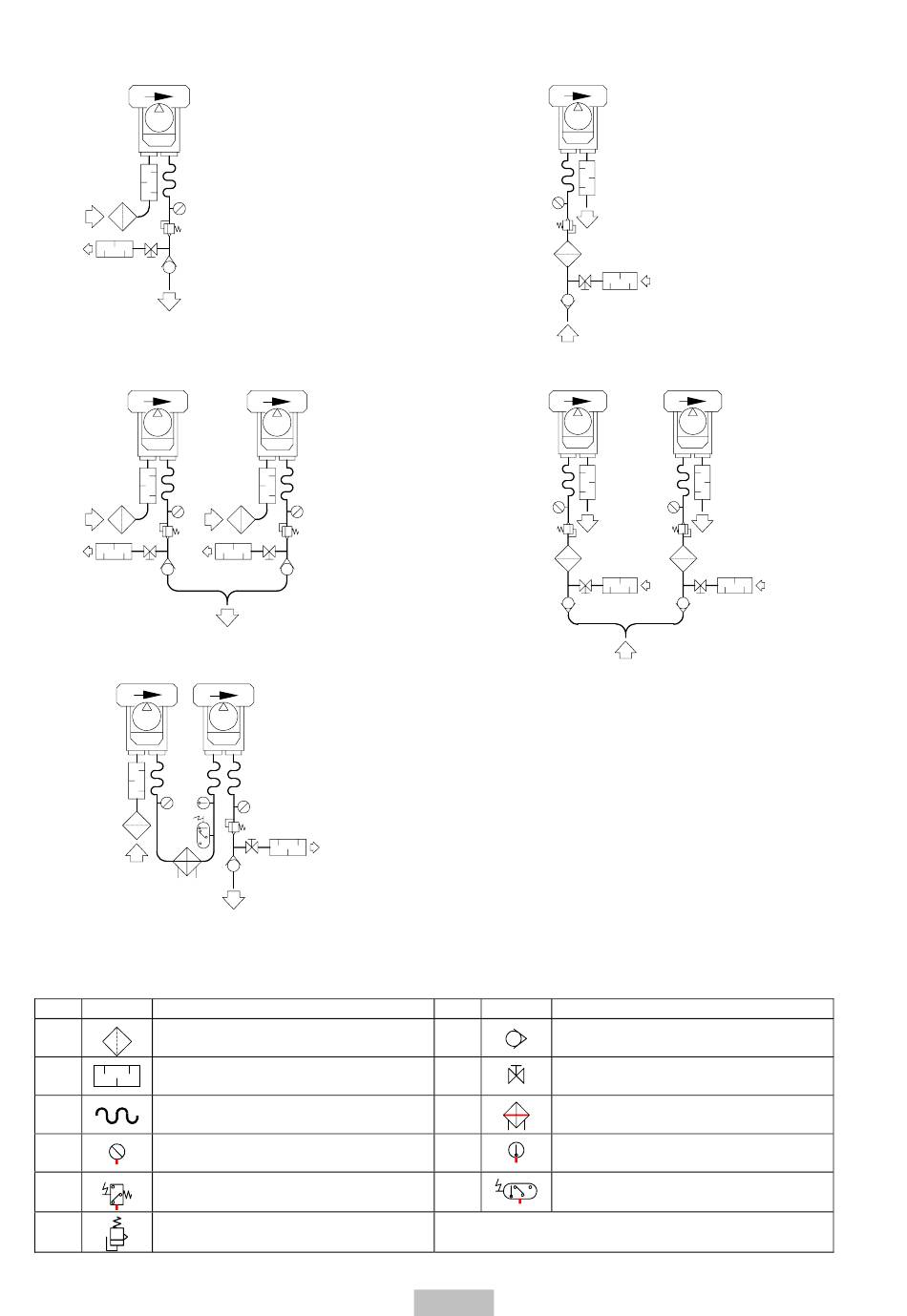

INSTALLATION SKETCHES

2.1

PRESSURE SERVICE

2.2

PARALLEL PRESSURE SERVICE

2.3

SERIES PRESSURE SERVICE

2.6

LIST ACCESSORIES

Item Denomination
1 Filter – Inline filter
(2) Silencer
3 Flexible coupling
4 Pressure – Vacuum gauge
5 Pressure – Vacuum switch
6 Safety valve
2.4

VACUUM SERVICE

2.5

PARALLEL VACUUM SERVICE

Item Denomination
7 Non return valve
8 Valve
(9) Cooler
(10) Thermometer
(11) Temperature switch
(x) IF NECESSARY
GB - 14/38
