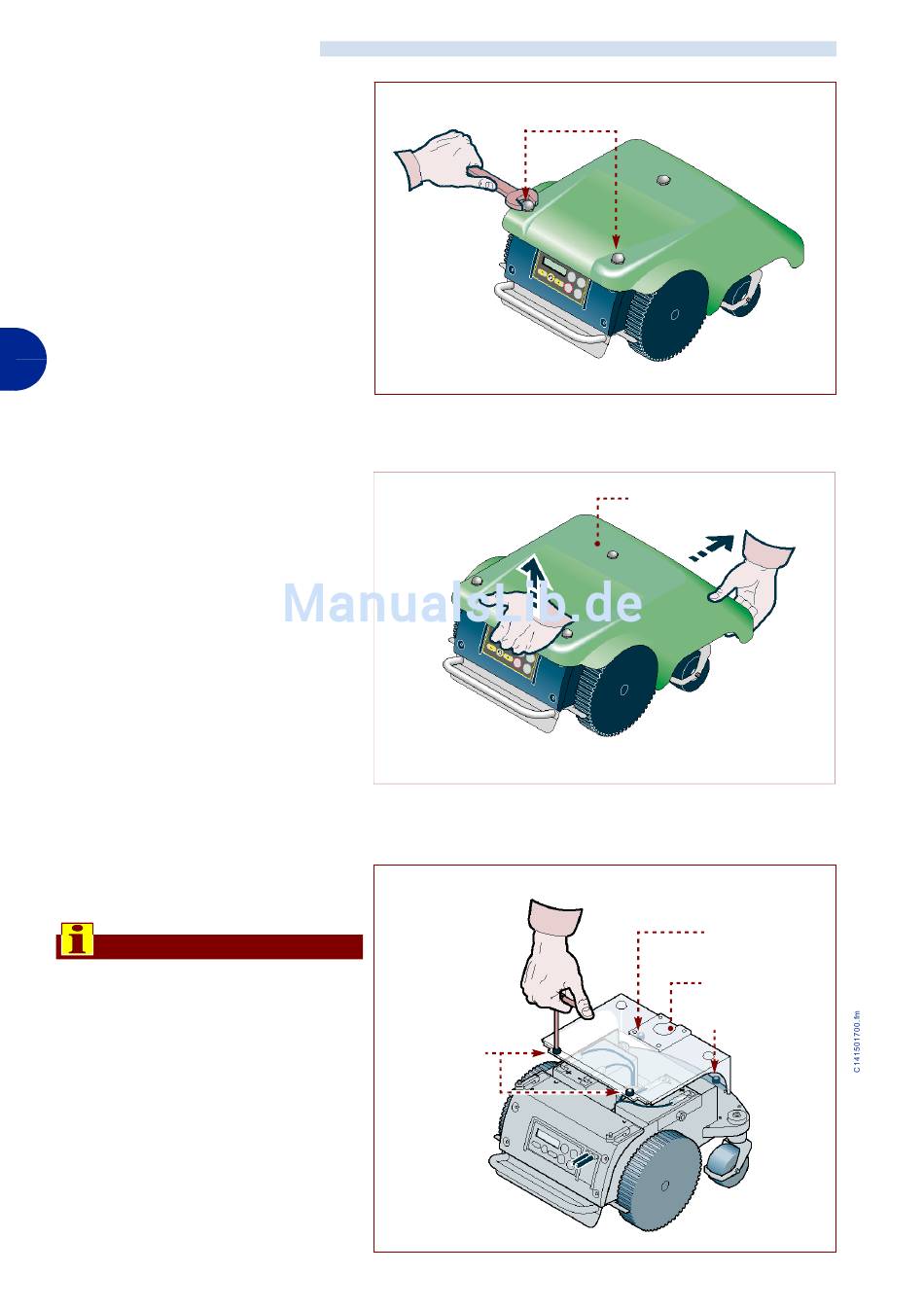

BATTERIES REPLACEMENT

1-Stop the robot in safety condi-
tions (see "Robot safety stop").
2-Undo the knobs (A).
GB
3-Remove the hood (B).
4-Undo the bolts (C) and remove
the guard (D).
Important
Batteries replacement should be
carried out relative to the type
installed (lithium or lead).
Recharging knobs (A)
screw (C)
