Manual

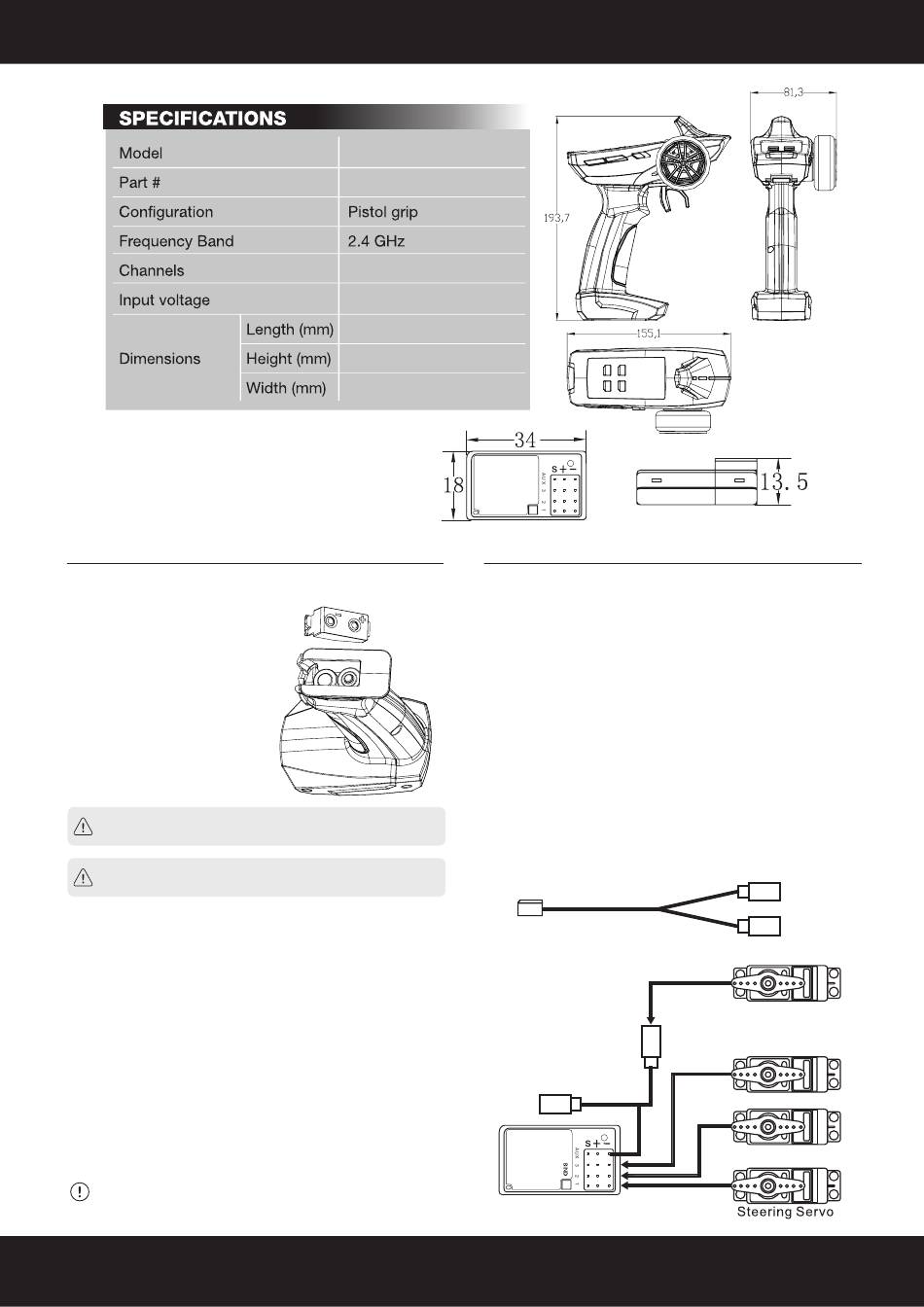

Battery Installation
Using the AA batteries or NIMH batteries, when the voltage
is lower than 4.5V ±0.2, the buzzer sounds continuously ,
and the LED should start flashing.
1. R emove the battery cover
from the transmitter.
2. I nser t four new AA batteries
according to the polarity
markings on the battery holder.
3. R einstall the bat tery cover.
WARNING: DO NOT ATTEMPT TO CHARGE NON-RECHARGEABLE
BATTERIES, Y OU MAY CAUSE AN EXP LOSION.
WARNING: PLEASE DON'T REVERSE THE BATTERY,OR IT WILL
BURN OUT THE PCB
Connection
•
Channel 1: Cont rolled by the wheel, connect to a se rvo
for steering.
•
Channel 2: Cont rolled by the trigger, connect to the
ESC or a ser vo for throttle/brak e.
•
Channel 3: Cont rolled by the adjustment knob
(0-100%) for optional use. This po rt can also be used
to connect a transponder d evice used in racing.
• A UX (Channel 4): Cont rolled by button (ON/OFF) for
optional use. This po rt is most commonly used for LED
light kits. Use this po rt to connect an external battery
for use with gas powered vehicles.
CAUTION: NEVER CONNECT A BATTERY WITH VOLTAGE
HIGHER THAN 8.0V TO THE RECEIVER, DOING SO COULD
DAMAGE THE ELECT RONICS.
22
XC4R
4CH
AA x4
155.10
193.70
81.30
Receiver Installation & Connection
Installation
To achieve full operating range with your radio system it
is critical that the recei ver antenna be undamaged and
installed properly. It should be installed with as much of
the antenna as possible in a v ertical position. The end of
the antenna should be contained inside an an tenna tube.
When installing:
•
Ensure there are no kinks in the an tenna or antenna
tube.
• N ever fold the end of the antenna over the tube, this
will reduce the operating range of the sys tem and
damage the antenna.
•
Ensure the receiv er is mounted securely or padded
against har d impacts.
MODSTER XC Maximum
Y-line
CH4
CH3
connect to
receiver battery
CH2
CH1
R R e e c c e e i i v v e e r r
Channel 4 Servo
Channel 3 Servo
Throttle Servo
www.modster.at
