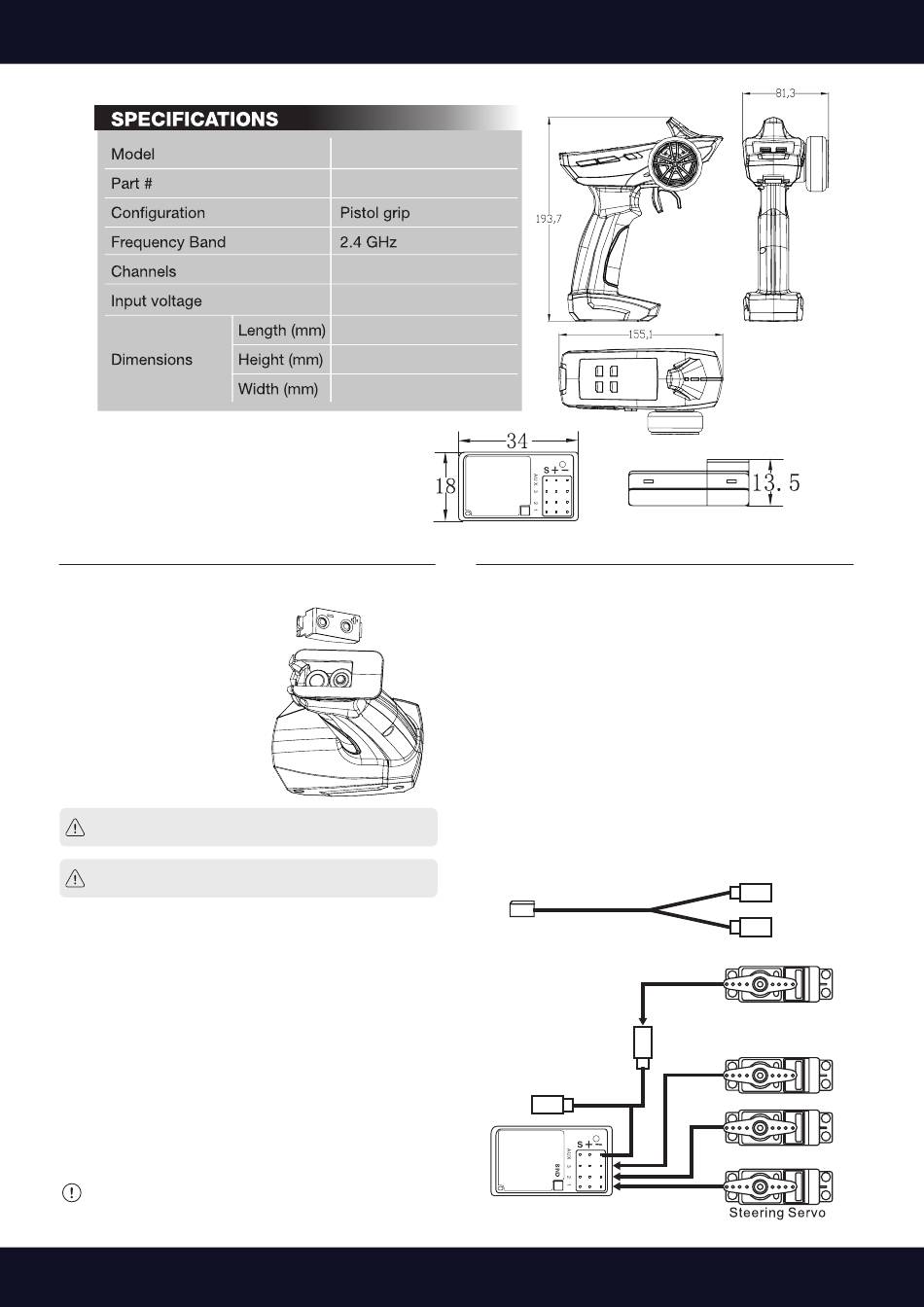

Battery Installation

Using the AA batteries or NIMH batteries, when the voltage
is lower than 4.5V ±0.2, the buzzer sounds continuously,
and the LED should start flashing.
1. R emove the battery cover
from the transmitter.
2. I nsert four new AA batteries
according to the polarity
markings on the battery holder.
3. R einstall the battery cover.
WARNING: DO NOT ATTEMPT TO CHARGE NON-RECHARGEABLE
BATTERIES, YOU MAY CAUSE AN EXPLOSION.
WARNING: PLEASE DON'T REVERSE THE BATTERY,OR IT WILL
BURN OUT THE PCB
Connection
• Channel 1: Controlled by the wheel, connect to a servo
for steering.
• Channel 2: Controlled by the trigger, connect to the
ESC or a servo for throttle/brake.
• Channel 3: Controlled by the adjustment knob
(0-100%) for optional use. This port can also be used
to connect a transponder device used in racing.
• A UX (Channel 4): Controlled by button (ON/OFF) for
optional use. This port is most commonly used for LED
light kits. Use this port to connect an external battery
for use with gas powered vehicles.
CAUTION: NEVER CONNECT A BATTERY WITH VOLTAGE
HIGHER THAN 8.0V TO THE RECEIVER, DOING SO COULD
DAMAGE THE ELECTRONICS.
www.modster.at
XC4R
4CH
AA x4
155.10
193.70
81.30
Receiver Installation & Connection
Installation
To achieve full operating range with your radio system it
is critical that the receiver antenna be undamaged and
installed properly. It should be installed with as much of
the antenna as possible in a vertical position. The end of
the antenna should be contained inside an antenna tube.
When installing:
• Ensure there are no kinks in the antenna or antenna
tube.
• N ever fold the end of the antenna over the tube, this
will reduce the operating range of the system and
damage the antenna.
• Ensure the receiver is mounted securely or padded
against hard impacts.
MODSTER DASHER V2
Y-line
CH4
CH3
connect to
receiver battery
CH2
CH1
R R e e c c e e i i v v e e r r
Channel 4 Servo
Channel 3 Servo
Throttle Servo
