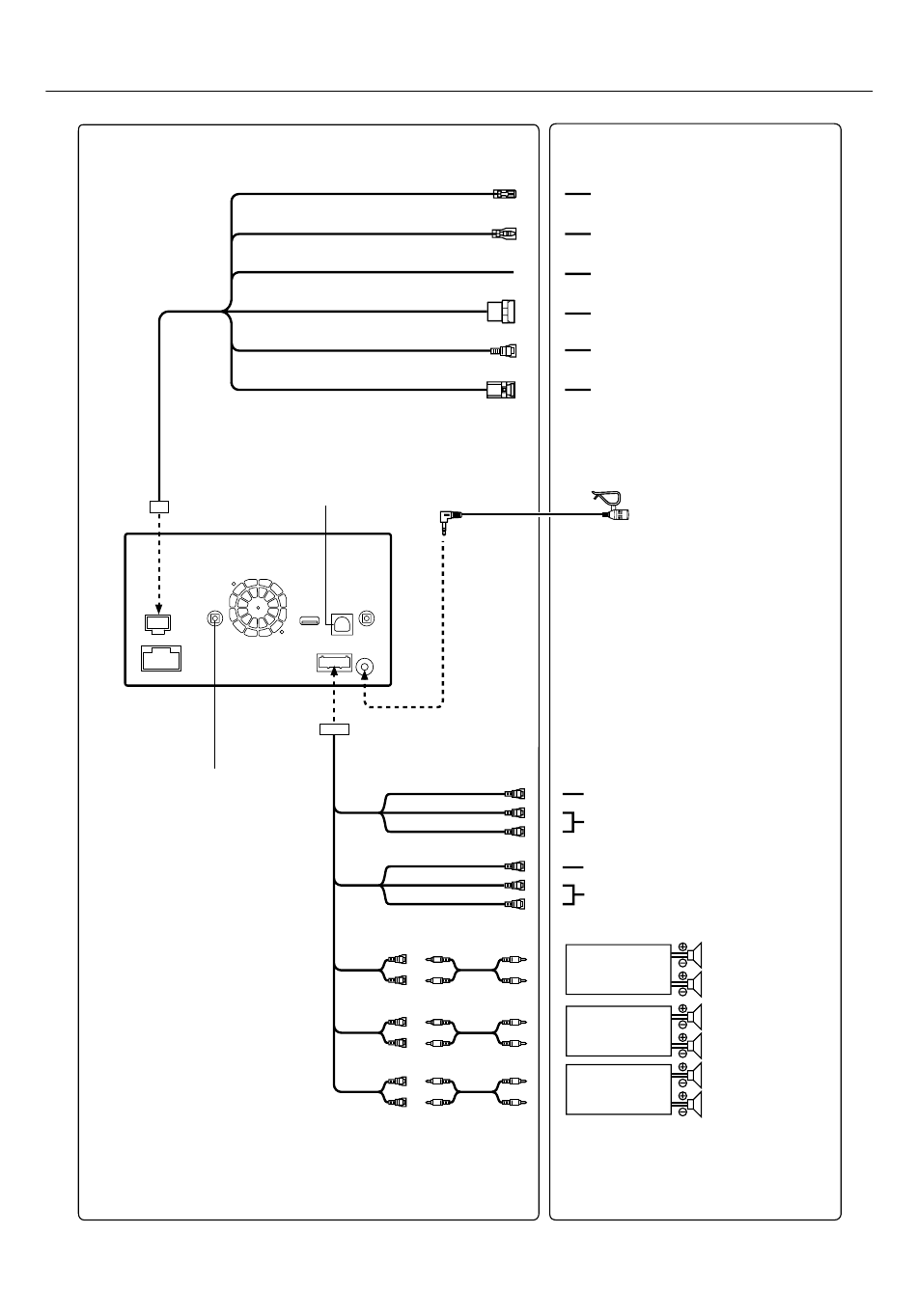

Connections 2/2
To steering remote control interface box
14
-EN
REMOTE OUT
(Brown)
REMOTE IN
(Brown)
SPEED SENSOR
(Green/White)
CAMERA1
CAMERA2
CAMERA SW
Connect this to the optional Vehicle
Display Interface box
To remote input lead
To remote output lead
To the vehicle speed pause line
To Front/Rear camera
To Rear/Other camera
Not used
(Yellow)
To Video Output terminal
(Red)
To Audio Output terminals (R, L)
(White)
(Yellow)
To Video Input terminal
(Red)
To Audio Input terminals (R, L)
(White)
Amplifier
Amplifier
Amplifier
Microphone (Included)
Rear Left
Rear Right
Front Left
Front Right
Subwoofers
