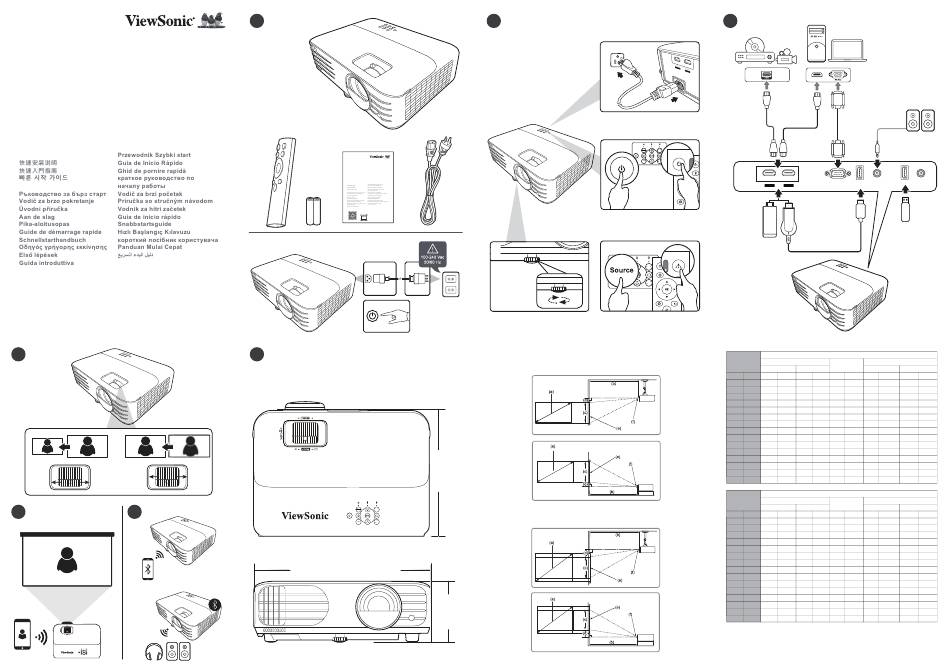

ViewSonic K701-4K Schnellstart Handbuch

K701-4K
Home Projector
Quick Start Guide
クイックスタートガイド
4
5 6
ENU EXIT LAN
iOS / Android
SO E OLO
ODE
1
K701-4K
Home Projector
Quick Start Guide
クイックスタートガイド
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
7
Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm
6-1
ENU LAN
EXIT
OLO
SO E
ODE
312 mm
6-2
2
1
2
4
3
• 16:9 image on a 16:9 screen
222 mm
• 16:9 image on a 4:3 screen
108 mm
3
ENU LAN
EXIT
SO E OLO
ODE
HDMI 1 HDMI 2
HDCP2.2 HDCP2.2
ENU
LAN
EXIT
OLO
SO E
ODE
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm inch
60 1524 59 1496.8 77
70 1778 69 1746.3 89
80 2032 79 1995.8 102
90 2286 88 2245.3 115
100 2540 98 2494.7 128
110 2794 108 2744.2 140
120 3048 118 2993.7 153
130 3302 128 3243.2 166
140 3556 138 3492.6 179
150 3810 147 3742.1 192
160 4064
157 3991.6 204
170 4318 167 4241.1 217
180 4572 177 4490.5 230
190 4826 187 4740.0 243
200 5080 196 4989.5 255
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm inch
60 1524 54 1373.9 70
70 1778 63 1602.9 82
80 2032 72 1831.9 94
90 2286 81 2060.9 105
100 2540 90 2289.9 117
110 2794 99 2518.9 129
120 3048 108 2747.8
141
130 3302 117 2976.8 152
140 3556 126 3205.8 164
150 3810 135 3434.8 176
160 4064 144 3663.8 188
170 4318 153 3892.8 199
180 4572 162 4121.8 211
190 4826 171 4350.7 223
200 5080 180 4579.7 234
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
AUDIO OUT
RS-232 USB 5V/1.5A USB 5V/1.5A
(Service)
16:9 image on a 16:9 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
mm inch mm inch mm inch mm
1945.9 29 747 2.9 74.7 2.9 74.7
2270.2 34 872 3.4 87.2 3.4 87.2
2594.5 39 996 3.9 99.6 3.9 99.6
2918.8 44 1121 4.4 112.1 4.4 112.1
3243.2 49 1245 4.9 124.5 4.9 124.5
3567.5 54 1370 5.4 137.0 5.4 137.0
3891.8 59 1494 5.9 149.4 5.9 149.4
4216.1 64 1619 6.4 161.9 6.4 161.9
4540.4 69 1743 6.9 174.3 6.9 174.3
4864.7 74 1868 7.4 186.8 7.4 186.8
5189.1 78 1992 7.8 199.2 7.8 199.2
5513.4 83 2117 8.3 211.7 8.3 211.7
5837.7 88 2241
8.8 224.1 8.8 224.1
6162.0 93 2366 9.3 236.6 9.3 236.6
6486.3 98 2491 9.8 249.1 9.8 249.1
16:9 image on a 4:3 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
mm inch mm inch mm inch mm
1786.1 27 686 2.7 68.6 2.7 68.6
2083.8 32 800 3.2 80.0 3.2 80.0
2381.5 36 914 3.6 91.4 3.6 91.4
2679.1 41 1029 4.1 102.9 4.1 102.9
2976.8 45 1143 4.5 114.3 4.5 114.3
3274.5 50 1257 5.0 125.7 5.0 125.7
3572.2 54 1372 5.4 137.2 5.4 137.2
3869.9 59
1486 5.9 148.6 5.9 148.6
4167.6 63 1600 6.3 160.0 6.3
160.0
4465.2 68 1715 6.8 171.5 6.8 171.5
4762.9 72 1829 7.2 182.9 7.2 182.9
5060.6 77 1943 7.7 194.3 7.7 194.3
5358.3 81 2057 8.1 205.7 8.1 205.7
5656.0 86 2172 8.6 217.2 8.6 217.2
5953.6 90 2286 9.0 228.6 9.0 228.6
