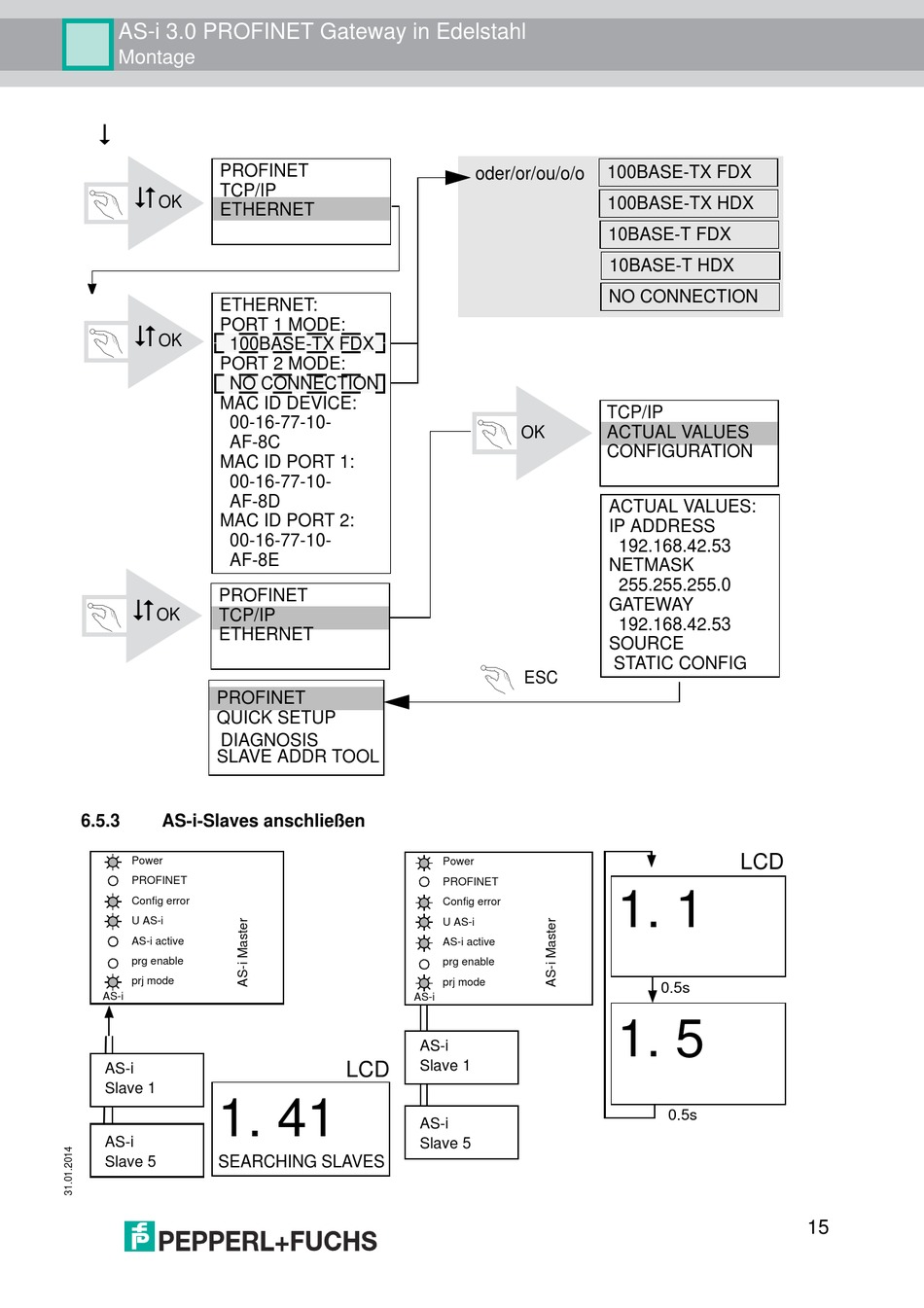

AS-i 3.0 PROFINET Gateway in Edelstahl
Montage
"
PROFINET
!
TCP/IP
OK
ETHERNET
ETHERNET:
PORT 1 MODE:
!
OK
100BASE-TX FDX
PORT 2 MODE:
NO CONNECTION
MAC ID DEVICE:
00-16-77-10-
AF-8C
MAC ID PORT 1:
00-16-77-10-
AF-8D
MAC ID PORT 2:
00-16-77-10-
AF-8E
PROFINET
!
OK TCP/IP
ETHERNET
PROFINET
QUICK SETUP
DIAGNOSIS
SLAVE ADDR TOOL
6.5.3 AS-i-Slaves anschließen
Power
PROFINET
Config error
U AS-i
AS-i active
prg enable
prj mode
AS-i
AS-i
Slave 1
1. 41
AS-i
Slave 5 SEARCHING SLAVES
oder/or/ou/o/o
Power
PROFINET
Config error
U AS-i
AS-i active
prg enable
prj mode
AS-i
AS-i
Slave 1
LCD
AS-i
Slave 5
100BASE-TX FDX
100BASE-TX HDX
10BASE-T FDX
10BASE-T HDX
NO CONNECTION
TCP/IP
ACTUAL VALUES
OK
CONFIGURATION
ACTUAL VALUES:
IP ADDRESS
192.168.42.53
NETMASK
255.255.255.0
GATEWAY
192.168.42.53
SOURCE
STATIC CONFIG
ESC
1. 1
0.5s
1. 5
0.5s
LCD
15
