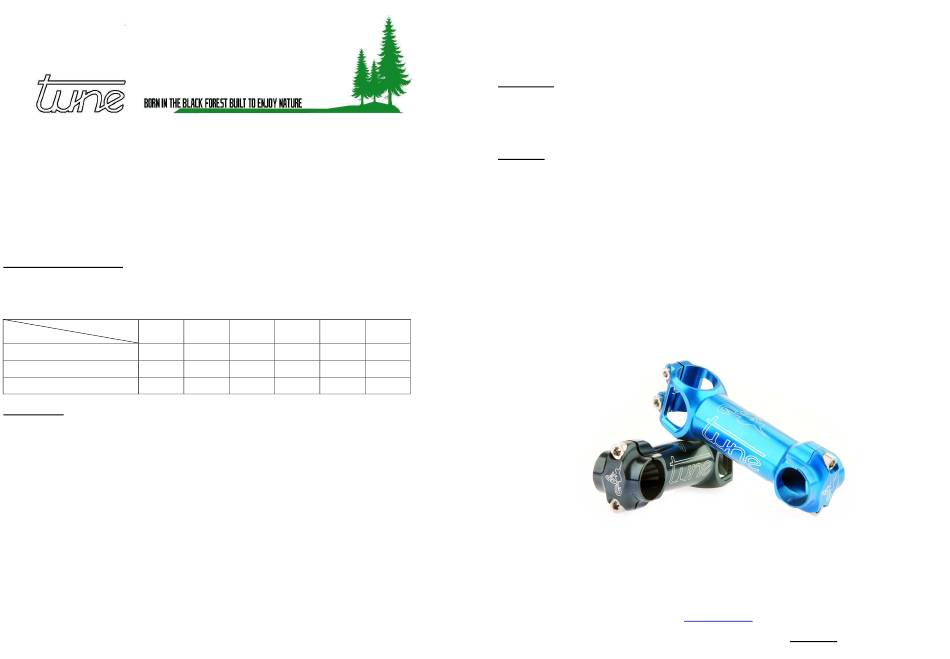

Geiles Teil stem
• MTB (Ø25.4 mm)
• Road (Ø 26.0mm)
• Oversize (Ø 31.8 mm)
Attention! Please read the entire manual carefully before using the stem!
Technical Specifications:
Material:
stem & front cap: Aluminium 7075 (CNC machined)
Bolts:
Titanium
Stem height:
39.5 mm
Weight:
length [mm]
60
Typ
Oversize (Ø31,8mm)
113
MTB (Ø25,4mm)
99
Road (Ø 26,0mm)
104
Instructions:
This stem only fits 1 1/8" (28.6mm) steer tubes and 1" steer tubes when using a reduction shim.
Handlebars must have the following diameter at the stem clamping area (+/- 1 mm):
MTB-handlebars: 25.4 mm
Road bike handlebars: 26.0 mm
Oversize handlebars (road & MTB): 31.8 mm
Do not use this stem if you are not absolutely certain it fits your handlebar!
The upper end of the steer tube must not be more then 2mm below the upper edge of the stem. The steer
tube must therefore protrude at least 37.5 m from the uppermost bearing cup/spacer.
Do not grease the clamping areas (neither handlebar nor steer tube)
Bolts that have been tightened too much need to be replaced because they damage the thread of the stem.
Please adhere to the torque values given here:
For carbon handlebars, we recommend using the lowest value.
Torque M6 bolts: 8.5-11 Nm
Torque M5-bolt: 5-6.5 Nm
The head of the M5 bolt is very low and requires a high-quality, exactly made tool.
In general, always follow the installation instructions of the fork and handlebar manufacturer!
Manual
85
95
110
120
124
130
138
145
112
121
127
140
116
123
132
136
Check the stem for damage from time to time and exchange damaged parts, if necessary.
Depending on how heavy damage caused by crashes etc. is, the lifespan of your stem may either be
reduced or it may be necessary to replace it completely (in case of micro-fissures). Damage to the surface
and the resulting corrosion (grey oxidation) should not be underestimated!
Spare parts can be bought from TUNE.
Installation:
Before tightening the bolts, some thread lock compound should be put on the thread and the bottom side of
the bolt heads should be treated with neutral grease. Tighten the bolts alternately to achieve an even torque
distribution.
Tip: only use Allen keys of the highest quality (with very little play). Tools with ball heads or similar should
not be used!
Warranty:
We grant a two year warranty from the date of purchase on TUNE products. Warranty claims can only be
made if a copy of an original dealer invoice is presented. The warranty includes material defects and
production errors, but not damages caused by
- normal wear
- improper use
- disregarding the service instructions/manual
- unprofessional repair and maintenance work
Warranty claims have to be sent in to the local TUNE distributor and are subject to the assessment of TUNE
U. Fahl.
Based on this warranty, the company TUNE U. Fahl is not liable for compensation, especially not for indirect
damage caused by accidents, collateral damage and consequential damage.
We cannot guarantee a consistency of colors because colors will be bleached by sunlight.
The satisfaction of our customers is very important to us! Therefore, we usually handle problems with our
products with goodwill, even if the case is not covered by our warranty. We are known for our quick handling
of reclamation issues.
Please send us only clean parts and include a brief cover letter with a description of the problem or
defect, your contact information and a copy of the invoice.
135
-
153
145
Tune U. Fahl, Im Mittelfeld 18, 79426 Buggingen, GERMANY
Phone: 0049 (0)7631 - 74 807 - 40
Fax: 0049 (0)7631 - 74 807 - 58
service@tune.de
www.tune.de
Outside Germany, please contact your country's Distributor first!
