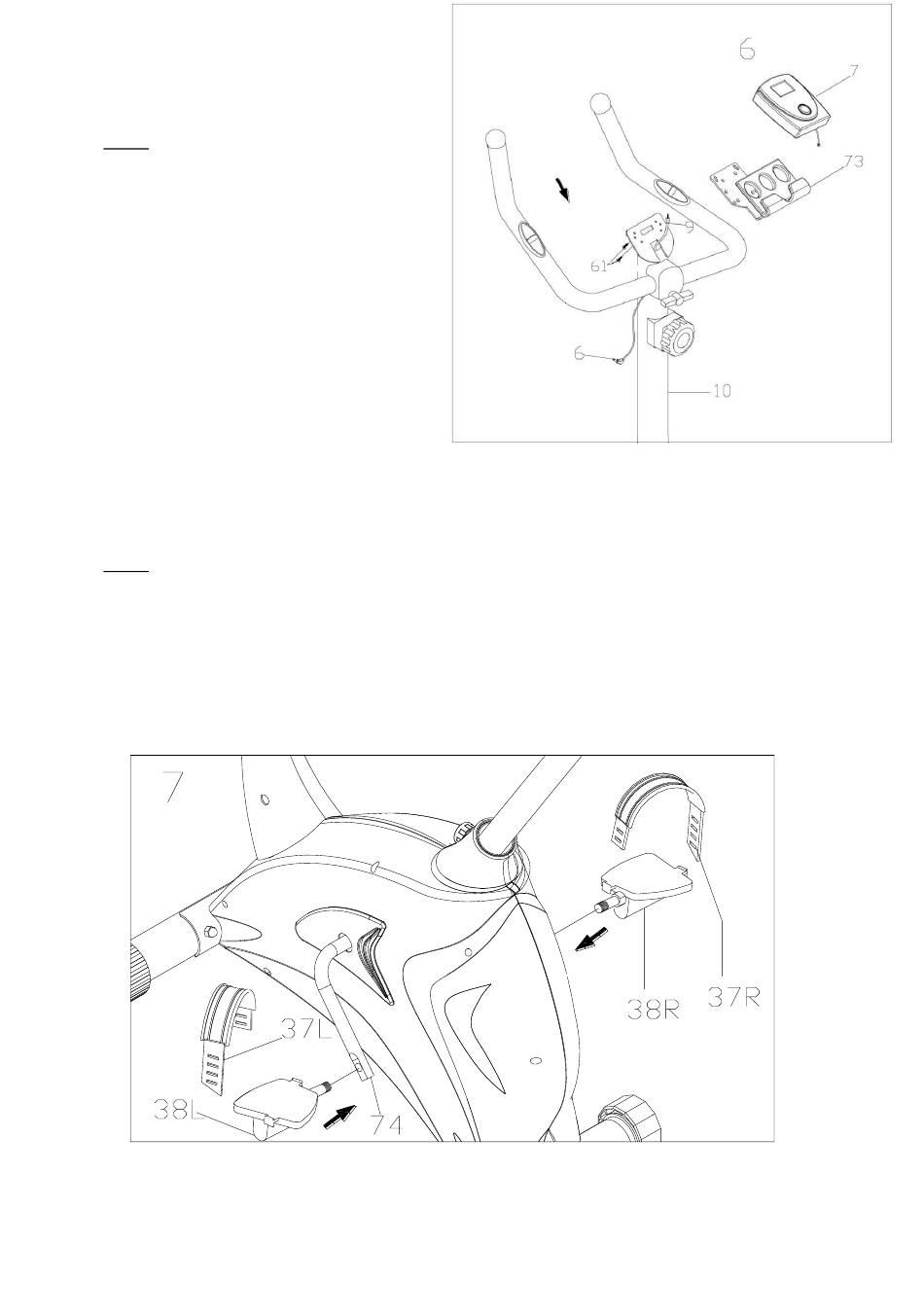

Step 6 Put meter (7) to the phone bracket (73)
and tighten with 2 pcs M5x15 countersunk
head bolt (75).
Connect the plug of middle section sensor
wire (9).
Attach the meter (7) w/phone bracket (73) set
to the top meter bracket of front post (10) and
tighten with 2pcs M5x20 round head bolt (61).
Insert the plug of hand pulse sensor wire (6) to
the pulse socket of console back (7).
Step 7 Assemble each pedal (38R i 38L) to the crank (74). Pedal „R" assemcle with crank right side,
pedal „L" assemble with crank left side..
Note: the right pedal should be threaded on clockwise. The left pedal should be threaded on
counter-clockwise.
Attach the pedal straps (38) to the pedals.
