HMS M2005 Bedienungsanleitung Seite 14

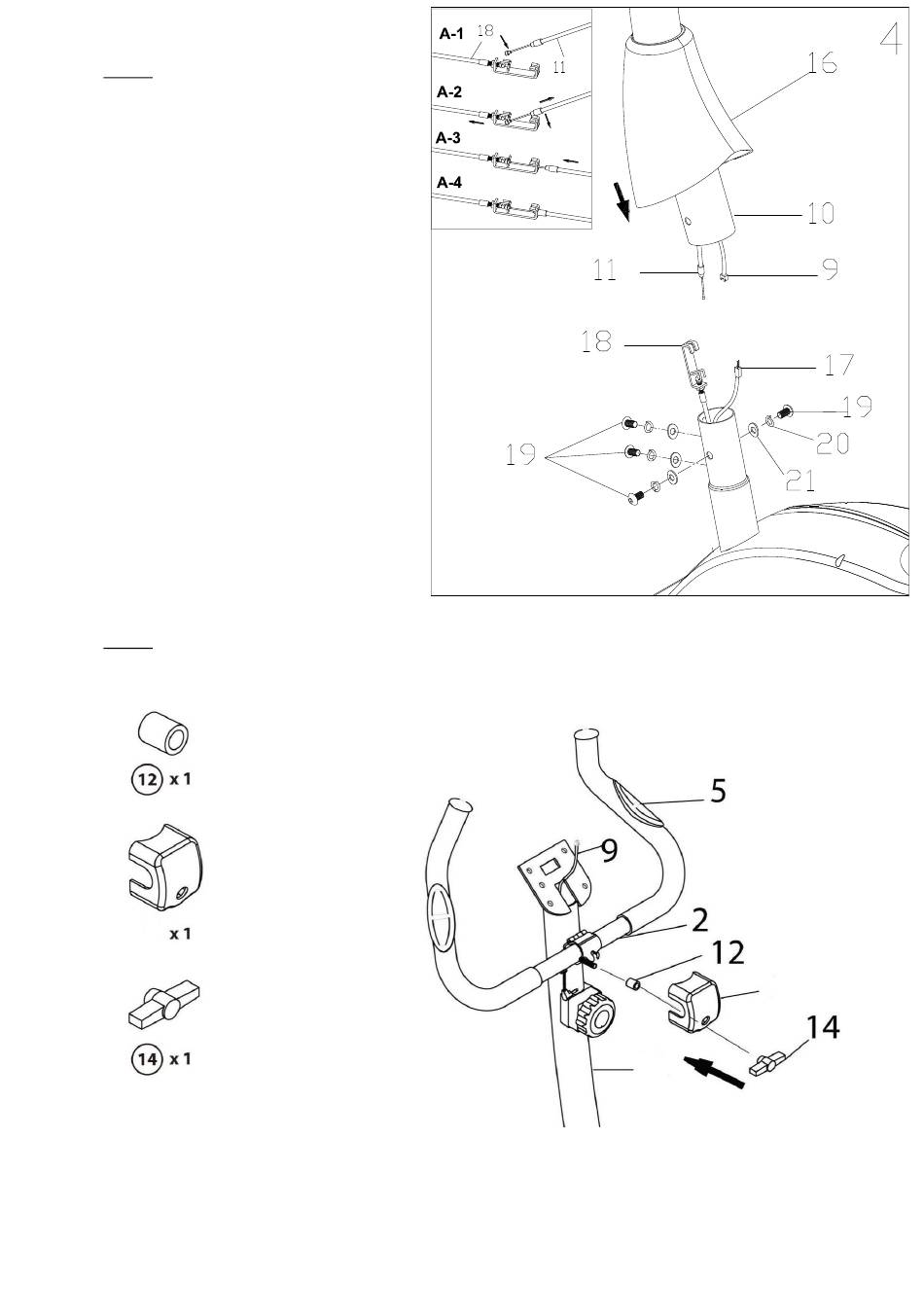

Step 4 Sonnect the middle section sensor
wire (9) of the front post with the lower
section sensor wire (17) securely. Connect
the middle section tension cable (11) to the
bracket of lower section tension cable (18).
Remowe th epre-assembled 4 allend head
bolts (19), 4 curve washers (21) and 4 sring
washers (20) form the main frame (27).
Put the front post (10) withe the
decoration cover (16) into the bottom tube
of main frame (27) and fasten with 4 allen
head bolts (19), 4 spring washers (20) and 4
curve washers (21). Please note don't
tighten allen head bolts (19) too much at
the beginning. When all parts are fixed
already, and then fasten each one piece
tightly.
Step 5 Put handlebar (2) with 2 hand pulse sensor plates (5), 2 foam grip (3) to the top 2pc clamp
bracket sets of the front post (10) and the fasten 2pcs clamb bracket sets with spacer 12), clamp
cover (13) and T-knob (14).
