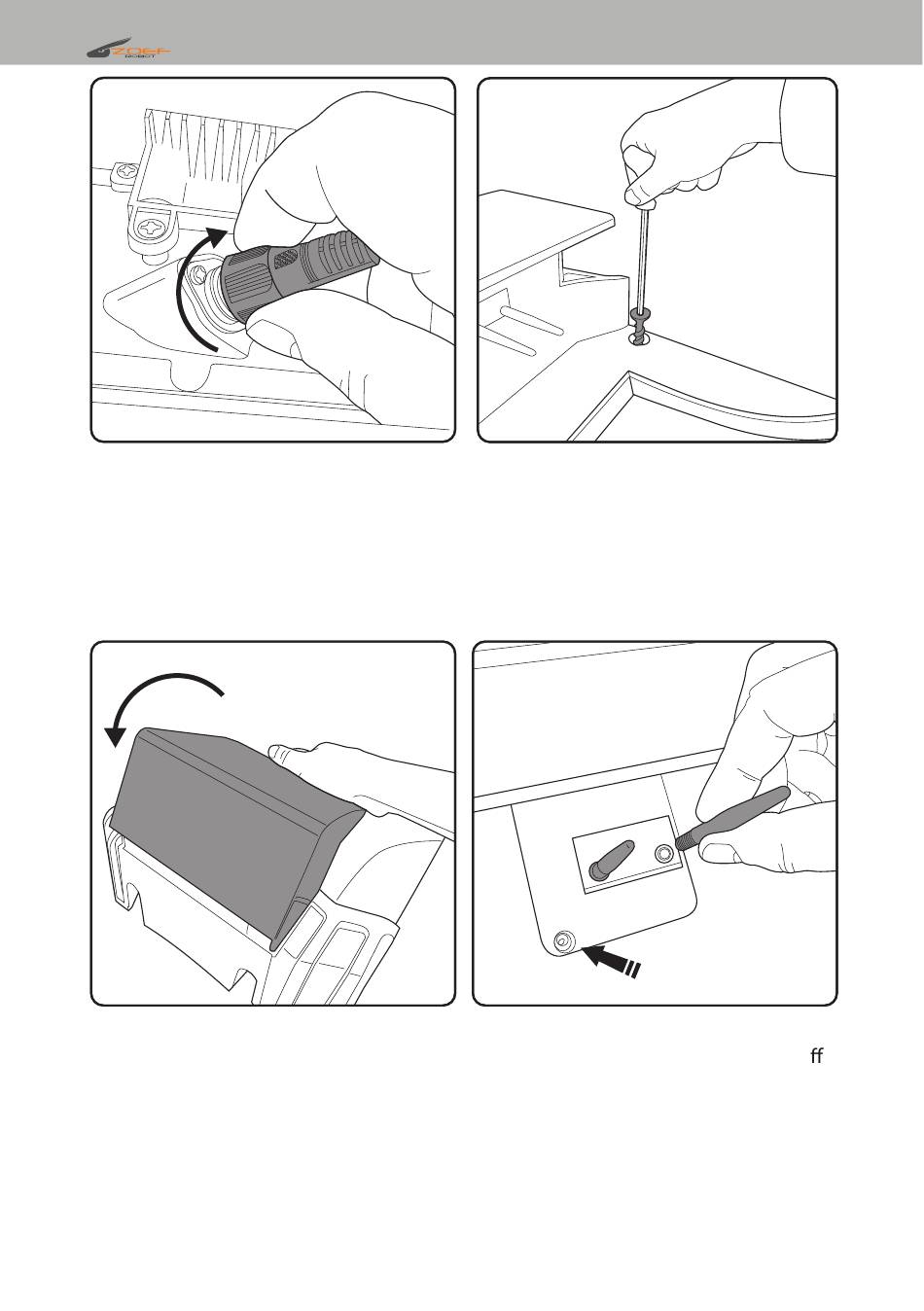

Then screw on the outer ring to secure
the cable in place and prevent water
ingress.
Push the cover back to its original
position to cover the wires and
connections from water ingress.
Once the base station has been fully wired,
it can be secured in place with the four
screws provided. Use the allen key provided
to screw them in securely ensuring they are
fully inserted and flush with the station
base. Protruding screws can hinder the
mower from locating correctly.
Making sure the power is switched o at
the socket, screw the two charging rods
base station. Note: This is where the LED
status indicator is situated. See page 22.
- 11 -
User Manual
LED status indicator
