Repairing the boundary wire
If the boundary wire gets cut or breaks for
any reason (indicated by solid red light on
charging station), you need to locate and
repair it. You will need to use one of the

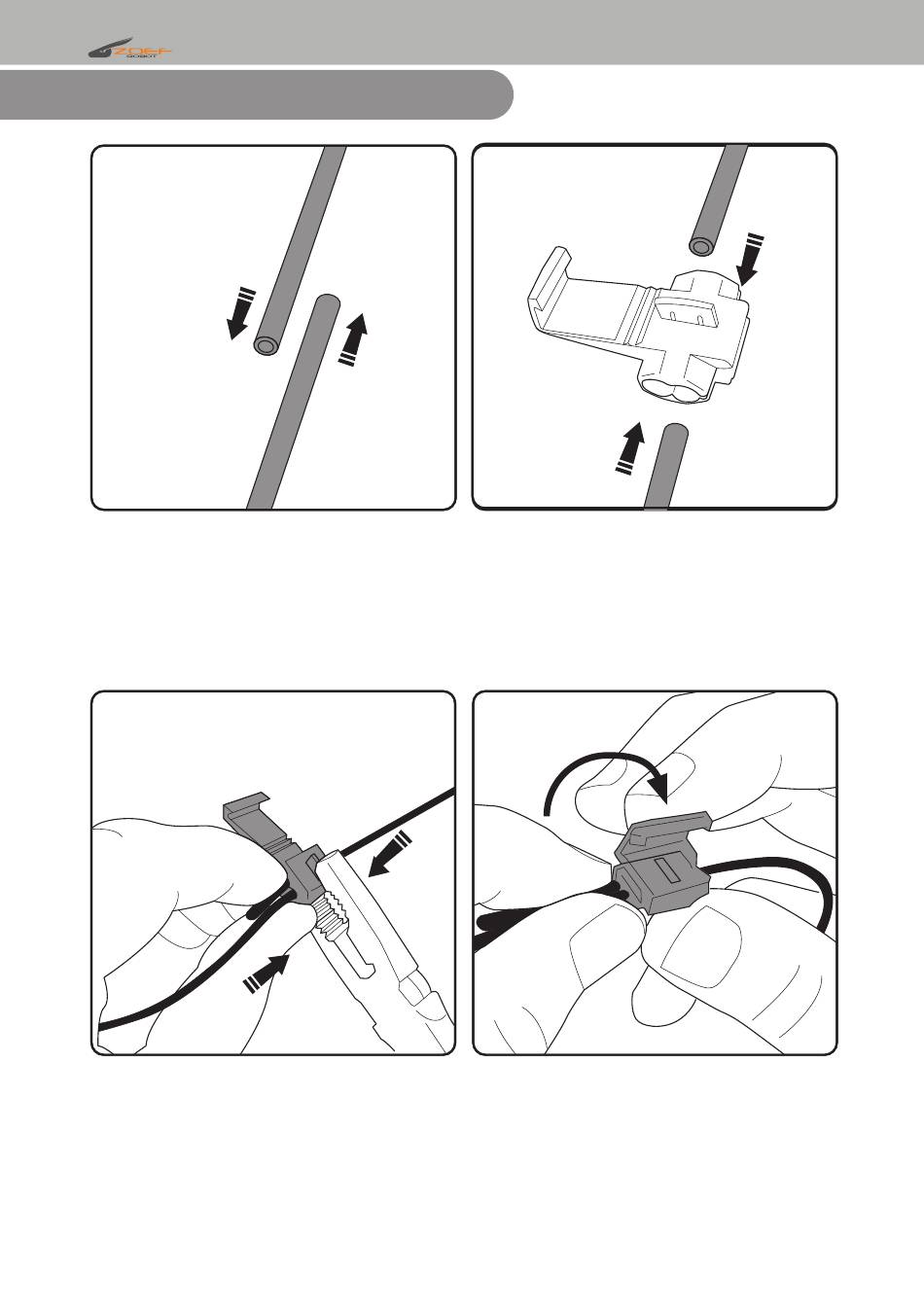

splicing clips provided. First take up the
slack in the wire so there is some overlap.
Taking a pair of pliers, crimp the metal tab
onto the inserted wires. This will form a
connection between the wires.
When the boundary wire is repaired the charging station will display a solid blue light.
If the light is still red there are more breaks in the loop, which will need locating
and repairing.
The clip has two channels in it. Push one
end into one channel and the other end
into the other. The wire needs to go right
in, and can even protrude from the other
end.
Close the cover of the clip until it clicks
securely in place. You will then need to
ensure the clip does not protrude on your
lawn and risk being cut by the mower, by
embedding it in the soil.
