| DISPLAY OVERVIEW

Cartridge
MM
MC
Not for RCA 3 and
XLR 2
Load on RCA input
100KΩ 220Ω
75KΩ 100Ω
47KΩ 47Ω
33KΩ 22Ω
22KΩ 10Ω
1KΩ EXT
470Ω
Not for RCA 3
Load on XLR input
4K7 47Ω
1KΩ 22Ω
470Ω 10Ω
220Ω EXT
100Ω
Not for XLR 2
EXTERNAL LOAD ON PH-1000
The external load for the RCA inputs is taken
from RCA 3 and applied to RCA 2 only. For
the XLR input, it's taken from XLR 2. On the
PH-1000 LINE model, RCA 3 and XLR 2 can
also be used as line inputs. To activate the
external load, adjust the LOAD rotating
the knob until EXT (standing for External
Load) is selected. A warning message will
be displayed to ensure you have no audio
sources connected to the inputs used for
the external load and prevent accidental
damages to your system. Press SAVE to
confirm and continue.
CARTRIDGE SETTINGS
Capacitance

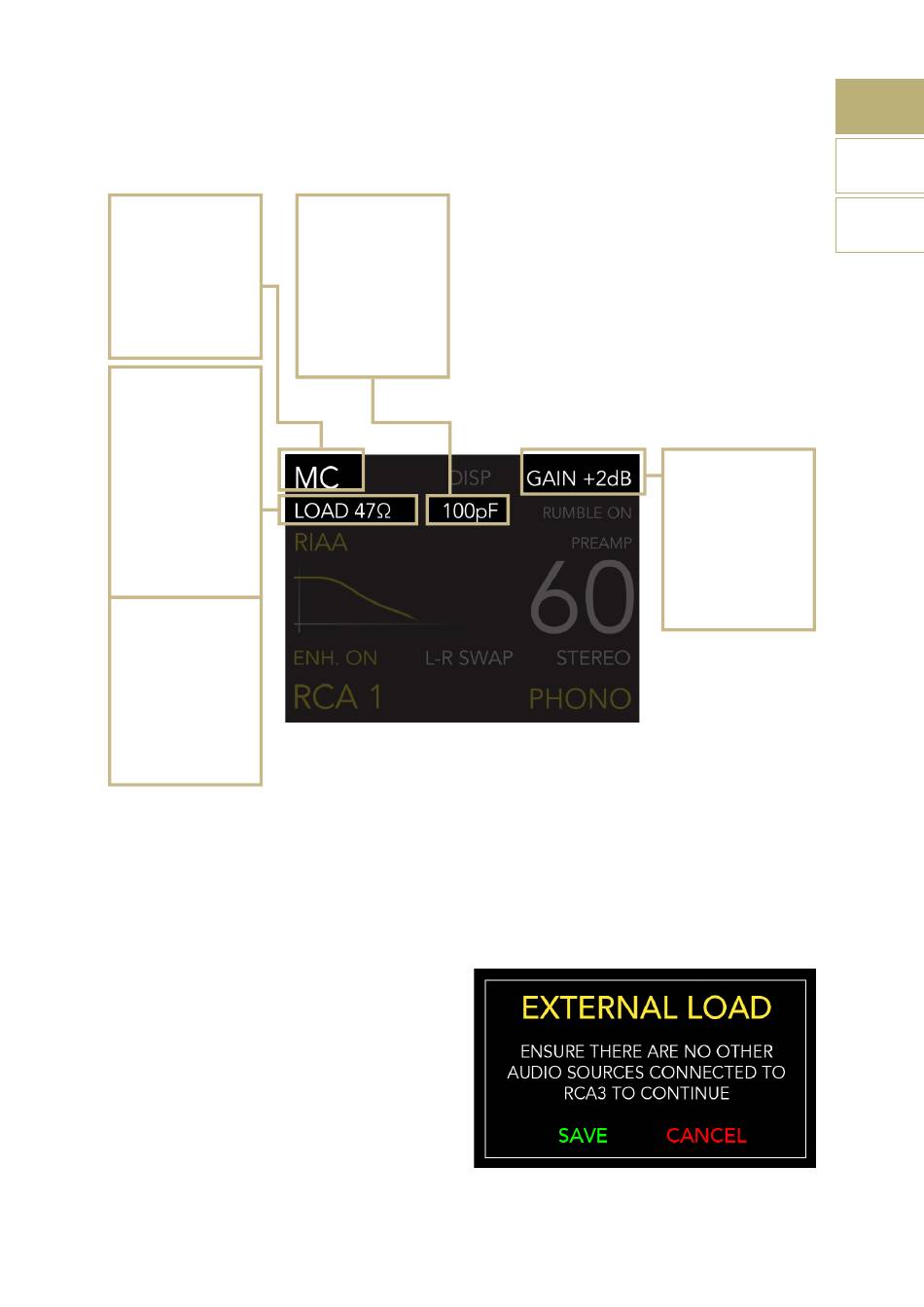

The PH-1000 shows all the settings on the
OFF 330pF
display - there are a number of features
100pF 470pF
that you can adjust to perfectly match your
150pF 1000pF
cartridge and get the best out of your
220pF
records.
Not for RCA 3 and
XLR 2
You can select the type of cartridge (MM or
MC), the gain, the load and the capacitance.
8
Gain
0
±3dB
±6dB
±9dB
Not for RCA 3 and
XLR 2
