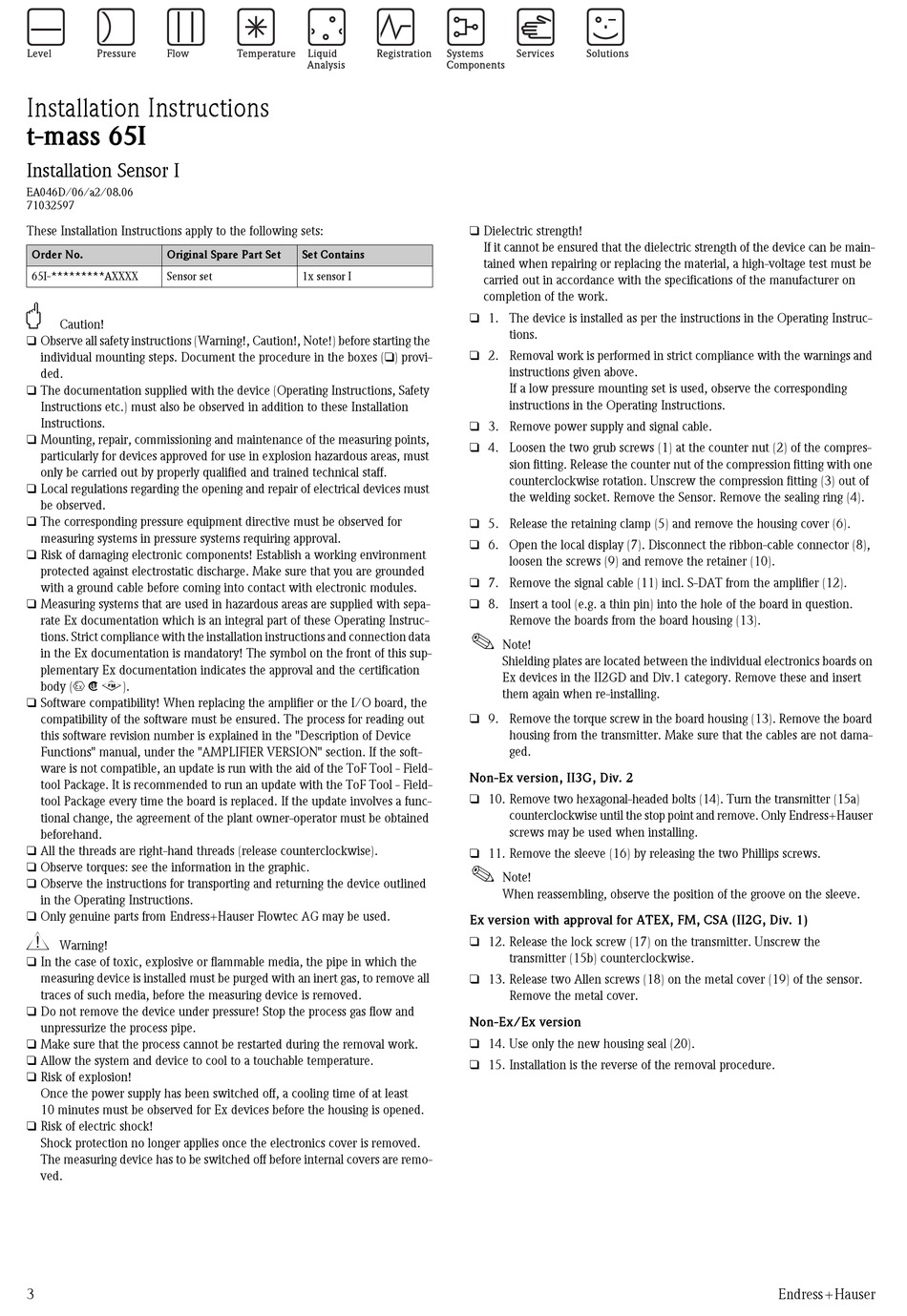

Installation Instructions
t-mass 65I
Installation Sensor I
EA046D/06/a2/08.06
71032597
These Installation Instructions apply to the following sets:
Order No. Original Spare Part Set
65I-*********AXXXX Sensor set
"
Caution!
❑ Observe all safety instructions (Warning!, Caution!, Note!) before starting the
individual mounting steps. Document the procedure in the boxes (❑) provi-
ded.
❑ The documentation supplied with the device (Operating Instructions, Safety
Instructions etc.) must also be observed in addition to these Installation
Instructions.
❑ Mounting, repair, commissioning and maintenance of the measuring points,
particularly for devices approved for use in explosion hazardous areas, must
only be carried out by properly qualified and trained technical staff.
❑ Local regulations regarding the opening and repair of electrical devices must
be observed.
❑ The corresponding pressure equipment directive must be observed for
measuring systems in pressure systems requiring approval.
❑ Risk of damaging electronic components! Establish a working environment
protected against electrostatic discharge. Make sure that you are grounded
with a ground cable before coming into contact with electronic modules.
❑ Measuring systems that are used in hazardous areas are supplied with sepa-
rate Ex documentation which is an integral part of these Operating Instruc-
tions. Strict compliance with the installation instructions and connection data
in the Ex documentation is mandatory! The symbol on the front of this sup-
plementary Ex documentation indicates the approval and the certification
body (0 1 2).
❑ Software compatibility! When replacing the amplifier or the I/O board, the
compatibility of the software must be ensured. The process for reading out
this software revision number is explained in the "Description of Device
Functions" manual, under the "AMPLIFIER VERSION" section. If the soft-
ware is not compatible, an update is run with the aid of the ToF Tool - Field-
tool Package. It is recommended to run an update with the ToF Tool - Field-
tool Package every time the board is replaced. If the update involves a func-
tional change, the agreement of the plant owner-operator must be obtained
beforehand.
❑ All the threads are right-hand threads (release counterclockwise).
❑ Observe torques: see the information in the graphic.
❑ Observe the instructions for transporting and returning the device outlined
in the Operating Instructions.
❑ Only genuine parts from Endress+Hauser Flowtec AG may be used.
#
Warning!
❑ In the case of toxic, explosive or flammable media, the pipe in which the
measuring device is installed must be purged with an inert gas, to remove all
traces of such media, before the measuring device is removed.
❑ Do not remove the device under pressure! Stop the process gas flow and
unpressurize the process pipe.
❑ Make sure that the process cannot be restarted during the removal work.
❑ Allow the system and device to cool to a touchable temperature.
❑ Risk of explosion!
Once the power supply has been switched off, a cooling time of at least
10 minutes must be observed for Ex devices before the housing is opened.
❑ Risk of electric shock!
Shock protection no longer applies once the electronics cover is removed.
The measuring device has to be switched off before internal covers are remo-
ved.
3
❑ Dielectric strength!
Set Contains
1x sensor I
❑ 1. The device is installed as per the instructions in the Operating Instruc-
❑ 2. Removal work is performed in strict compliance with the warnings and
❑ 3. Remove power supply and signal cable.
❑ 4. Loosen the two grub screws (1) at the counter nut (2) of the compres-
❑ 5. Release the retaining clamp (5) and remove the housing cover (6).
❑ 6. Open the local display (7). Disconnect the ribbon-cable connector (8),
❑ 7. Remove the signal cable (11) incl. S-DAT from the amplifier (12).
❑ 8. Insert a tool (e.g. a thin pin) into the hole of the board in question.
!
❑ 9. Remove the torque screw in the board housing (13). Remove the board
Non-Ex version, II3G, Div. 2
❑ 10. Remove two hexagonal-headed bolts (14). Turn the transmitter (15a)
❑ 11. Remove the sleeve (16) by releasing the two Phillips screws.
!
Ex version with approval for ATEX, FM, CSA (II2G, Div. 1)
❑ 12. Release the lock screw (17) on the transmitter. Unscrew the
❑ 13. Release two Allen screws (18) on the metal cover (19) of the sensor.
Non-Ex/Ex version
❑ 14. Use only the new housing seal (20).
❑ 15. Installation is the reverse of the removal procedure.
If it cannot be ensured that the dielectric strength of the device can be main-
tained when repairing or replacing the material, a high-voltage test must be
carried out in accordance with the specifications of the manufacturer on
completion of the work.
tions.
instructions given above.
If a low pressure mounting set is used, observe the corresponding
instructions in the Operating Instructions.
sion fitting. Release the counter nut of the compression fitting with one
counterclockwise rotation. Unscrew the compression fitting (3) out of
the welding socket. Remove the Sensor. Remove the sealing ring (4).
loosen the screws (9) and remove the retainer (10).
Remove the boards from the board housing (13).
Note!
Shielding plates are located between the individual electronics boards on
Ex devices in the II2GD and Div.1 category. Remove these and insert
them again when re-installing.
housing from the transmitter. Make sure that the cables are not dama-
ged.
counterclockwise until the stop point and remove. Only Endress+Hauser
screws may be used when installing.
Note!
When reassembling, observe the position of the groove on the sleeve.
transmitter (15b) counterclockwise.
Remove the metal cover.
