Seite 2

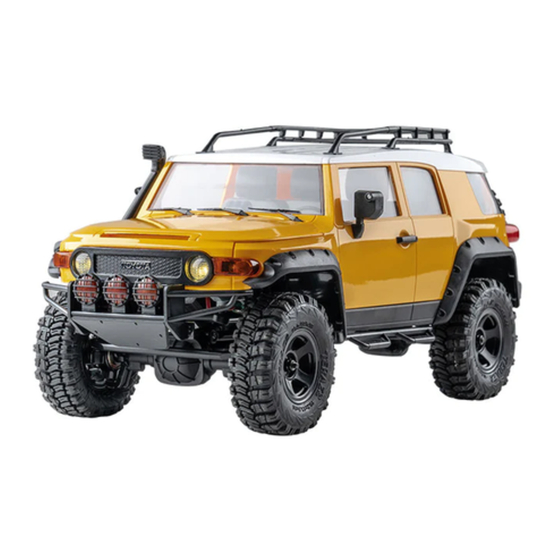

Introduction The all-new FMS 1:18 Cruiser perfectly captures essence of the original design of Land Cruiser design while boldly evolved to a new style of "Be Pioneer, Go Adventure" style. FMS 1:18 Cruiser, as an officially licensed detailed scale replica, also represents a strengthened off-road vehicle with splendid realistic details, from widened wheel-brows on both sides, right waders, to heavy-duty front wading bumper;...
Seite 3
A/B Mode switch key Throttle trim + (TH TRIM +) mode A / light control switch 1 mode B Throttle trim - (TH TRIM -) mode A / light control switch 2 mode B Re-set button(F.Reset)Mode A Channel 6 (reserved) Steering Trim+(ST TRIM+)Mode A Steering wheel [10]...
If the transmitter does not receive any command, it will give an alarm Emitter: forget reminder after 10 minutes and enter sleep mode after 2 minutes When the transmitter does not match the receiver, the indicator light Transmitter: frequency alert of the transmitter keeps flashing Transmitter: no frequency matching The indicator light of the transmitter flashes slowly and makes a sound...
Seite 5
Warnings This vehicle is not intended for those under 14 years of age without proper adult supervision. It is not a toy!Failure to operate or maintain this vehicle in a safe manner can result in bodily harm. Replace damaged components with original factory-parts. Pay special attention to the polarity of all vehicle wiring.
Seite 6
Instructions After setting up, follow the instructions below to operate the system. 1. Automatic code matching (the transmitter and receiver have been successfully coded before leaving the factory.) If you need to replace another transmitter or receiver, please follow the following steps to code: 1.
Throttle stick position Neutral point Top point of forward direction Top point of backward direction Operating the vehicle Step 1: turn on the transmitter, the headlamp of the transmitter will flash and enter the frequency matching mode. Step 2: turn on the receiver switch, the headlight will flash and enter the frequency matching mode. Step 3: when the transmitter and receiver are successful in frequency up, the front lights of the transmitter will be on for a long time, and the front lights of the vehicle will be off.
Seite 8
Always charge LiPo batteries on non-flammable, heat-resistant surfaces. Always use a LiPo-safe bag or container while charging. Do not allow LiPo cells to overheat at any time.Cells which reach greater than 140 Fahrenheit(60°C) will usually become damaged and will catch fire. Do not charge the LiPo pack while it is still in the model.
Dongguan City of China 523810. declare under our responsibility that the product: Type of Equipment: Driving System & 2.4GHz Control System Brand Name: FMS Compatiable for cars: 1:18 FJ CRUISER Equipment Model: 11806 to which this declaration relates is in conformity with the essential requirements and other relevant require- ments of the Directive 2014/53/EU, EMC Directive 2014/30/EU, EMC Directive 2014/53/EU, FCC Indentifier...
Seite 11
Introduction Der brandneue FMS 1:18 Cruiser fängt die Essenz des ursprünglichen Designs des Land Cruiser perfekt ein und wurde nach dem "Be Pioneer, Go Adventure"-Stil weiterentwickelt Der FMS 1:18 Cruiser ist eine offiziell lizenzierte, detailgetreue Nachbildung eines verstärkten Geländewagens mit herrlich realistischen Details.
Seite 12
A/B Modus-Schalttaste Drosseltrimmung + (TH TRIM +) Modus A / Lichtschalter 1 Modus B Reset-Taste(F.Reset)Modus A Drosseltrimmung + (TH TRIM +) Modus A / Lichtschalter 2 Modus B Kanal 6 (belegt) Lenkung Trim+(ST TRIM+)Modus A [10] Steering wheel Lenkung Trim-(ST TRIM-)Modus A Power Switch [11] Throttle trigger...
Wenn der Sender keinen Befehl empfängt, gibt er nach 10 Minuten Sender: Erinnerung vergessen einen Alarm aus und geht nach 2 Minuten in den Ruhemodus über When the transmitter does not match the receiver, the indicator light of Sender: Frequenzwarnung the transmitter keeps flashing Sender: keine Frequenzanpassung + Die Kontrollleuchte des Senders blinkt langsam und gibt einen Ton von...
Seite 14
Warnhinweise Dieses Fahrzeug ist nicht für Personen unter 14 Jahren ohne angemessene Aufsicht von Erwachsenen bestimmt. Wenn Sie dieses Fahrzeug nicht in einer sicheren Weise betreiben oder warten, kann dies zu körperlichen Schäden führen. Ersetzen Sie beschädigte Teile durch Original-Ersatzteile. Achten Sie besonders auf die Polarität der gesamten Fahrzeugverkabelung.
Seite 15
Einschalten 1.Gehen Sie wie folgt vor, um den Sender einzuschalten: 1. Vergewissern Sie sich, dass die Batterie vollständig geladen und richtig eingesetzt ist.; 2. Schalten Sie den Schalter auf die Position [ON]. Wenn der Sender eingeschaltet ist, leuchtet die R.LED.; 3.
Gasstellung Neutral Vorwärts Rückwärts Einschalten des Fahrzeugs Schritt Schritt 1: Schalten Sie den Sender ein, der Scheinwerfer des Senders blinkt und wechselt in den Frequenzan- passungsmodus. Schritt 2:Schalten Sie den Empfänger ein, der Scheinwerfer blinkt und wechselt in den Frequenzanpassungsmodus on for a long time, and the front lights of the vehicle will be off.
Tipps für LiPo Batterien •Laden Sie LiPo-Akkus immer auf nicht entflammbaren, hitzebeständigen Oberflächen. • Verwenden Sie zum Laden immer einen LiPo-sicheren Beutel oder Behälter. Erlauben Sie den LiPo-Zellen zu keiner Zeit, sich zu überhitzen: Zellen, die eine Temperatur von mehr als 60°C (140 Fahrenheit) erreichen, werden normaler- weise beschädigt und fangen Feuer.
Dongguan City of China 523810. erklären unter unserer Verantwortung, dass das Produkt: Art der Ausrüstung: Antriebssystem und 2,4-GHz-Steuersystem Markenname: FMS Kompatibel für Fahrzeuge: 1:18 FJ CRUISER Ausrüstung Modell: 11806 auf das sich diese Erklärung bezieht, mit den grundlegenden Anforderungen und anderen einschlägigen Anforderungen übereinstimmt.
Seite 20
Introduction Le tout nouveau Cruiser 1/18 de FMS capture parfaitement l'essence de la conception originale du Land Cruiser tout en évoluant audacieusement vers un nouveau style de style "Soyez un pionnier, partes à l'aventure". Le Cruiser 1/18 FMS, réplique à l'échelle détaillée sous licence officielle, est également un véhicule tout-terrain renforcé...
Seite 21
Bouton Fonction Mode A/B et explications Mode A F.Reset F.Reset Mode A Mode A Mode B REV / ST Angle ST Angle ST Angle ST Angle ST Angle Mode A ST TRIM+ ST TRIM- ST TRIM+ ST TRIM- Mode A TH TRIM+ TH TRIM- TH TRIM+...
Seite 22
• OFF OFF OFF OFF OFF • • OFF OFF • • • OFF OFF OFF OFF OFF OFF • OFF Mise en place des piles de l'émetteur Battery Type: AAA Mise en place 1. Open the battery compartment cover. 2.
Avertissements • Ce véhicule n’est pas conçu pour une utilisation par des personnes de moins de 14 ans sans surveillance par un adulte. Ce n’est pas un jouet ! Ne pas utiliser ou entretenir ce véhicule en sécurité peut provoquer des blessures. •...
Seite 24
Instructions pour l'appairage Après la préparation, suivez ces instructions pour utiliser le système. 1. Appairage automatique (l'émetteur et le récepteur ont été appairés avant que quitter l'usine). Si vous avez besoin de remplacer soit l'émetteur, soit le récepteur, suivez les étapes ci-dessous pour refaire l'appairage: 1.
Positions de la gâchette des gaz Position neutre A fond en marche avant A fond en marche arrière Utilisation du véhicule ETAPE 1: Allumez l'émetteur. La LED avant de l'émetteur clignote et entre en mode d'appairage automatique. ETAPE 2: Allumez l'interrupteur du récepteur, les phares vont clignoter et entrer en mode d'appairage. ETAPE 3: Quand l'émetteur et le récepteur sont appairés, les LEDs à...
Seite 26
Conseils pour les batteries LiPo • • Utilisez toujours un sac de charge pour LiPo ou un container durant la charge. Ne laissez jamais °C (140 °F) sont en général endommagés et vont prendre feu. • Ne chargez jamais les batteries LiPo à l’intérieur du modèle. Ne chargez pas et ne stockez pas de batteries à...
Pneu Teraz 19,2 x 13,5 x 56 C2069 Palonnier de servo C2046 Pièces plastiques jantes 1/18 style STAR C2104 Vitre de rétroviseur C2052 Batterie FMS LiPo 2S 380 mAh C2075 Axe de sortie AV 1/18 C2051 Chargeur USB FMS C2076 Pièces plastiques boite de vitesse C2049...
Dongguan City of China 523810. Déclarons sous notre responsabilité que le produit: Type d'équipement: Ensemble de pilotage et de contrôle 2,4 GHz Marque: FMS Compatible pour voitures: 1:18 FJ CRUISER Equipment Model: 11806 auquel cette déclaration se rapporte est conforme aux exigences essentielles et aux autres exigences pertinentes de la directive 2014/53/UE, de la directive EMC 2014/30/UE, de la directive EMC 2014/53/UE, de l'identificateur FCC N4ZMG400, de la directive européenne RoHS 2011/ 65/UE et directive du conseil...
