Locator features
1. LCD.
2. Keypad.
3. Battery compartment (USB connector inside)
Note: The RD5000 is supplied with a rechargeable battery pack. It is possible to
use alkaline or NiMh batteries by purchasing the optional battery compartment
from Radiodetection.
. Accessory socket.
5. Headphone jack.
Locator keypad
. Power key: Switches the unit on and off. Toggles between Guidance Mode
and Signal Strength Mode.

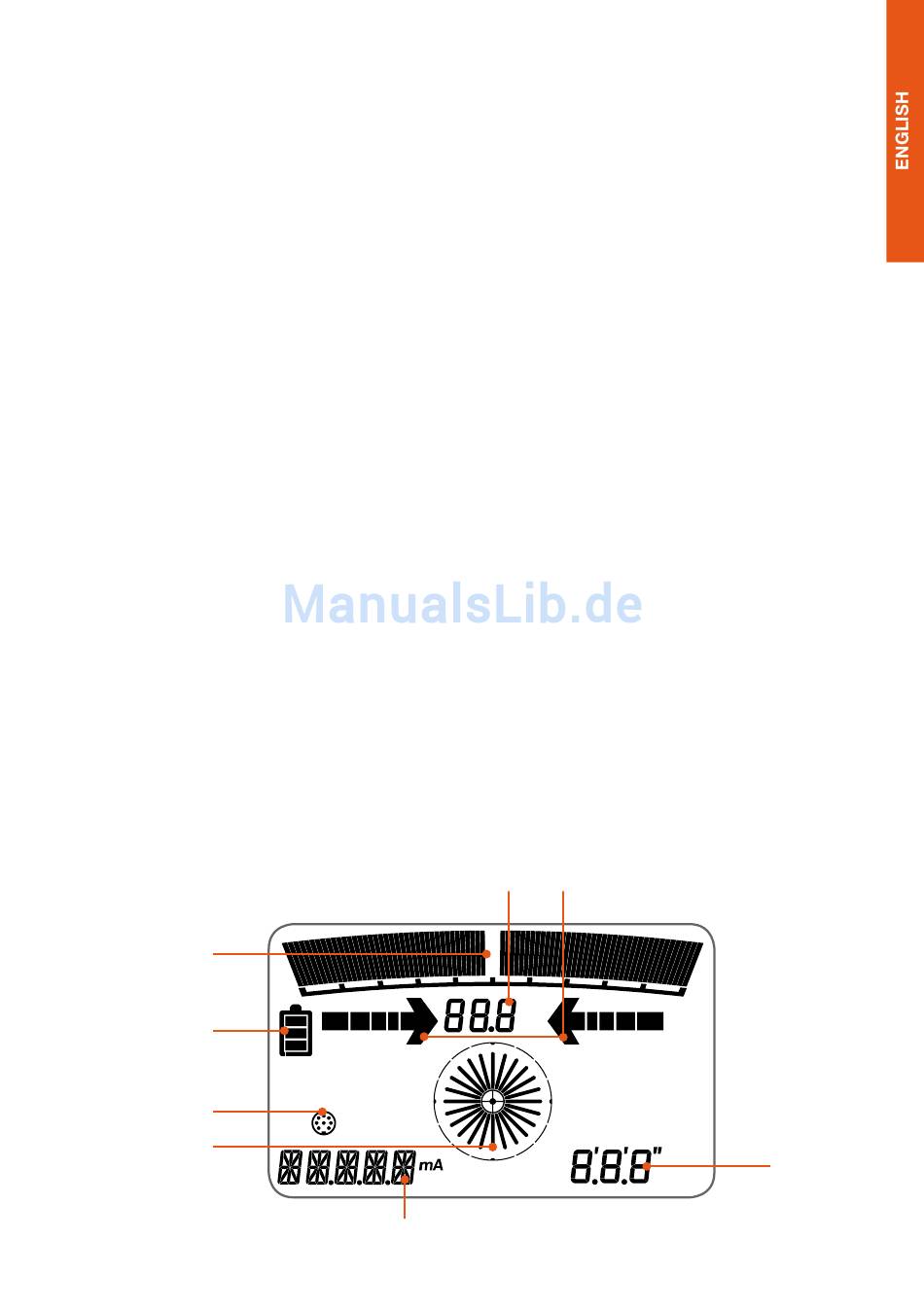

Locator display icons
. Target position indicator: Indicates position of locator relative to target line.
. Signal strength: Numerical indication of signal strength.
. (Proportional) Left/Right arrows: Indicates the location of the target relative
to the locator.
10. Battery icon: Indicates the battery level.
11. Accessory indicator: Indicates when an accessory is connected.
12. Compass: Displays the direction of the cable or pipe relative to the locator.
13. Depth: Indication of depth reading.
1. Current: Indication of signal current reading.
7
10
11
12
8 9
14

13
