Figure Two:
Figure Three:
guide the locator towards the target line. The signal strength value will be displayed,
indicating the strength of the signal from the target line. In this position the tone from
the speaker of the locator will be pulsed.
With the aid of the compass, the locator can be positioned in line with the target line
enabling both depth and current readings to be displayed.
As the locator is moved towards the left, the tail on the proportional right arrow will
reduce, the target position indicator will move from the left, towards the centre, the
pulsing tone from the speaker will reduce and the numerical signal strength value
will increase.
Use the proportional arrows, target position indicator and signal strength value to
guide the locator directly over the target line.
Figure Four:

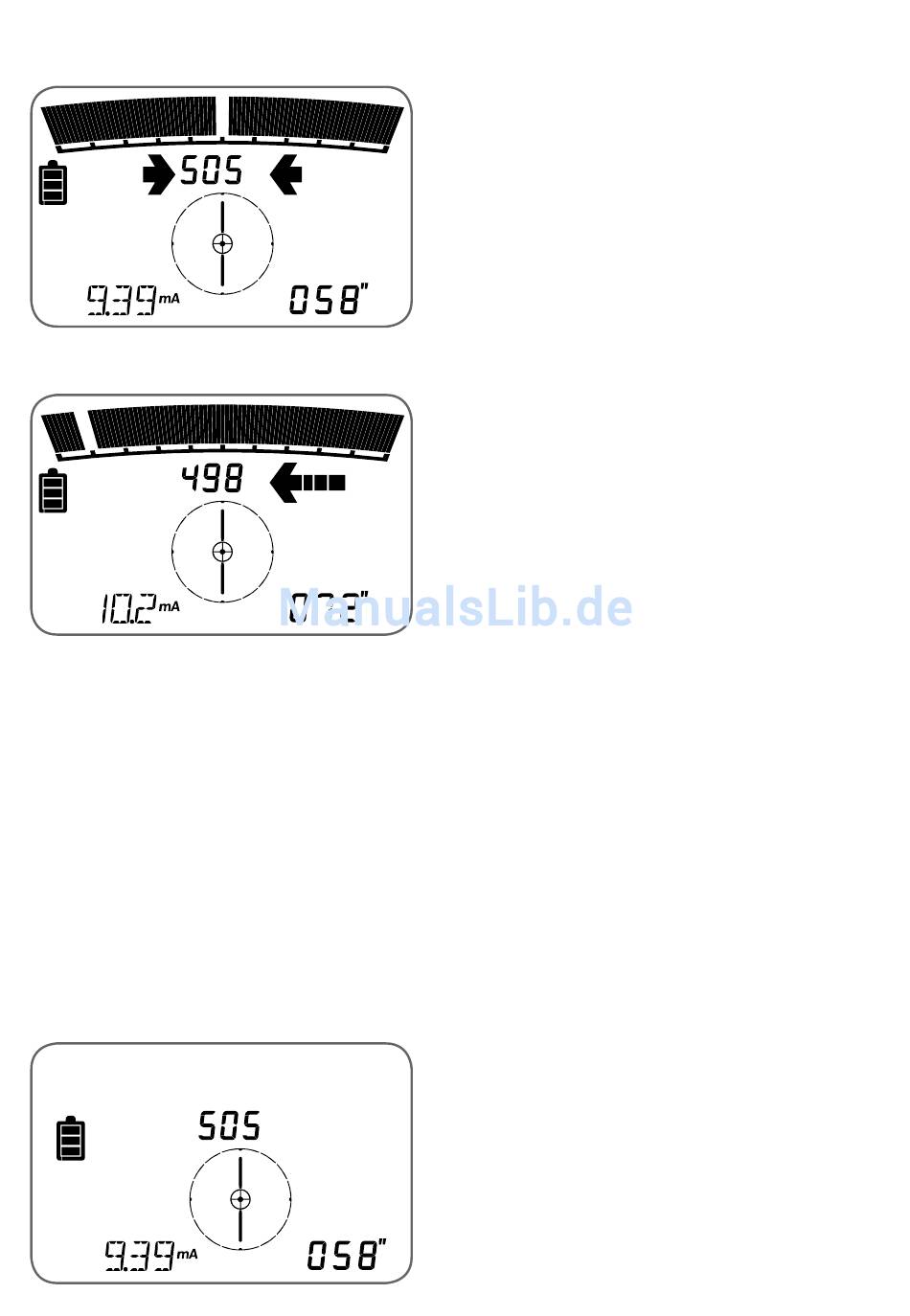

Figure two shows the locator in Guidance
Mode and directly over the target line. In
this position the left and right arrow heads
will be displayed simultaneously, target
position indicator in the centre, the signal
strength value at its maximum, speaker
tone silent and both depth and current
readings at their minimum.
Figure three shows the locator in
Guidance Mode and positioned to the
right of the target line. In this position the
Proportional Right arrow is displayed,
indicating the direction in which the
locator should be moved towards the
target line. The target position indicator
indicates the target positioned to the
left of the locator and can be used to
With the locator powered up, a
momentary press of the On/Off key
will change the mode of operation to
Signal Strength Mode. In this mode, the
compass, signal strength, depth and
current will be available. The proportional
left/right arrows and target position
indicator will not be available. See
figure four.
12
