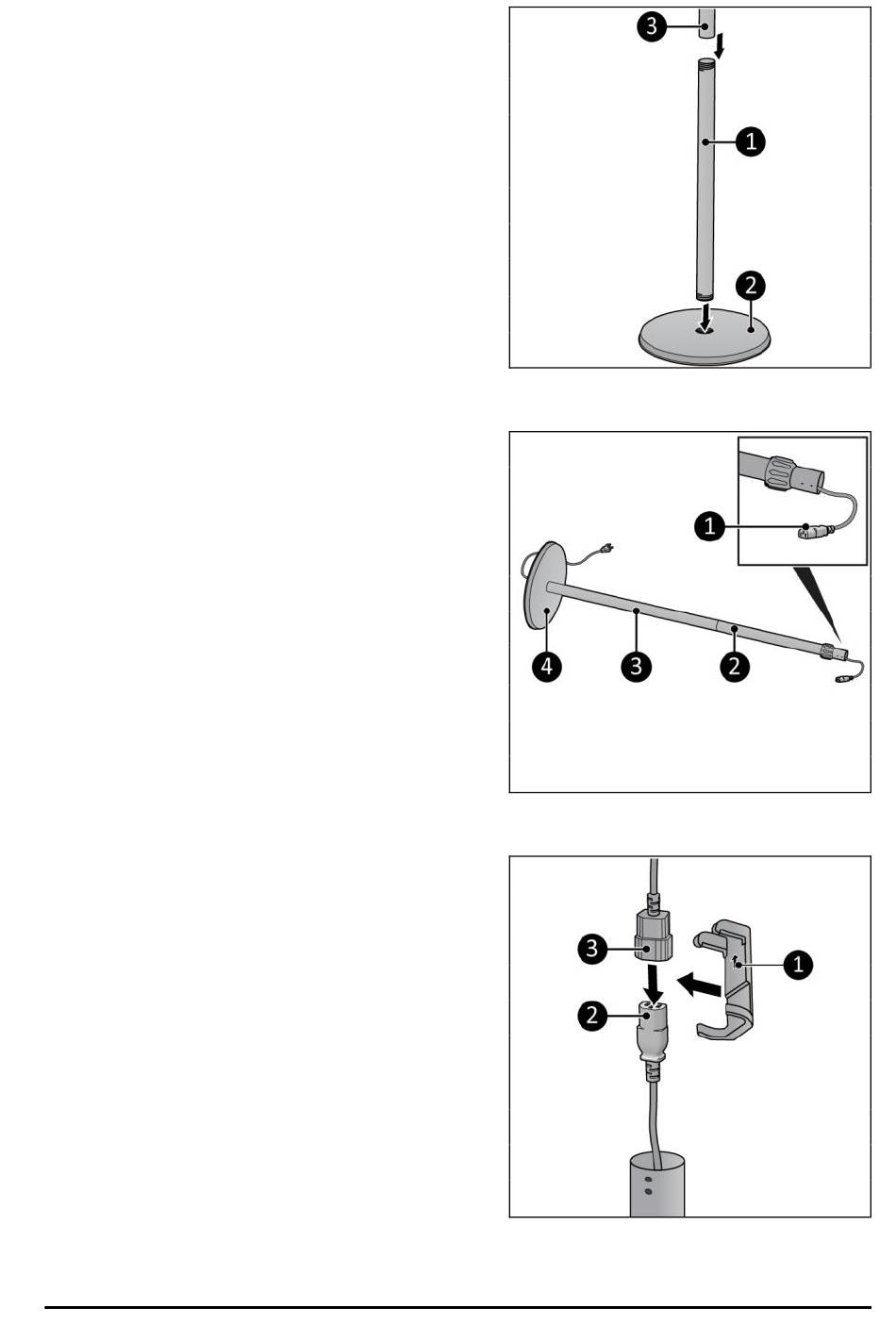

1. Screw the bottom tube (Figure 3, pos. 1) to
the base (Figure 3, pos. 2).
2. Screw the adjustable tube (Figure 3, pos. 3) to
the bottom tube (Figure 3, pos. 1).
3. Place the female plug (Figure 4, pos. 1) of the
power cable through the base (Figure 4, pos.
4), the bottom tube (Figure 4, pos. 3) and the
adjustable tube (Figure 4, pos. 2).
4. Connect the female plug (Figure 5, pos. 2) to
the plug connector of the heating cap (Figure
5, pos. 3).
5. Secure this connection using the clamp
(Figure 5, pos. 1). Make sure the arrow points
to the heating cap.
