Table 1-2 provides a description of each peripheral connector on the Stylistic LT P-600 pen tablet.
Each of the illustrated icons is printed on the pen tablet case.
Connector/
Peripheral
DC input
connector
USB Port
PCMCIA
CardBus slot
Microphone
jack
Headphone
jack
IrDA/FIR port
Modem
Charging
Contacts
Mini-dock
†
port

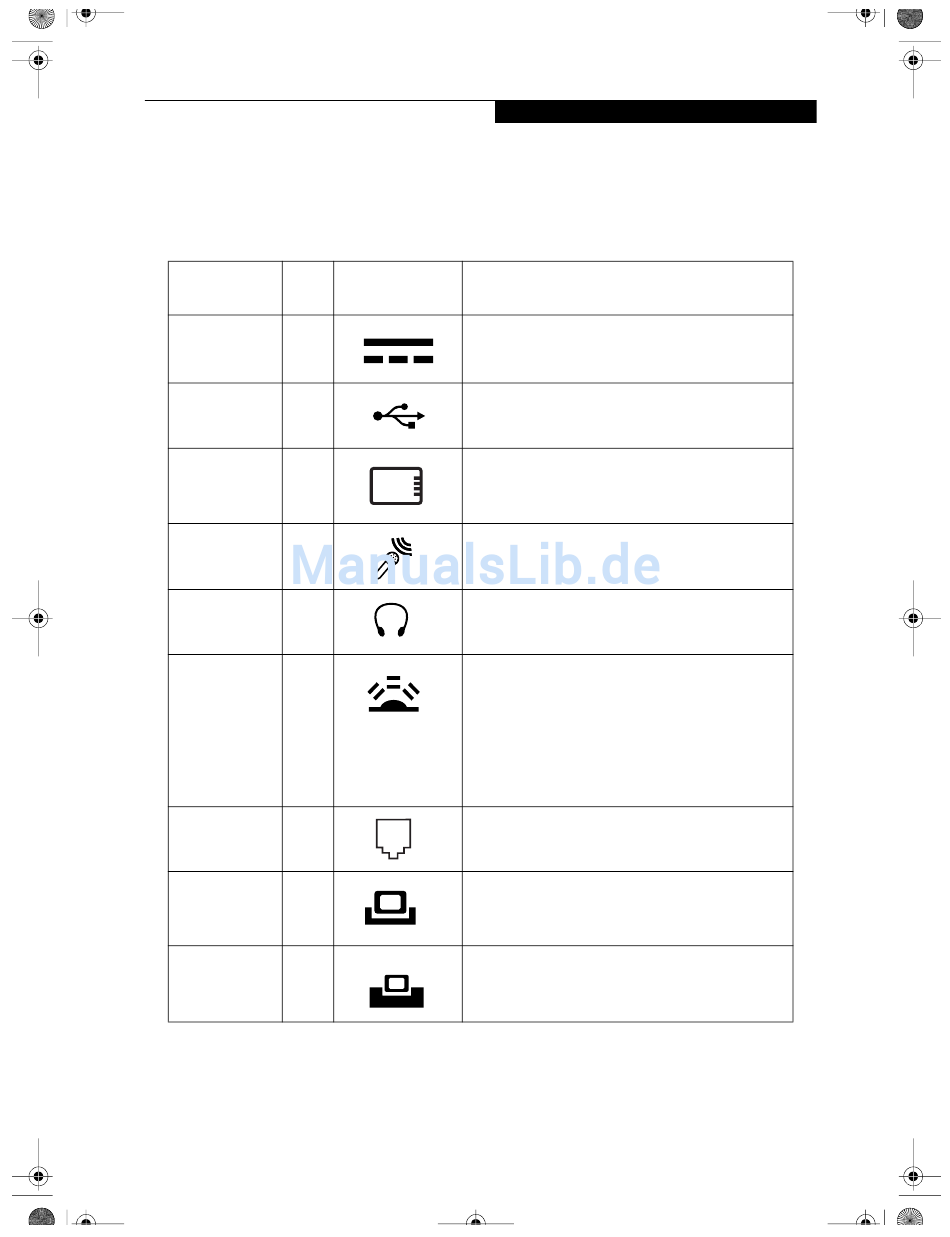

Table 1-2 Peripheral Connectors/Interfaces
Fig.
Pen Tablet Icon
Ref.
1-4
1-4
1-4
1-5
1-5
1-5
1-4
1-6
1-6
G e t t i n g S t a r t e d
Purpose
Connect an external power source such as the AC
adapter or auto adapter.
Connect Universal Serial Bus-compliant devices to
the pen tablet. USB (B) port is located on the
optional Stylistic LT P-600 mini-dock.
Install a Type I or Type II PC Card.
Connect an external microphone. The internal
microphone is disabled when you plug in an
external microphone.
Connect stereo headphones or powered external
speakers. The internal speaker is disabled when
you plug in external headphones or speakers.
An infrared transceiver built into the pen tablet
allows you to communicate with other devices that
are compliant with the IrDA Standard Rev. 1.1.
Effective range for infrared communication is about
3 feet, and within 15 degrees off of center. A clear
line-of-sight path must exist between the IrDA port
on the pen tablet and the IrDA transceiver on the
other device.
Connect a telephone line to the optional internal
modem using a standard RJ-11 telephone plug.
Install the pen tablet in an approved docking
device. The contacts provide DC input.
Connect the Stylistic LT P-600 mini-dock. Refer to
the documentation accompanying the docking
device for more information.
9
